Remove/install brake booster vacuum line - AR43.10-P-0355EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 (except 212.095/098/195/298), 218
| Remove/install | |||
| 1 | Operate the brake pedal several times when the engine is switched off | ||
| 2 | Open engine hood and raise to vertical position | MODEL 212, 218 | |
| MODEL 212 | AR88.40-P-1000EW | ||
| 3 | Remove air filter housing | ENGINE 156, 272, 273 | |
| ENGINE 156 in MODEL 212 | AR09.10-P-1150CMG | ||
| ENGINE 272, 273 in MODEL 212 | AR09.10-P-1150EWS | ||
| 4 | Remove engine cover | ENGINE 642, 651 Engine 642: Ignition switched off. |
|

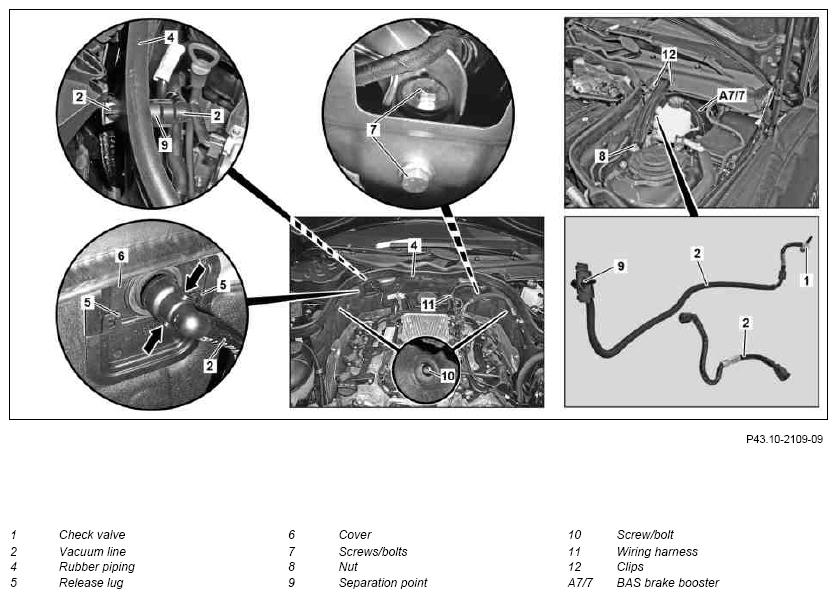

| 5 | Unscrew nut (8) | *BA62.30-P-1006-02G | |
| 6 | Remove clips (12) and take off strut | ||
| 7 | Detach rubber edge strip (4) | ||
| 8 | Unclip release lugs (5) and remove cover (6) with vacuum line (2) upwards | ||
| 9 | Lift cover with wiring harness (11) off partition wall | ||
| 10 | Remove screws/bolts (10) | ||
| 11 | Unscrew screws/bolts (7) and remove bracket | ||
| 12 | Pull vacuum line (2) with check valve (1) out of rubber seal of BAS brake booster (A7/7) | ||
| 13 | Detach vacuum line (2) from engine | ||
| 14 | Remove vacuum line (2) upwards | ||
| 15 | Install in the reverse order | ||
| 16 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA62.30-P-1006-02G | Nut, strut to suspension strut tower | Nm | 30 | 30 |
