Remove/install steering coupling - AR46.10-P-8000EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

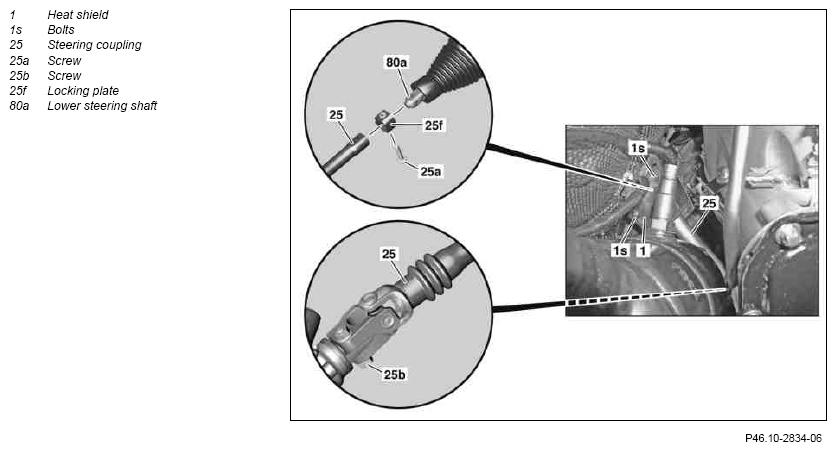

Fig 1: Steering Coupling Remove/Install Components
G09976664Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Deactivate easy entry/exit function Vehicles with code (275) Memory package for electrically adjustable front seats
2 Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device NOTES On a disengaged steering coupling (25) the steering wheel should not be turned because the spiral contact coil will be destroyed.
SPECIAL TOOL Holding device Fig 2
3.1 Remove center and rear section of lower engine compartment paneling Vehicles with gasoline engine AR61.20-P-1105EW
3.2 Remove center and rear bottom sections of soundproofing Vehicles with diesel engine AR94.30-P-5300EW
4 Unscrew bolts (1s) and remove heat shield (1) IMPORTANT If necessary.
5 Detach steering coupling (25) from lower steering shaft (80a); to do so, remove bolt (25a) TORQUE SPECIFICATION *BA46.10-P-1001-01M
6 Pull the lower steering shaft (80a) upward to extract it from the steering coupling (25.) NOTES Do not use force (hammer blows, excessive leverage) as the lower steering shaft (80a) is sensitive to lateral forces.
7 Remove bolt (25b) and pull steering coupling (25) off rack-and-pinion steering INSTALLATION IMPORTANT Turn rack-and-pinion steering to center position and fit steering coupling (25). AR46.20-P-0600-01CW
TORQUE SPECIFICATION *BA46.10-P-1002-01M
8 Detach locking plate (25f) from steering coupling (25) INSTALLATION IMPORTANT Insert a new self-locking nut in the existing locking plate (25f). The locking plate (25f) is not available as a replacement part.
9 Install in the reverse order
STEERING SHAFT

Number Designation Model 212 Model 218
BA46.10-P-1001-01M Self-locking nut, steering coupling to steering shaft Nm 30 30
BA46.10-P-1002-01M Self-locking bolt, steering coupling to rack-and-pinion steering Nm 24 24
Fig 2: Identifying Holding Device (129 589 01 21 00)
G09976665Courtesy of MERCEDES-BENZ USA
