Detach, connect front axle electrical distributor connector - AR33.10-P-0100-06CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218

Shown on model 204 with steel suspension

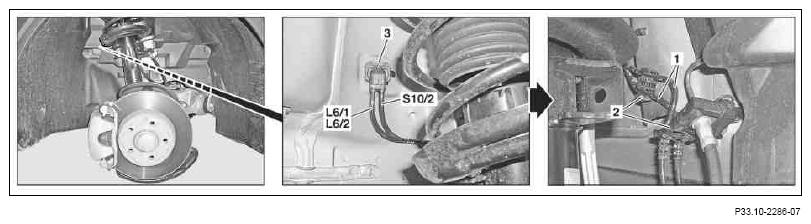

Fig 1: Connecting Front Axle Electrical Distributor Connector - Shown On Model 204

Courtesy of MERCEDES-BENZ USA

Press spring latch (3) on front axle electrical distributor downwards and pull left front-axle rpm sensor connector (L6/1) or right front-axle rpm sensor connector (L6/2) and right front brake wear sensor connector (S10/2) out of the front axle electrical distributor.
The right front brake wear sensor connector (S10/2) is only fitted to the front axle electrical distributor on the right side of the vehicle.

For model 212 with code (489) AIRmatic (air suspension with continuous damper adjustment) or code (488) Steel/air suspension and for model 207 with code (483) ADVANCED AGILITY package: The lines for the right front brake wear sensor (S10/2) and the right front axle damping valve unit are combined to form a single line on the right.

The left front axle damping valve unit line is plugged onto the left front axle electrical distributor connector.
Unclip electrical feed lines (1) from line holders (2) and place to one side.
