Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks - AR83.30-P-1760CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 204, 207, 212, 218

MODIFICATION NOTES

28.7.14	Full amount refrigerant compressor	Model 212.095/098/195/298	BF83.55-P-1001-01J
28.7.14	Ask for additional oil capacity after sudden drop in draining the system (z. B. line cracked)	Model 212.095/098/195/298	BF83.55-P-1002-01J
28.7.14	Ask for additional oil capacity after renewing capacitor	Model 212.095/098/195/298	BF83.55-P-1003-01J
28.7.14	Ask for additional oil capacity after Renewing evaporator	Model 212.095/098/195/298	BF83.55-P-1004-01J
28.7.14	Ask for additional Ol full amount after renewing suction line	Model 212.095/098/195/298	BF83.55-P-1005-01J
28.7.14	Ask for additional Ol full amount after renewing pressure line	Model 212.095/098/195/298	BF83.55-P-1006-01J
28.7.14	Additional oil capacity by renewing refrigerant compressor	Model 212.095/098/195/298	BF83.55-P-1007-01J
28.7.14	Additional oil capacity at detectable leakage	Model 212.095/098/195/298	BF83.55-P-1008-01J
28.7.14	Additional oil capacity by renewing dryer cartridge	Model 212.095/098/195/298	BF83.55-P-1009-01J

Shown on model 204.0 with engine 271

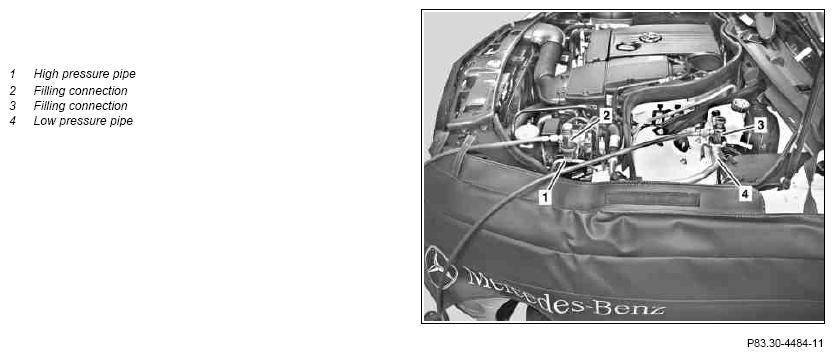

Fig 1: High/Low Pressure Pipe And Filling Connection

G09977782

REFER TO CAPACITIES & SPECIFICATIONS

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

FLUID SPECIFICATION

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant.	Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Draining
1	Connect air conditioning service unit to filler connection (2) of high-pressure line (1)	When operating the air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer. Air conditioner service unit R134a
2	Connect air conditioning service unit at filler connection (3) of low-pressure line (4)
3	Suction off refrigerant
4	Note down quantity of extracted refrigerant as well as compressor oil
5	Install new desiccant cartridge	If required.
		MODEL 166	AR83.30-P-6520GQ
		MODEL 204	AR83.30-P-6521CW
		MODEL 207 MODEL 212 (except 212.074/075/076/077/092/274/275/276/277/292)	AR83.30-P-6521EW
		MODEL 212.074/075/076/077/092/274/275/276/277/292	AR83.30-P-6521EX
		MODEL 218	AR83.30-P-6521EL
	Evacuate
6	Clean refrigerant and evacuate refrigerant circuit
7	Conduct vacuum test using A/C service unit
	Filling
8	Add new compressor oil to the refrigerant circuit according to the oil filling quantity noted during extraction
	Compressor oils (specification 362.0)		MB 362.0 compressor oil A 001 989 08 03
		Only use the approved compressor oil. If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period. Daimler AG reserves the right to perform reexaminations. Correct oil filling quantity in refrigerant circuit. In the event of an incorrectly measured oil filling quantity, the refrigerant compressor may be damaged. Depending on the repair case, the oil filling quantity may need to be adjusted accordingly.
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1001-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1002-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1003-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1004-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1005-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1006-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1007-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1008-01J
		MODEL 204 MODEL 207 MODEL 212 (except 212.095/098/195/298) MODEL 212.095/098/195/298 MODEL 218	*BF83.55-P-1009-01J
		MODEL 212.095/098/195/298	*BF83.55-P-1010-01J
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1001-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1002-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1003-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1004-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1005-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1006-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1007-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1008-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1009-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1010-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1011-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1012-01I
		MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.55-P-1013-01I
9	Charge air conditioning system	MODEL 166 with CODE 582 (Rear air conditioner) MODEL 166 without CODE 582 (Rear air conditioner)	*BF83.00-P-1001-01F
9	Charge air conditioning system	MODEL 204, 207 MODEL 212 with ENGINE 156, 157 MODEL 212 with ENGINE 271, 272, 273, 274, 276, 278, 642, 651 MODEL 218 with ENGINE 157 MODEL 218 with ENGINE 276, 278, 642, 651	*BF83.00-P-1001-01I
	Check
10	Perform pressure test using A/C service unit	In the event of a pressure drop during the pressure test: ↓ Check air conditioning system for leakage.
		MODEL 204, 207, 212 (except 212.095/098/195/298), 218	AR83.30-P-1761UV
		MODEL 166.0/8	AR83.30-P-1761GQ
		MODEL 212.095/098/195/298	AR83.30-P-1761PS
11	Detach air conditioning service unit from filler connection (2) of high-pressure line (1)
12	Detach air conditioning service unit from filler connection (3) of low-pressure line (4)

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			MODEL 166 except CODE 582	MODEL 166 with CODE 582
BF83.00-P-1001-01F	Filling capacity for air conditioning/automatic air conditioning	Refrigerant R134 a	g	1050	1300
BF83.00-P-1001-01F		Specification		MB 361.0 refrigerant R 134a A 000 989 03 48	MB 361.0 refrigerant R 134a A 000 989 03 48

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			MODEL 204 (except 204.077/277/377)	MODEL 204.077/277/377
BF83.00-P-1001-01I	Filling capacity of air conditioning/automatic air conditioning	Refrigerant R134 a	g	590	640
BF83.00-P-1001-01I		See		MB 361.0 refrigerant R 134a A 000 989 03 48	MB 361.0 refrigerant R 134a A 000 989 03 48

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			MODEL 207	MODEL 212 (except 212.074/075/076/077/092/095/098/195/274/275/276/277/292/298)
BF83.00-P-1001-01I	Filling capacity of air conditioning/automatic air conditioning	Refrigerant R134 a	g	590	590
BF83.00-P-1001-01I		See		MB 361.0 refrigerant R 134a A 000 989 03 48	MB 361.0 refrigerant R 134a A 000 989 03 48

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			MODEL 212.074/075/076/077/092/274/275/276/277/292	MODEL 212.095/098/195/298
BF83.00-P-1001-01I	Filling capacity of air conditioning/automatic air conditioning	Refrigerant R134 a	g	640	690
BF83.00-P-1001-01I		See		MB 361.0 refrigerant R 134a A 000 989 03 48	MB 361.0 refrigerant R 134a A 000 989 03 48

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 218 except engine 157	MODEL 218 with ENGINE 157
BF83.00-P-1001-01I	Filling capacity of air conditioning/automatic air conditioning	Refrigerant R134 a	g	590	640
BF83.00-P-1001-01I		See		MB 361.0 refrigerant R 134a A 000 989 03 48	MB 361.0 refrigerant R 134a A 000 989 03 48

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1001-01I	Refrigerant compressor filling quantity	Compressor oil	cm³	120	160
BF83.55-P-1001-01I	Refrigerant compressor filling quantity	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1001-01J	Filling quantity - refrigerant compressor	Compressor oil	cm³	120	120
BF83.55-P-1001-01J	Filling quantity - refrigerant compressor	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1001-01J	Filling quantity - refrigerant compressor	Compressor oil	cm³	120	120
BF83.55-P-1001-01J	Filling quantity - refrigerant compressor	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1001-01J	Filling quantity - refrigerant compressor	Compressor oil	cm³	120
BF83.55-P-1001-01J	Filling quantity - refrigerant compressor	Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1002-01I	Additional oil filling quantity following sudden draining of system (e.g. line ruptured)	Compressor oil	cm³	40	40
BF83.55-P-1002-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1002-01J	Additional oil filling quantity after sudden emptying of system (e.g. line ruptured)	Compressor oil	cm³	40	40
BF83.55-P-1002-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1002-01J	Additional oil filling quantity after sudden emptying of system (e.g. line ruptured)	Compressor oil	cm³	40	40
BF83.55-P-1002-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1002-01J	Additional oil filling quantity after sudden emptying of system (e.g. line ruptured)	Compressor oil	cm³	40
BF83.55-P-1002-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1003-01I	Additional oil filling quantity after replacing condenser	Compressor oil	cm³	20	20
BF83.55-P-1003-01I	Additional oil filling quantity after replacing condenser	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1003-01J	Additional oil filling quantity after replacement of condenser	Compressor oil	cm³	20	20
BF83.55-P-1003-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1003-01J	Additional oil filling quantity after replacement of condenser	Compressor oil	cm³	20	20
BF83.55-P-1003-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1003-01J	Additional oil filling quantity after replacement of condenser	Compressor oil	cm³	20
BF83.55-P-1003-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1004-01I	Additional oil filling quantity after replacing evaporator	Compressor oil	cm³	40	40
BF83.55-P-1004-01I	Additional oil filling quantity after replacing evaporator	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1004-01J	Additional oil filling quantity after replacement of evaporator	Compressor oil	cm³	40	40
BF83.55-P-1004-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1004-01J	Additional oil filling quantity after replacement of evaporator	Compressor oil	cm³	40	40
BF83.55-P-1004-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1004-01J	Additional oil filling quantity after replacement of evaporator	Compressor oil	cm³	40
BF83.55-P-1004-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1005-01I	Additional oil filling quantity after replacing fluid reservoir	Compressor oil	cm³	10	10
BF83.55-P-1005-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1005-01J	Additional oil filling quantity after replacement of suction line	Compressor oil	cm³	20	20
BF83.55-P-1005-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1005-01J	Additional oil filling quantity after replacement of suction line	Compressor oil	cm³	20	20
BF83.55-P-1005-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1005-01J	Additional oil filling quantity after replacement of suction line	Compressor oil	cm³	20
BF83.55-P-1005-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1006-01I	Additional oil filling quantity after replacing low-pressure line	Compressor oil	cm³	10	10
BF83.55-P-1006-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1006-01J	Additional oil filling quantity after replacement of pressure line	Compressor oil	cm³	20	20
BF83.55-P-1006-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1006-01J	Additional oil filling quantity after replacement of pressure line	Compressor oil	cm³	20	20
BF83.55-P-1006-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1006-01J	Additional oil filling quantity after replacement of pressure line	Compressor oil	cm³	20
BF83.55-P-1006-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1007-01I	Additional oil filling quantity after replacing high-pressure line	Compressor oil	cm³	10	10
BF83.55-P-1007-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1007-01J	Additional oil filling quantity after replacement of refrigerant compressor	Compressor oil	cm³	20	20
BF83.55-P-1007-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1007-01J	Additional oil filling quantity after replacement of refrigerant compressor	Compressor oil	cm³	20	20
BF83.55-P-1007-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1007-01J	Additional oil filling quantity after replacement of refrigerant compressor	Compressor oil	cm³	20
BF83.55-P-1007-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1008-01I	Additional oil filling quantity after replacing refrigerant compressor	Compressor oil	cm³	20	20
BF83.55-P-1008-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1008-01J	Additional oil filling quantity with detectable leakage	Compressor oil	cm³	20	20
BF83.55-P-1008-01J	Additional oil filling quantity with detectable leakage	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1008-01J	Additional oil filling quantity with detectable leakage	Compressor oil	cm³	20	20
BF83.55-P-1008-01J	Additional oil filling quantity with detectable leakage	Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1008-01J	Additional oil filling quantity with detectable leakage	Compressor oil	cm³	20
BF83.55-P-1008-01J	Additional oil filling quantity with detectable leakage	Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1009-01I	Additional oil filling quantity in case of detectable leakage	Compressor oil	cm³	20	20
BF83.55-P-1009-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 204	MODEL 207
BF83.55-P-1009-01J	Additional oil filling quantity after replacement of desiccant cartridge	Compressor oil	cm³	20	20
BF83.55-P-1009-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 212 (except 212.095/098/195/298)	MODEL 212.095/098/195/298
BF83.55-P-1009-01J	Additional oil filling quantity after replacement of desiccant cartridge	Compressor oil	cm³	20	20
BF83.55-P-1009-01J		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 218
BF83.55-P-1009-01J	Additional oil filling quantity after replacement of desiccant cartridge	Compressor oil	cm³	20
BF83.55-P-1009-01J		Specification		MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1010-01I	Additional oil filling quantity after replacing rear air conditioning evaporator	Compressor oil	cm³	30	30
BF83.55-P-1010-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation		MODEL 212.095/098/195/298
BF83.55-P-1010-01J	Additional oil filling quantity after replacement of high-voltage battery	Compressor oil	10
BF83.55-P-1010-01J		Specification	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1011-01I	Additional oil filling quantity after replacing rear AC lines	Compressor oil	cm³	20	20
BF83.55-P-1011-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1012-01I	Additional oil filling quantity after replacing evaporator (rear compartment)	Compressor oil	cm³	10	10
BF83.55-P-1012-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03

REFRIGERANT COMPRESSOR

Number	Designation			MODEL 166 without CODE 582 (Rear air conditioner)	MODEL 166 with CODE 582 (Rear air conditioner)
BF83.55-P-1013-01I	Additional filling capacity for refrigerant compressor with rear air conditioning	Compressor oil	cm³	30	30
BF83.55-P-1013-01I		Specification		MB 362.0 compressor oil A 001 989 08 03	MB 362.0 compressor oil A 001 989 08 03
