Drain/pour in coolant - AR20.00-P-1142OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 212, 218
MODIFICATION NOTES
| 12.2.14 | Work procedure altered and special tools for electrical vacuum pump and NTKL adaptation, added. | Operation steps 14 to 26 | AR20.00-P-1142-04A |
| 26.9.14 | coolant mixing ratio | BF20.00-P-1001-04A |
Shown on model 212
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Drain off | |||
| 1 | Open engine hood | ENGINE 642 in MODEL 212, 218 | |
| ENGINE 642 in MODEL 212 | AR88.40-P-1000EW | ||

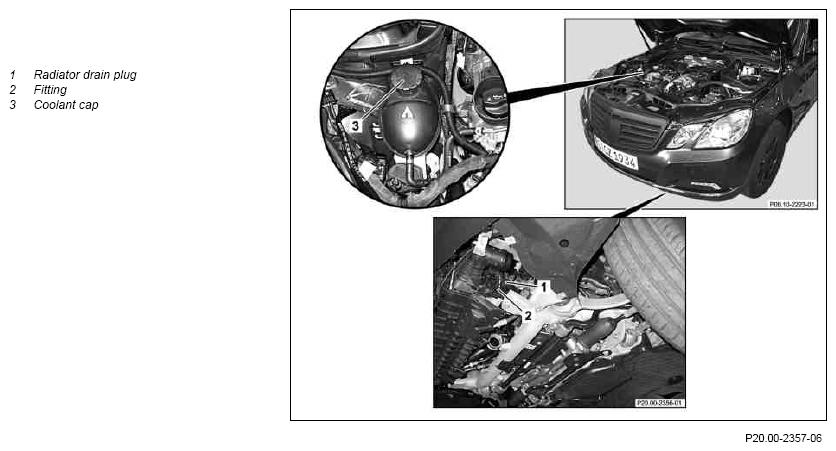

| 2 | Unscrew coolant cap (3) on coolant expansion reservoir | ||
| 3 | Remove front and center bottom section of soundproofing | AR94.30-P-5300EW | |
| 4 | Slide the drain hose on to the left fitting (2) at the radiator | ||
| 5 | Loosen radiator drain plug (1) and drain off coolant. | Only remove radiator drain plug (1) until coolant flows off. Permanent damage to the radiator drain plug (1) will occur otherwise. |
|
| 6 | Tighten radiator drain plug (1) | ||
| 7 | Detach drain hose from fitting (2) | ||
| Pour in | |||
| 8 | Pour in coolant and ventilate engine cooling system | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Anticorrosion/antifreeze agents (Specification 325.0) | Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 | ||
| Coolant specifications | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | ||
| AR20.00-P-1142-04A | |||
| *BF20.00-P-1001-04A | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Check | |||
| 9 | Check engine cooling system for leaktightness | AR20.00-P-1010OMA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine cooling system for proper operation | ||
| 11 | Install front and center bottom section of soundproofing | AR94.30-P-5300EW | |
| 12 | Close engine hood | ENGINE 642 in MODEL 212, 218 | |
| ENGINE 642 in MODEL 212 | AR88.40-P-1000EW |
COOLANT MIXING RATIO
| Number | Designation | ENGINE ALL | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze/water | to -37°C |
50/50 |
| Antifreeze/water | to -45°C |
55/45 | ||
| Specification | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
