Retrofit reversing camera - AN54.65-P-0030EWA

MODEL 212.0## (except 212.074/075/076/077/092/095/098) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

MODEL 212.0## (except 212.074/075/076/077/092/095/098) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 527 (COMAND APS) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

Shown on model 212.0

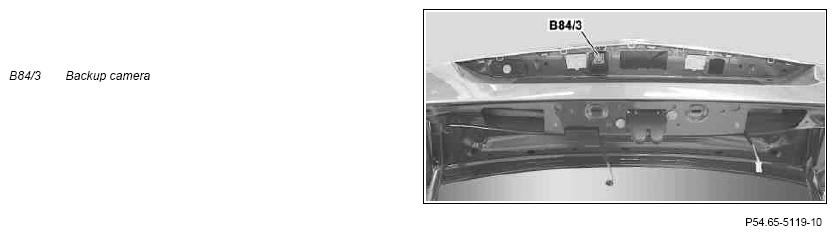

Fig 1: Backup Camera

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove passenger seat
			AR91.10-P-1000CW
2	Detach center console
			AR68.20-P-2000EW
		Do not detach wiring harnesses.
3	Remove COMAND controller unit
			AR82.60-P-7502EW
4	Remove front door sill molding and rear right
			AR68.30-P-4100EW
5	Remove right front floor covering in footwell
6	Remove right lower B-pillar paneling
7.1	Remove right outer side bolster	Vehicles with CODE 287 (Through-loading feature)
			AR91.12-P-1710CW
7.2	Remove backrest in rear	MODEL 212.0 except CODE 287 (Through-loading feature)
			AR91.12-P-1620CW
7.3	Remove backrest in rear	Vehicles with CODE 224 (Design individual rear seat system)
			AR91.12-P-1620EW
7.4	Remove right outer side bolster	MODEL 212.2 except CODE 224 (Design individual rear seat system)
			AR91.12-P-1720ES
8	Fold down backrest in rear
9.1	Remove trunk lining on right-hand side	MODEL 212.0
			AR68.30-P-4600EW
9.2	Remove right side trim in load compartment	MODEL 212.2
			AR68.30-P-1180ES
10	Remove paneling on right D-pillar	MODEL 212.2
			AR68.30-P-4495ES
11	Remove headliner at rear	MODEL 212.2
12.1	Remove handle strip from trunk lid	MODEL 212.0
			AR88.50-P-5062EW
		Remove the trunk lid cover completely. Replace the old trunk lid handle strip with the trunk lid handle strip contained in the scope of supply.
12.2	Remove handle strip for liftgate	MODEL 212.2 Remove trunk lid trim assembly. The trunk lid handle strip is no longer required.
	Install
13	Retrofit wiring harness and reversing camera (B84/3)	MODEL 212.0	AN54.65-P-0030-03EWB
		MODEL 212.2	AN54.65-P-0030-03EWA
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
14	Install remaining parts
15	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  CODE 218 (Reversing camera)
16	Document retrofitted equipment in VeDoc	Attach a note "Reversing camera retrofitted as per AN54.65-P-0030EWA" under field organization texts for DG 54 and DG 88.
17	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
			AD00.00-P-2000-04A
18	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding must be carried out with XENTRY using the SCN for the following control unit: "Front SAM with fuse and relay module" "Central gateway (CGW)" "COMAND controller unit"
19	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
20	Perform function test	See the operating instructions for the reversing camera (B84/3).

Fig 2: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
