Remove/install trunk lid handle - AR88.50-P-5062EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212.0/1

Illustrated on model 207.3

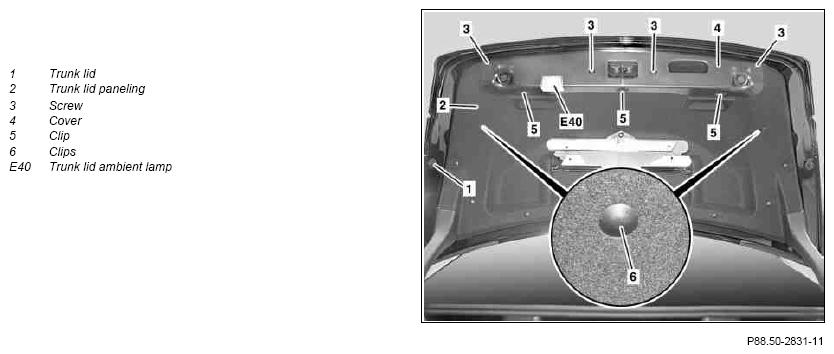

Fig 1: Trunk Lid Handle Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 remove removed trunk lid paneling

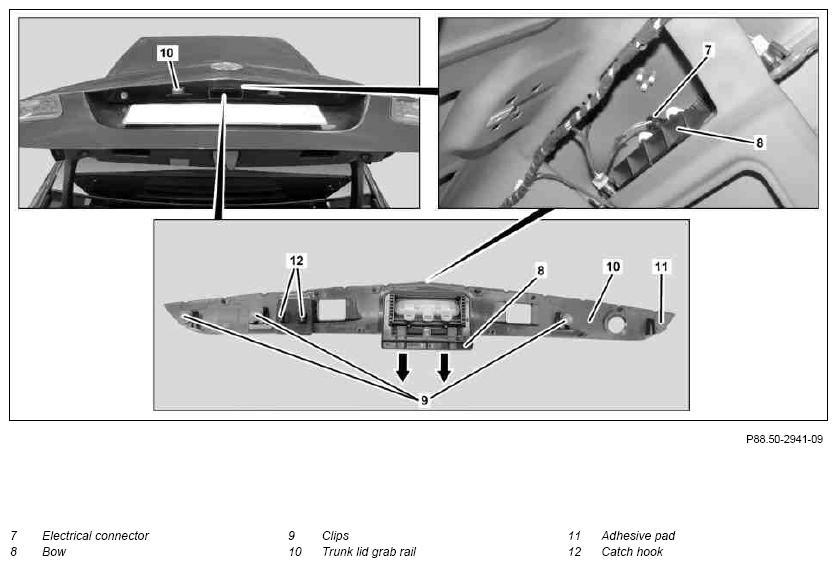

Fig 2: Trunk Lid Handle Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
1	Remove screws (3) at cover (4)	MODEL 207
2	Unclip clips (5)	Clip remover	Figure
3	Loosen cover (4) until electrical connector on trunk lid ambient lamp (E40) is accessible
4	Disconnect electrical connector from trunk lid ambient lamp (E40) and remove cover (4)
5	Remove clips (6) from trunk lid panel (2)
6	Guide trunk lid paneling (2) out of trunk lid (1) and pivot downward	Hazard warning triangle remains in bracket.
7	Disconnect electrical connector (7)
8	Pull bow (8) toward rear (arrows) and remove
9	Unclip catch hook (12)	MODEL 212.0/1
10	Unclip clips (9)	Installation: Check clips (9) for damage, replace if necessary.
11	Pull trunk lid handle (10) out of extraction hook and remove	Installation: Replace adhesive pad (11) on trunk lid handle strip (10).
11		Extraction hook	Fig 4
12	Install in the reverse order

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
