Remove/install load compartment inner side paneling - AR68.30-P-1180ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2
Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

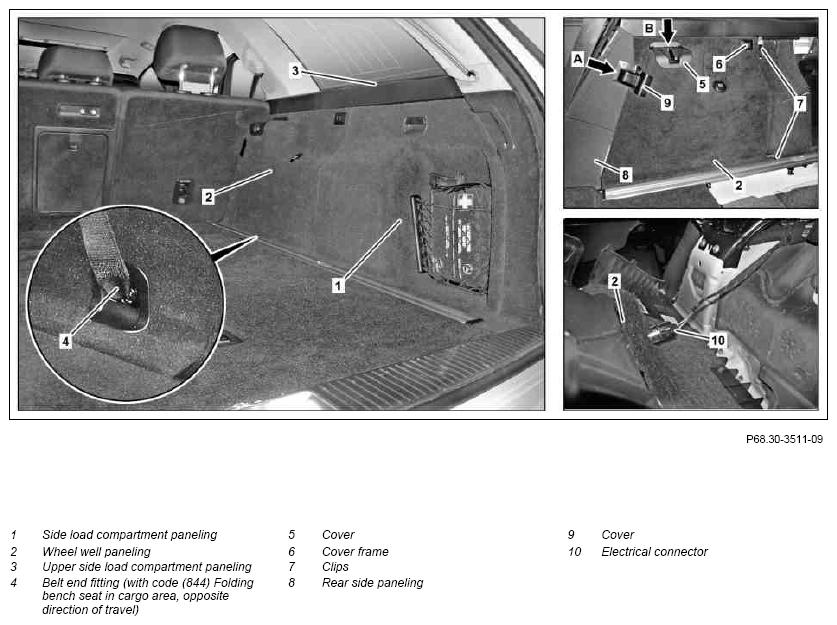

| 1 | Remove side load compartment paneling (1) | ||
| 2 | Fold rear seat backrest to front | ||
| 3 | Remove twin roller blinds | ||
| 4 | Unclip cover (9) from top (arrow A) | Figure | |
| 5 | Unscrew bolt and unclip cover (5) from top (arrow B) | Figure | |
| 6 | Unclip cover frame (6) | Figure | |
| 7 | Remove clips (7) and loosen wheel well paneling (2) | Figure | |
| 8 | Disconnect electrical connector (10) | ||
| 9 | Remove belt end fitting (4) | MODEL 212.2 with CODE 844 (Rear-facing folding bench seat in load compartment) |
|
| *BA91.40-P-1014-01Q | |||
| 10 | Remove wheel well paneling (2) | ||
| 11 | Remove cover grille (11) | ||
| Figure | |||

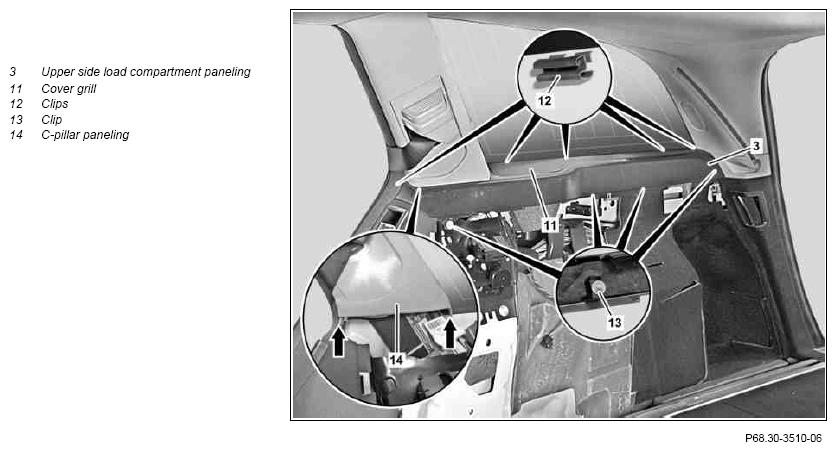

| 12 | Unclip upper side load compartment paneling (3) from clips (13) | Figure | |
| 13 | Unclip upper side load compartment paneling (3) from clips (12) and remove | ||
| Figure | |||
| 14 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 212.2 | |
|---|---|---|---|
| BA91.40-P-1014-01Q | Bolt, rear belt end fitting | Nm | 35 |
