Remove/install radio - AR82.60-P-7502EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212, 218
Shown on model 212 with open lock
MODEL 218 as of model year 2015
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) | When replacing radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 207, 212, 218 without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 207, 212, 218 with CODE 889 (KEYLESS-GO) |
|
| 3 | Remove Audio/COMAND display | MODEL 218 as of model year 2015 |
|
| AR82.60-P-7722ELA | |||
| 4 | Remove trim piece from right instrument panel | MODEL 212, 218 | |
| MODEL 212 | AR68.10-P-1180EW | ||
| MODEL 218 | AR68.10-P-1180EL | ||
| 5 | Remove center air vents | MODEL 207 | |
| AR83.10-P-4503EC | |||

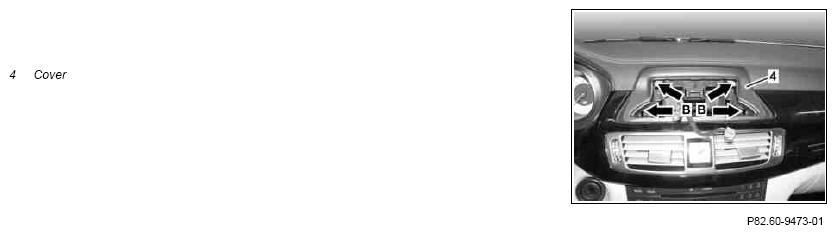

| 6 | Unclip cover (4) from instrument panel (arrows B) and remove | MODEL 218 as of model year 2015 |
|

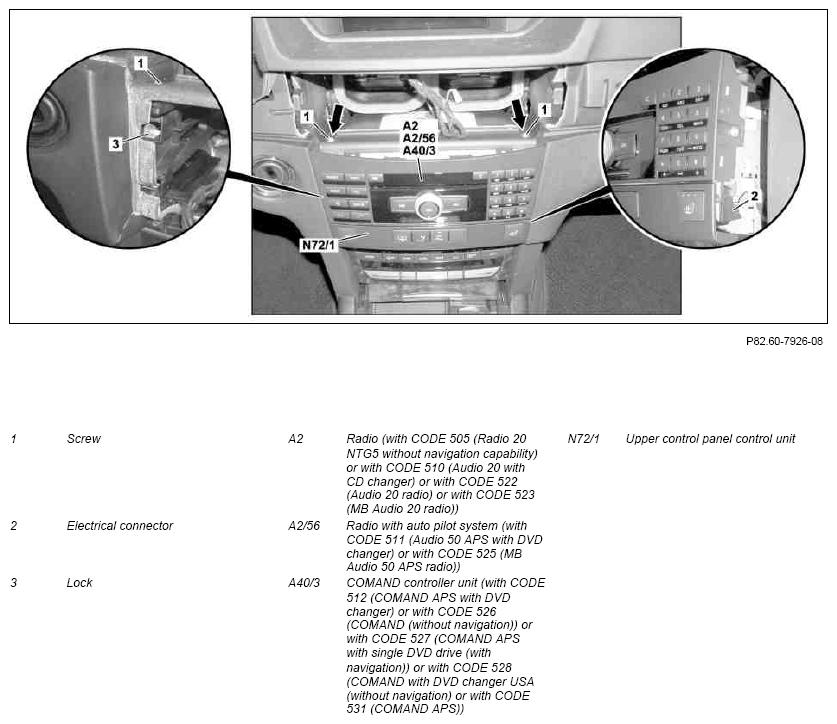

| 7 | Completely remove screws/bolts (1), position screws/bolts (1) again and press screws/bolts (1) in direction of arrow so that lock (3) is opened | ||
| 8 | Cover center console with a dry cloth and pull radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) far enough out of the instrument panel for the electrical connector (2) of the upper control panel control unit (N72/1) to be accessed | ||
| 9 | Disconnect electrical connector (2) of upper control panel control unit (N72/1) | ||
| 10 | Pull radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) far enough out of instrument panel until electrical connectors or optical fiber connector are accessible on the back of the unit | ||
| 11 | Disconnect electrical connectors and optical fiber connector on back of radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3), unhook retaining clip and remove radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) | ||
| 12 | Remove upper control panel control unit (N72/1) | When replacing radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3). | |
| AR54.21-P-1262CY | |||
| 13 | Install in the reverse order |
