Retrofit the backup camera wiring harness - AN54.65-P-0030-03EWB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

Model 212.0 (except 212.074/075/076/077/092/095/098) as of 4/13/13 as of model year 2014 with code 512 (COMAND APS with DVD changer) except code 460 (Canada version) except code 494 (US version) except code 498 (Japanese version) except code 830 (Vehicles for China, additional parts) except code P44 (Parking package)

Model 212.0 (except 212.074/075/076/077/092/095/098) as of 4/13/13 as of model year 2014 with code 527 (COMAND APS with single DVD drive (with navigation)) except code 460 (Canada version) except code 494 (US version) except code 498 (Japanese version) except code 830 (Vehicles for China, additional parts) except code P44 (Parking package)

GROUND POINTS

Number Designation Model 212
BA00.19-P-1008-01D Right rear wheel arch ground point W7 Nm 10
Fig 1: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G10240017Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G10240018Courtesy of MERCEDES-BENZ USA

Connection scheme

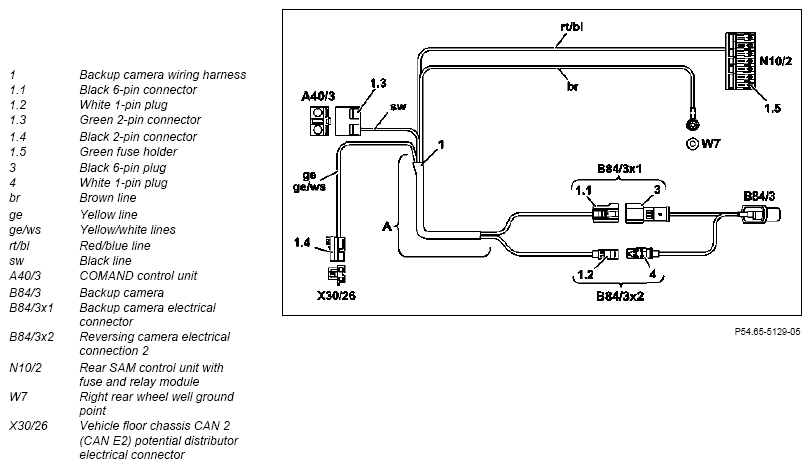

Fig 3: Backup Camera Wiring Harness Connection Schematic Diagram
G10240019Courtesy of MERCEDES-BENZ USA

Routing diagram

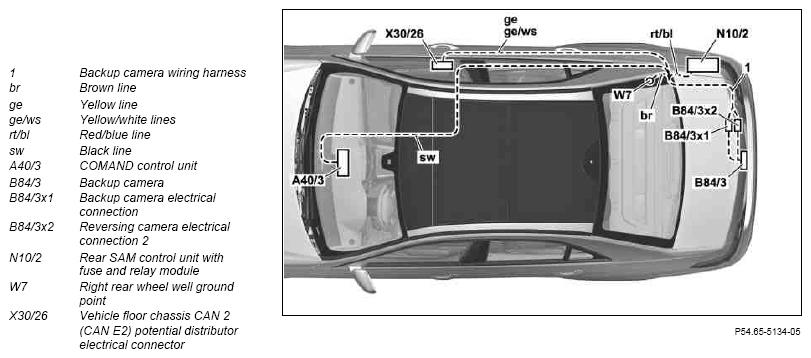

Fig 4: Backup Camera Wiring Harness Routing Diagram
G10240020Courtesy of MERCEDES-BENZ USA
  1. Detach green fuse holder (1.5) from reversing camera wiring harness (1).

    IMPORTANT Use the SPECIAL TOOL basic wiring harness repair kit or the SPECIAL TOOL supplementary passenger car wiring harness repair kit.

  2. Detach green 2-pin coupling housing of green 2-pin connector (1.3) from reversing camera wiring harness (1).
  3. Wrap reversing camera wiring harness (1) of black 6-pin connector (1.1) and white 1-pin connector (1.2) in insulation tape starting at a length of 1400 mm (area A).

    IMPORTANT Guide the electrical line through into the interior of the trunk lid.

  4. Clip reversing camera (B84/3) into specified cutout in trunk lid.

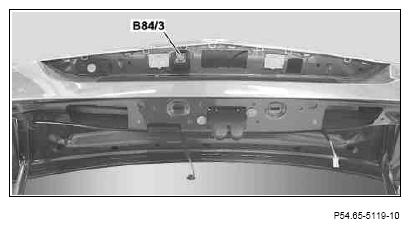

    Fig 5: Reversing Camera (B84/3) In Trunk Lid
    G10240021Courtesy of MERCEDES-BENZ USA
  5. Place reversing camera wiring harness (1) in luggage compartment.
  6. Connect black 6-pin plug (3) to black 6-pin connector (1.1).

    IMPORTANT This connects the reversing camera electrical connection (B84/3x1).

  7. Connect white 1-pin plug (4) to white 1-pin connector (1.2).

    IMPORTANT This connects reversing camera electrical connection 2 (B84/3x2).

  8. Pull foam over reversing camera electrical connector (B84/3x1) and reversing camera electrical connector 2 (B84/3x2).
  9. Route reversing camera wiring harness (1) of reversing camera electrical connector (B84/3x1) and reversing camera electrical connector 2 (B84/3x2) starting at trunk lid hinge and continuing to right rear wheel well.

    NOTES Make sure that there is adequate freedom of movement when routing the reversing camera wiring harness (1) between the trunk lid hinge and right rear wheel well.

    Otherwise unobstructed movement of the trunk lid hinge can be impaired or the reversing camera wiring harness (1) can be sheared off.

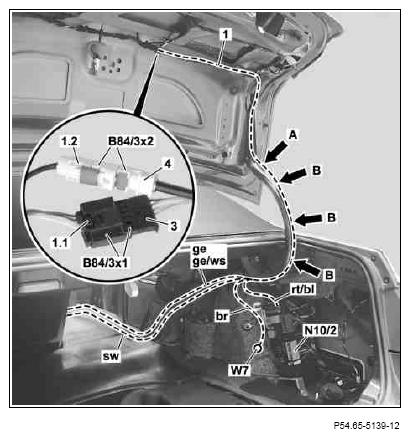

    Fig 6: Reversing Camera Wiring Harness Felt Tape And Cable Ties
    G10240022Courtesy of MERCEDES-BENZ USA
  10. Fix reversing camera wiring harness (1) in place using cable ties (arrows B) and felt tape (arrow A).
  11. Route red/blue line (RD/BU) along existing lines to rear SAM control unit with fuse and relay module (N10/2) and fix in place using cable ties.
  12. Route brown line (BN) along existing lines to right rear wheel arch ground point (W7) and fix in place using cable ties.
  13. Connect brown line (BN) to right rear wheel arch ground point (W7) TORQUE SPECIFICATION .
  14. Strap down excess length of the brown line (br) and fix in place using cable ties.
  15. Model 212.0 with code 386 (Comfort telephony) Model 212.0 with code 518 (Media Interface) Model 212.0 with code 537 (Digital radio (DAB))

    Detach green fuse folder (6) from rear SAM control unit with fuse and relay module (N10/2).

    1. 16.1)  Model 212.0 with code 386 (Comfort telephony) Model 212.0 with code 518 (Media Interface) Model 212.0 with code 537 (Digital radio (DAB))

      Insert red/blue line (RD/BU) into contact cavity 4 (arrow C) of green fuse holder (6).

      IMPORTANT Contact cavity 4 (arrow C) of the fuse holder (6) is labeled.

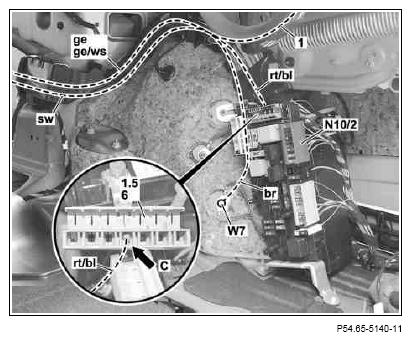

      Fig 7: Locating Fuse Holder Contact Cavity
      G10240023Courtesy of MERCEDES-BENZ USA
    2. 16.2)  Model 212.0 except code 386 (Comfort telephony) except code 518 (Media Interface) except code 537 (Digital radio (DAB))

      Insert red/blue line (RD/BU) into contact cavity 4 (arrow C) of green fuse holder (1.5).

      IMPORTANT Contact cavity 4 (arrow C) of the green fuse holder (1.5) is labeled.

  17. Attach green fuse holder (1.5 or 6) to rear SAM control unit with fuse and relay module (N10/2).

    IMPORTANT The slot on the rear SAM control unit with fuse and relay module (N10/2) is marked green.

  18. Insert a fuse with fuse rating of 7.5 A into slot 4 of green fuse holder (1.5 or 6).
  19. Tie back excess length of the red/blue line (RD/BU) and fix in place using cable ties.
  20. Route black line (BK) and twisted yellow line (YE) and yellow/white line (YE/WH) along existing lines and in cable ducts into right front footwell and fix in place using cable ties.
  21. Connect twisted yellow line (YE) and yellow/white line (YE/WH) to vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector (X30/26).
  22. Strap down excess length of the twisted yellow line (ge) and yellow/white line (ge/ws) and fix in place using cable ties.

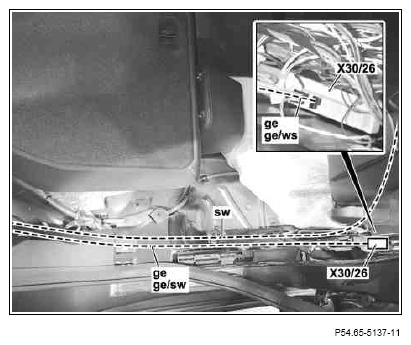

    Fig 8: Twisted Yellow Line (YE) And Yellow/White Line (YE/WH)
    G10240024Courtesy of MERCEDES-BENZ USA
  23. Route black line (sw) along the cable duct over the center console to the COMAND controller unit and fix in place using felt tape.

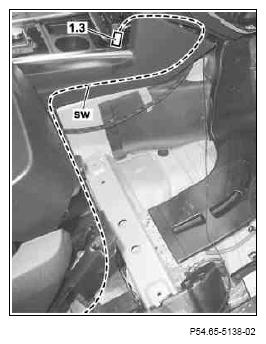

    Fig 9: Routing Black Line Along The Cable Duct
    G10240025Courtesy of MERCEDES-BENZ USA
  24. Model 212.0 with code 518 (Media Interface) Detach green 2-pin connector (7) from COMAND controller unit (A40/3).
    1. 25.1)  Model 212.0 with code 518 (Media Interface) Insert black line (BK) into contact cavity 2 of green 2-pin connector (7).
    2. 25.2)  Model 212.0 except code 518 (Media Interface) Insert black line (BK) into contact cavity 2 of green 2-pin connector (1.3).
  26. Attach green 2-pin connector (1.3 or 7) to COMAND controller unit (A40/3).

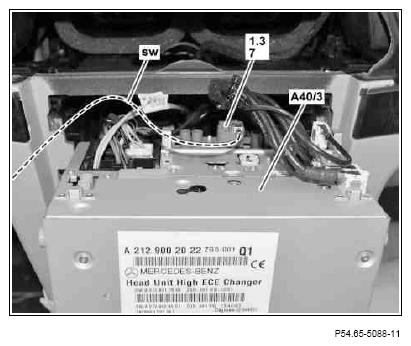

    Fig 10: COMAND Controller Unit Black Pin And Green 2-Pin Connector
    G10240026Courtesy of MERCEDES-BENZ USA
