Retrofit the backup camera wiring harness - AN54.65-P-0030-03EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

MODEL 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 527 (COMAND APS) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

Fig 1: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G10240004Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G10240005Courtesy of MERCEDES-BENZ USA

Connection scheme

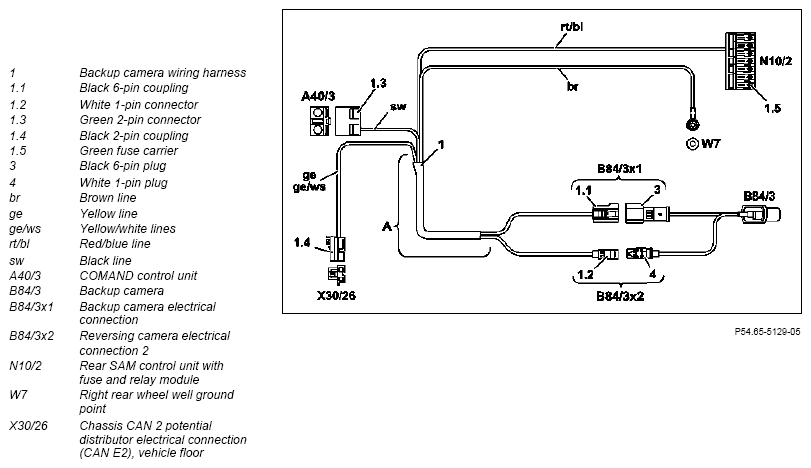

Fig 3: Backup Camera Wiring Harness Connection Schematic
G10240006Courtesy of MERCEDES-BENZ USA

Routing diagram

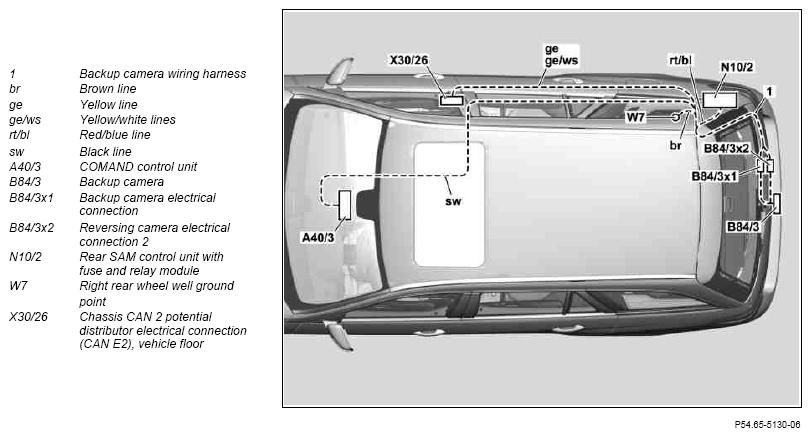

Fig 4: Backup Camera Wiring Harness Routing Diagram
G10240007Courtesy of MERCEDES-BENZ USA
  1. Detach green fuse carrier (1.5) from reversing camera wiring harness (1).

    IMPORTANT Use the SPECIAL TOOL basic wiring harness repair kit or the SPECIAL TOOL supplementary passenger car wiring harness repair kit.

  2. Detach green 2-pin coupling housing of green 2-pin connector (1.3) from reversing camera wiring harness (1).
  3. Wrap reversing camera wiring harness (1) from the black 6-pin connector (1.1) and the white 1-pin connector (1.2) starting with a length of 1, 500 mm with insulation tape (area A).
  4. Clip in reversing camera (B84/3) into the cutout provided on the liftgate.

    IMPORTANT Guide electrical line through the interior of the liftgate.

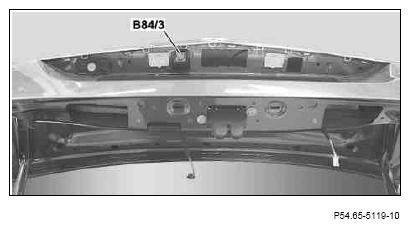

    Fig 5: Reversing Camera (B84/3)
    G10240008Courtesy of MERCEDES-BENZ USA
  5. Detach cable duct (5) from the liftgate.
    Fig 6: Liftgate Cable Duct
    G10240009Courtesy of MERCEDES-BENZ USA
  6. Connect black 6-pin plug (3) to black 6-pin connector (1.1).

    IMPORTANT This connects the reversing camera electrical connection (B84/3x1).

  7. Connect white 1-pin plug (4) to white 1-pin connector (1.2).

    IMPORTANT This connects reversing camera electrical connection 2 (B84/3x2).

  8. Pull foam over reversing camera electrical connector (B84/3x1) and reversing camera electrical connector 2 (B84/3x2).
  9. Route reversing camera wiring harness (1) from the reversing camera electrical connection (B84/3x1) and the reversing camera electrical connection 2 (B84/3x2) along existing wiring harnesses from the liftgate wiper motor through the cable duct and the breakthrough in the roof frame and fix in place.

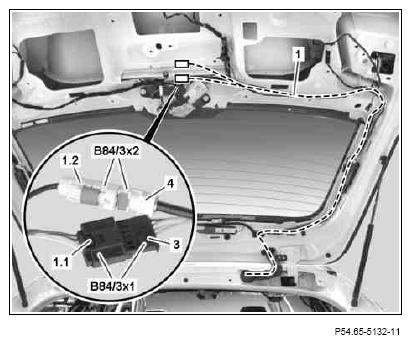

    Fig 7: Reversing Camera Wiring Harness And White 1-Pin Plug
    G10240010Courtesy of MERCEDES-BENZ USA
  10. Route reversing camera wiring harness (1) from breakthrough in roof frame over the D-pillar along existing wiring harnesses to rear SAM control unit with fuse and relay module and fix in place using cable ties.

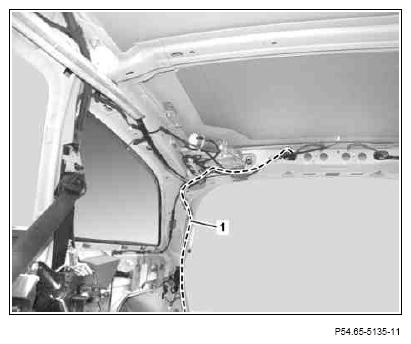

    Fig 8: Reversing Camera Wiring Harness
    G10240011Courtesy of MERCEDES-BENZ USA
  11. Route brown line (br) behind rear SAM control unit with fuse and relay module (N10/2) to right rear wheel arch ground point (W7) and fix in place using cable ties.
  12. Connect brown line (br) to right rear wheel arch ground point (W7).
  13. Strap down excess length of the brown line (br) and fix in place using cable ties.
  14. With CODE 386 (Comfort telephony), CODE 518 (Media Interface) or with CODE 537 (Digital radio) Detach green fuse carrier (6) from rear SAM control unit with fuse and relay module (N10/2).
    1. 15.1)  With CODE 386 (Comfort telephony), CODE 518 (Media Interface) or with CODE 537 (Digital radio) Insert red/blue line (RD/BU) into contact cavity 4 (arrow C) of green fuse carrier (6).

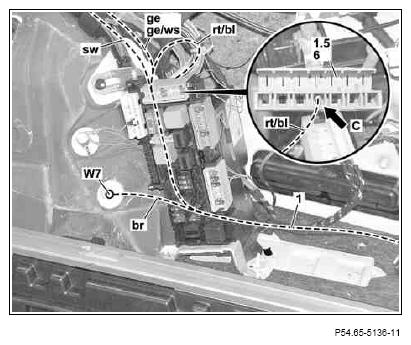

      Fig 9: Inserting Red/Blue Line Into Contact Cavity 4 Of Green Fuse Carrier
      G10240012Courtesy of MERCEDES-BENZ USA

      IMPORTANT Contact cavity 4 (arrow C) of the green fuse carrier (6) is labeled.

    2. 15.2)  Except CODE 386 (Comfort telephony), CODE 518 (Media Interface) or except CODE 537 (Digital radio) Insert red/blue line (RD/BU) into contact cavity 4 (arrow C) of green fuse carrier (1.5).

      IMPORTANT Contact cavity 4 (arrow C) of the green fuse carrier (1.5) is labeled.

      The green fuse carrier (1.5) is included in the installation kit.

  16. 16 Attach green fuse carrier (6 or 1.5) to rear SAM control unit with fuse and relay module (N10/2).

    IMPORTANT The slot on the rear SAM control unit with fuse and relay module (N10/2) is marked green.

  17. Insert a fuse with fuse rating of 7.5 A into slot 4 of green fuse carrier (6 or 1.5).
  18. Tie back excess length of the red/blue line (RD/BU) and fix in place using cable ties.
  19. Route black line (sw) and twisted yellow line (ge) and yellow/white line (ge/ws) along existing lines and in cable ducts into driver footwell and fix in place using cable ties.

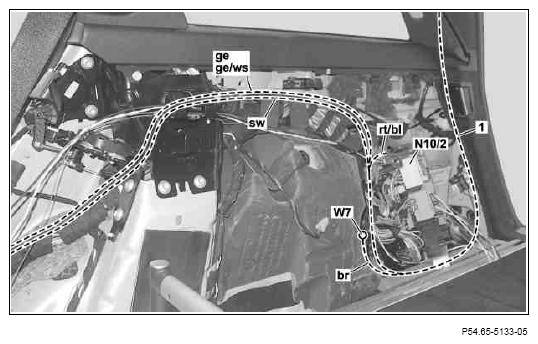

    Fig 10: Reversing Camera Wiring Harness
    G10240013Courtesy of MERCEDES-BENZ USA
  20. Connect twisted yellow line (ge) and yellow/white line (ge/ws) to vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connection (X30/26).
  21. Strap down excess length of the twisted yellow line (ge) and yellow/white line (ge/ws) and fix in place using cable ties.

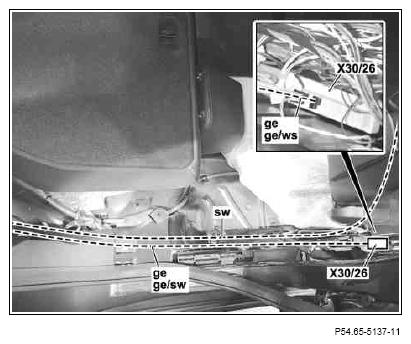

    Fig 11: Twisted Yellow Line (GE) And Yellow/White Line (GE/WS)
    G10240014Courtesy of MERCEDES-BENZ USA
  22. Route black line (sw) along the cable duct over the center console to the COMAND controller unit and fix in place using felt tape.

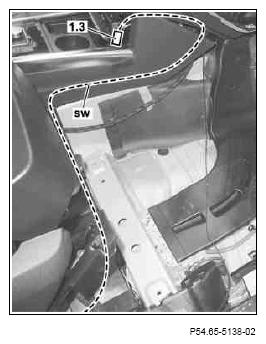

    Fig 12: Black Line (SW) Along Cable Duct
    G10240015Courtesy of MERCEDES-BENZ USA
  23. With CODE 518 (Media Interface) Detach green 2-pin connector (7) from COMAND controller unit (A40/3).
    1. 24.1)  With CODE 518 (Media Interface) Insert black line (BK) into contact cavity 2 of green 2-pin connector (7).
    2. 24.2)  Except CODE 518 (Media Interface) Insert black line (BK) into contact cavity 2 of green 2-pin connector (1.3).
  25. Attach green 2-pin connector (1.3 or 7) to COMAND controller unit (A40/3).

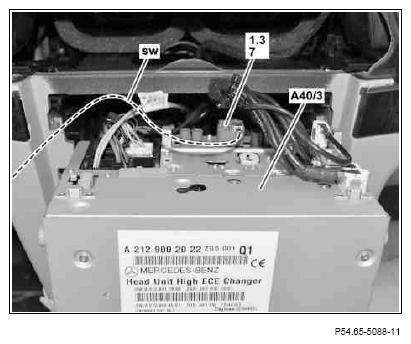

    Fig 13: COMAND Controller Unit Green 2-Pin Connector
    G10240016Courtesy of MERCEDES-BENZ USA
