Remove/Install Engine With Front Axle Carrier - AR01.10-P-2500SC

Engine 176 in model 223

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on influencing load ratios when removing major assemblies		AH00.60-P-0001-01A
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
Notice	Notes on battery		AH54.10-P-0001-01A
Notice	Notes on air suspension		AH32.22-P-1000-01T
Notice	Information on E-ACTIVE BODY CONTROL suspension		AH32.50-P-0002-01ME
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases		AH01.10-P-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Secure vehicle against rolling away, shift transmission to neutral position, and release parking brake.
2	Deactivate easy entry and exit feature.	Engine 176 in model 223 with code 275 (Memory Package (driver's seat, steering column and mirror))
3	Secure vehicle on vehicle lift.		AR00.60-P-1006A
4	Pump pneumatic suspension strut pressure into central reservoir using diagnostic system.
			AD00.00-P-2000-06FR
		The complete wheels must not touch the ground. Suspension struts can otherwise be predamaged and subsequently fail. Select menu item "Actuations" in active suspension and damping system control unit. Pump pneumatic pressure using vehicle diagnosis system from central reservoir to suspension struts.
5.1	Disconnect ground line from the on-board electrical system battery (G1).	Engine 176 in model 223 except code 490 (Electrohydraulic suspension)	AR54.10-P-0051S
5.2	Remove front electrohydraulic controller units (M67, M67/1).	Engine 176 in model 223 with code 490 (Electrohydraulic suspension)	AR32.50-P-0045S
6	Turn steering wheel to center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device.	Do not turn steering wheel when steering coupling is removed. The clock spring contact will otherwise be destroyed. Retainer device	Fig 2
7	Drain coolant of the engine cooling circuit.	Only install lower engine compartment paneling after a leak test.	AR20.00-P-1142SC
8	Drain coolant of low-temperature circuit.	Only install lower engine compartment lining after leak test.	AR20.00-P-1144SC
9	Drain coolant for the 48 V on-board electrical system.	Only install front and center lower engine compartment lining after leak test.	AR20.00-P-2014SC
10	Remove front wheel and tire assemblies.		AR40.10-P-1102A
11	Remove the coolant expansion reservoir.		AR20.30-P-4949SC
12	Remove air filter housing.	Left air filter housing	AR09.10-P-1151SC
		Right air filter housing Do not install upper engine cover until after the leak test.	AR09.10-P-1152SC
13	Discharge air conditioning system.		AR83.30-P-1760S
14	Remove front bumper.	Engine 176 in model 223.0/1	AR88.20-P-2000S

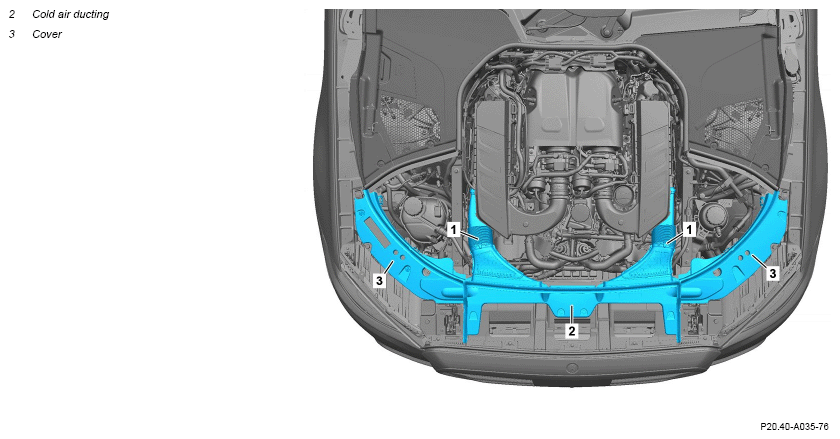

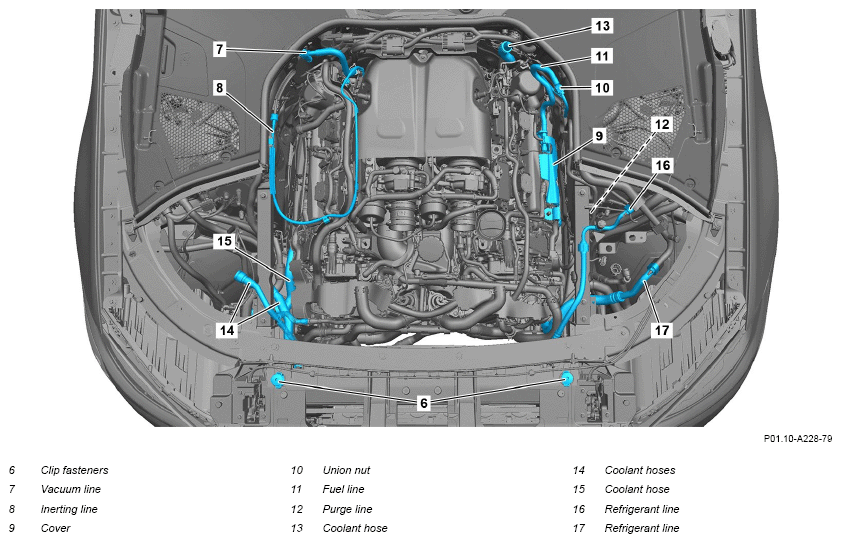

15	Remove cold air duct (2).	Dismantling tool	Fig 7
16	Remove covers (3) on left and right.	Dismantling tool	Fig 7

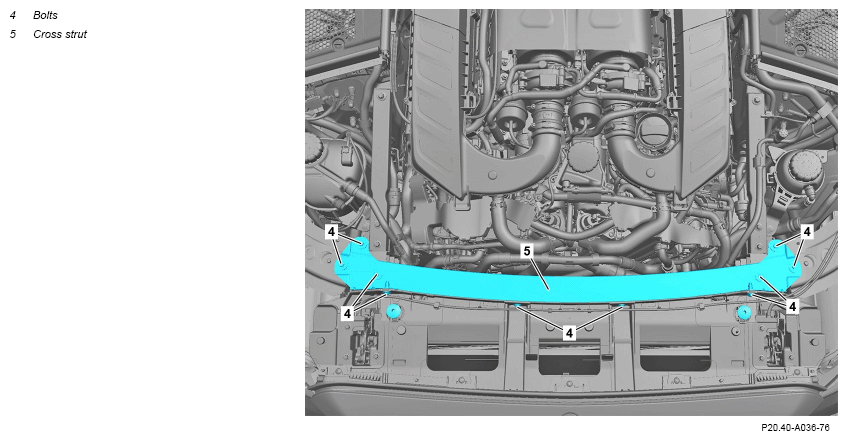

17	Remove screws (4) in the cross strut (5) on the front module and remove cross strut (5).	Screw, front module cross strut to crossmember	*BA62.30-P-1005-01G
18	Remove clip fasteners (6) of the cooler unit.
19	Remove vacuum line (7) from the separating point on the firewall.
20	Expose inerting line (8) of inerting system, remove at separating point and fasten to engine.	Engine 176 in model 223 with code 2U8 (Alternative refrigerant)	AR86.10-P-0419S
21	Remove cover (9).
22	Remove fuel pressure via the service connection.		AR07.03-P-1460-01SC
		Dust protection cap to service connection	*BA07.03-P-1005-01H
		Pressure hose	Fig 8
23	Remove union nut (10), pull out fuel line (11) and fasten to engine.	Collect escaping fuel using suitable means. Union nut, fuel line to fuel distributor/fuel system high-pressure pump	*BA07.03-P-1001-01H
		Engine mount wrench set	Fig 1
		Record plug	Fig 6
24	Remove purge line (12) at separating point.	Record plug	Fig 6
25	Remove coolant hose (13) at separating point for the firewall.	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
26	Remove coolant hoses (14).	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
27	Remove coolant hose (15) at coolant switchover valve (Y73/1) from vehicle and fasten to engine.	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
28	Remove refrigerant line (16) at separating point.
	Compressor oils (specification 362.1)	Replace sealing ring and moisten with compressor oil.	BB00.40-P-0362-01A
		Bolt, connecting point for lines	*BA83.30-P-1009-01P
		Assembly tool	Fig 3
		Record plug	Fig 6
29	Remove refrigerant line (17) at separating point and fasten with suitable means to engine.
	Compressor oils (specification 362.1)	Replace sealing ring and moisten with compressor oil.	BB00.40-P-0362-01A
		Bolt, connecting point for lines	*BA83.30-P-1009-01P
		Assembly tool	Fig 3
		Record plug	Fig 6
30	Remove cover (22).
31	Remove coolant pump (M75/2)		AR09.41-P-6931SC

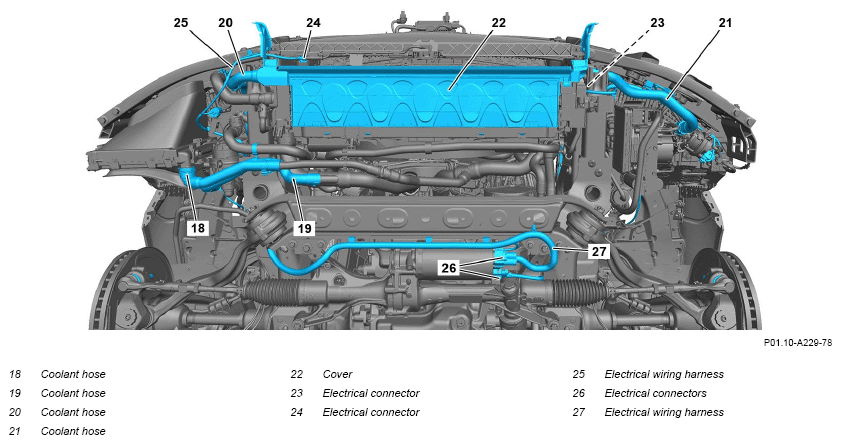

32	Remove coolant hose (18) from the cooler.	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
33	Remove coolant hose (19) at separating point and fasten with suitable means outside the working area.	Capture escaping coolant using suitable means. Hose clamp pliers	Fig 4
34	Remove coolant hose (20) from cooler and fasten with suitable means outside the working area.	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
35	Remove coolant hose (21) from coolant pump (M43/11).	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
36	Release and disconnect electrical connector (23) and remove electric line from the supporting frame of the cooler unit and from the front axle carrier (46).	Dismantling tool	Fig 7
37	Release and disconnect electrical connector (24).
38	Expose electrical wiring harness (25) and fasten with suitable means outside the working area.	Dismantling tool	Fig 7
39	Release and disconnect electrical connectors (26).
40	Remove electrical wiring harness (27) from front axle carrier (46) and fasten with suitable means outside the working area.	Dismantling tool	Fig 7
41	Remove steering coupling from steering shaft.		AR46.10-P-8000-01LW
42	Remove heat shield from transmission.		AR27.40-P-0700-01S
		Bolt, leaf spring for heat shield to transmission	*BA27.10-P-1008-04H
		Bolt, heat shield to oil pan	*BA27.10-P-1009-04H
43	Disconnect engine wiring harness for removal of the engine.		AR15.18-P-1000-05SC
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
		Nut, 48 V subharness to refrigerant compressor/electric motor/firewall	*BA15.18-P-1004-03D
		Nut, 48 V subharness to body	*BA15.18-P-1005-03D
44	Remove exhaust system.	Install engine carrier at the rear after removing the exhaust system.	AR49.10-P-7142S
45	Remove propeller shaft.		AR41.10-P-0050S
46	Release and disconnect electrical connector of the brakepad wear sensor (S10/2).	Only on right hand side of vehicle.
47	Remove connector coupling of the brakepad wear sensor (S10/2) from the right brake caliper (28).	Only on right hand side of vehicle. Bolt, brake wear sensor to brake caliper	*BA42.10-P-1004-10CA

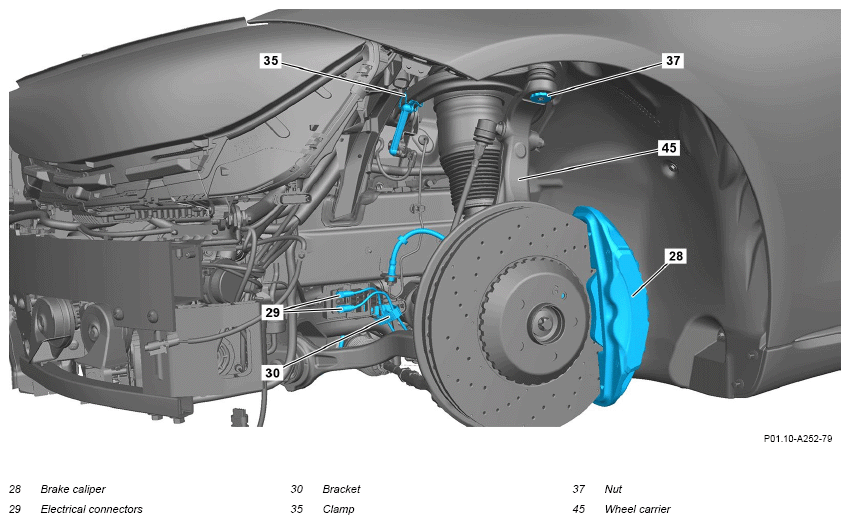

48	Remove brake calipers (28) from wheel carriers (45) and fasten with suitable means to vehicle.	Engine 176 in model 223 with code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Engine 176 in model 223 with code B07 (AMG - ceramic brake system) except code B06 (Silver brake calipers) except code U70 (red-painted brake callipers) Engine 176 in model 223 with code U70 (red-painted brake callipers) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system)	AR42.10-P-0070SA
		Engine 176 in model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers)	AR42.10-P-0070S
49	Install guard plates for protection of brake disk cover panels.		AR42.00-P-0100-01S
		Guard plate	Fig 5
50	Release and disconnect electrical connectors (29) on right and left side of vehicle.	The number of electrical connectors varies depending on the vehicle equipment.

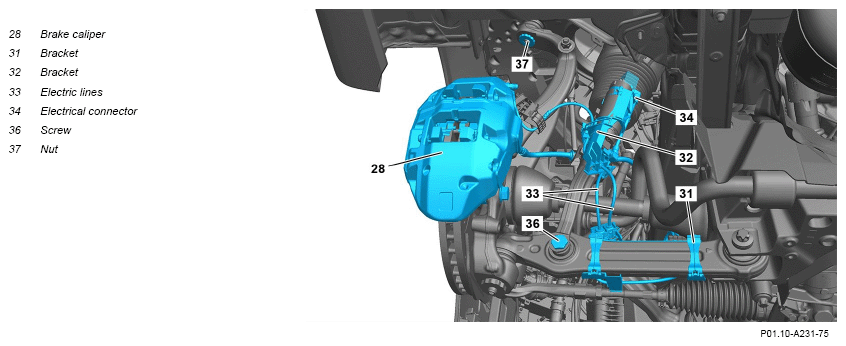

51	Open bracket (30) on the right and left side of the vehicle and remove electric lines from the bracket (30).
52	Open brackets (31, 32) on the right and left side of the vehicle and remove electric lines (33).
53	Release and disconnect electrical connectors (34) on the right and left side of the vehicle.
54	Remove clamps (35) from the upper transverse control arm on the right and left side of the vehicle.
55	Remove screw (36) on the right and left side of the vehicle and remove suspension struts from the spring links.	Nut, suspension strut at front to spring control arm	*BA32.25-P-1002-04O
56	Remove nut (37) on the right and left side of the vehicle and remove wheel carriers (45) from the upper transverse control arm.	Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01T

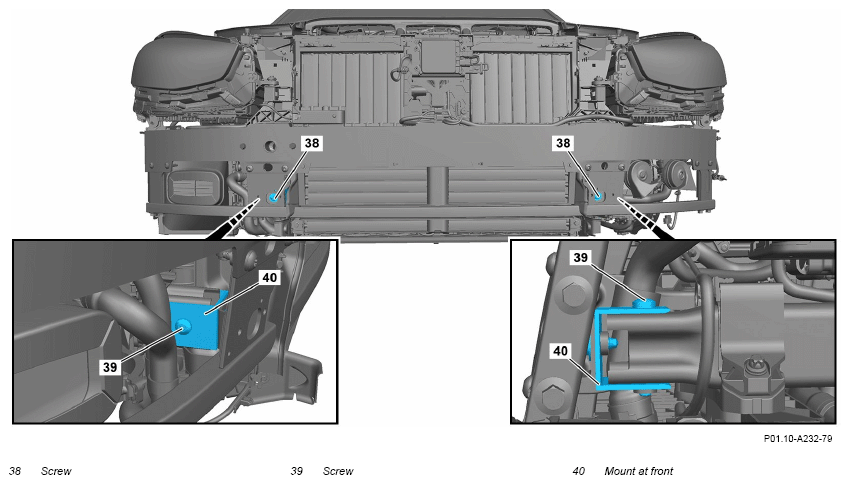

57	Remove screws (38).	Screw, support to lower impact absorber	*BA62.30-P-1009-01G
58	Remove screws (39) and remove front mounts (40).	Screw, front mount to absorber	*BA62.30-P-1011-01G
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
59	Support front axle carrier (46) and secure engine transmission unit against slipping and falling down using suitable means.
	000 588 25 62 00 Lift table		WS01.00-P-0264A
60	Remove transmission mount from the body.		AR22.10-P-0007SC

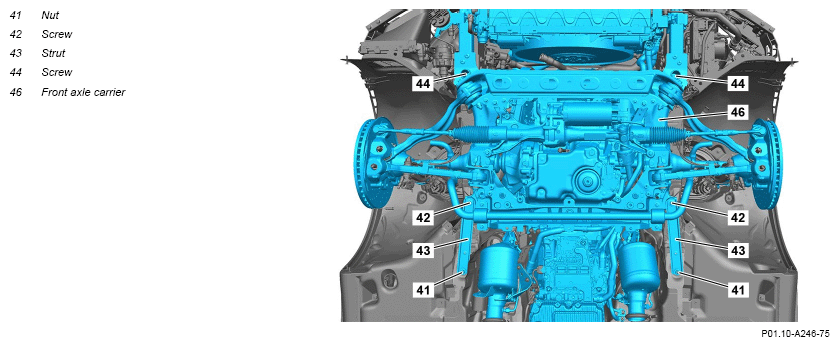

61	Remove nuts (41).	Bolt/nut, rear mounting support to longitudinal member	*BA33.10-P-1005-01P
62	Remove screws (42) and remove struts (43).	Screw/bolt, front axle carrier at rear to longitudinal member	*BA33.10-P-1002-01P
63	Remove screws (44) from the front axle carrier (46).	Screw/bolt, front axle carrier at front to longitudinal member	*BA33.10-P-1001-01P
64	Lower front axle carrier (46) with the engine transmission unit.
	000 588 25 62 00 Lift table	The engine transmission unit must not be in contact with body panels. Otherwise damage will occur. Do not crush or kink or subject lines to tension. Otherwise, the lines will be damaged. Aid of helper required.	WS01.00-P-0264A
65	Install in the reverse order.
	Concluding tasks
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
66	Perform engine test run. While doing so, check engine for proper operation and leak tightness.
67	Perform wheel alignment measurement.		AR40.20-P-0200S

Fig 1: Identifying Engine Mount Wrench Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hose Clamp Pliers (454 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Guard Plate (220 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
