Remove/Install Exhaust System - AR49.10-P-7142S

Engine 176, 256 in model 223

Courtesy of MERCEDES-BENZ USA

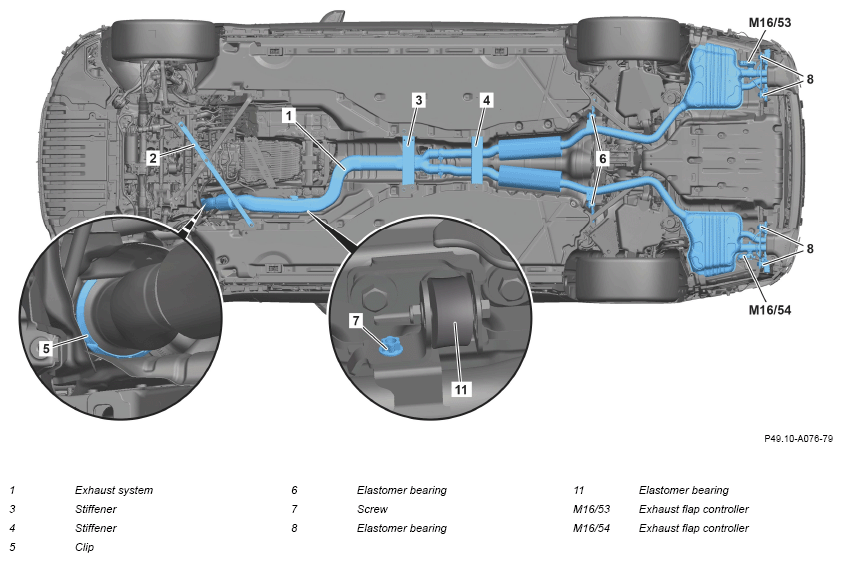

Shown on engine 256

Courtesy of MERCEDES-BENZ USA

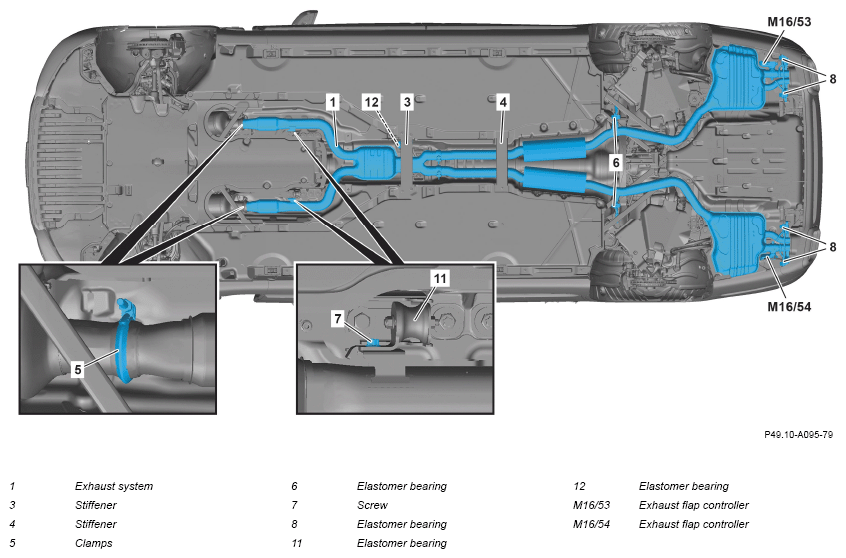

Shown on engine 176

	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove center and rear sections of lower engine compartment lining.	Engine 256 in model 223
			AR61.20-P-1105S
		Only install center and rear lower rear engine compartment lining again after leak test.
2	Release side underfloor panelings in area of stiffeners (3, 4) on frame floor.		AR61.30-P-1001S
3	Remove diagonal strut.	Engine 256 in model 223
			AR61.10-P-5141S
4	Remove stiffener (3).
	Notes on safety-relevant components		AH00.00-Z-0019-01A
		Engine 176, 256 in model 223 except code Z07 (B7 armoring on special protection version) Screw, Center tunnel strut to body	*BA61.10-P-1001-01P
5	Remove stiffener (4).	Engine 176, 256 in model 223 except code Z07 (B7 armoring on special protection version) Screw, Rear tunnel strut/Diagonal Strut to body/Rear floor	*BA61.10-P-1002-01P
6	Release and disconnect electrical connector at exhaust gas flap controller (M16/54) and unclip electric line.
7	Release and disconnect electrical connector at exhaust gas flap controller (M16/53) and unclip electric line.
8.1	Remove clamp (5).	Engine 256 in model 223 Replace the clamp (5).
		Clamp, front exhaust line to center exhaust system	*BA49.10-P-1014-02Y
8.2	Remove clamps (5).	Engine 176 in model 223 Install new clamps (5).
		Clamp, front exhaust line to center exhaust system	*BA49.10-P-1014-02Y
9	Remove exhaust system (1) from elastomer bearing (12).	Engine 176 in model 223 Wet elastomer bearing (12) with anti-seize agent.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
10	Remove exhaust system (1) from elastomer bearings (6).	Wet elastomer bearings (6) with lubricant.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
11	Support exhaust system (1).
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
12.1	Unscrew screw (7).	Engine 256 in model 223
		Screw/nut, front exhaust system bracket to exhaust line	*BA49.10-P-1012-02Y
12.2	Remove screws (7).	Engine 176 in model 223
		Screw/nut, front exhaust system bracket to exhaust line	*BA49.10-P-1012-02Y
13	Remove exhaust system (1) from elastomer bearings (8) and remove.	Two helpers required. Wet elastomer bearings (8) with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
14	Check elastomer bearings (6, 8) for wear and damage.	If there are problems: Replace elastomer bearings (6, 8). Lightly wet elastomer bearings (6, 8) with lubricant.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
15.1	Check elastomer bearing (11) for wear and damage.	Engine 256 in model 223 If there are problems: replace elastomer bearing (11).
		M8x1	*BA00.10-P-1004-04A
15.2	Check elastomer bearings (11) for wear and damage.	Engine 176 in model 223
		If there are problems: ↓ Replace elastomer bearings (11).
		M8x1	*BA00.10-P-1004-04A
16	Check elastomer bearing (12) for wear and damage.	Engine 176 in model 223 If there are problems: Replace elastomer bearing (12). Lightly wet elastomer bearing (12) with lubricant.
		M8x1	*BA00.10-P-1004-04A
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
17	Remove combustion and corrosion residues from separating points.
18	Install in the reverse order.
	Check
19	Check installation position and clearance of the exhaust system (1).	If there are problems: ↓ Correct the installation position of exhaust system (1).
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
20	Perform engine test run and check exhaust system (1) for leaks.
21	Install center and rear lower engine compartment lining.	Engine 256 in model 223
			AR61.20-P-1105S
