Remove/Install Shield At Transmission - AR27.40-P-0700-01S
Transmission 725.0/1 in model 223
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | Transmission 725.1 | |
|---|---|---|---|---|
| BA27.10-P-1008-04H | Bolt, leaf spring for heat shield to transmission | Nm | 5 | 5 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | Transmission 725.1 | |
|---|---|---|---|---|
| BA27.10-P-1009-04H | Bolt, heat shield to oil pan | Nm | 9 | 9 |
Remove/install

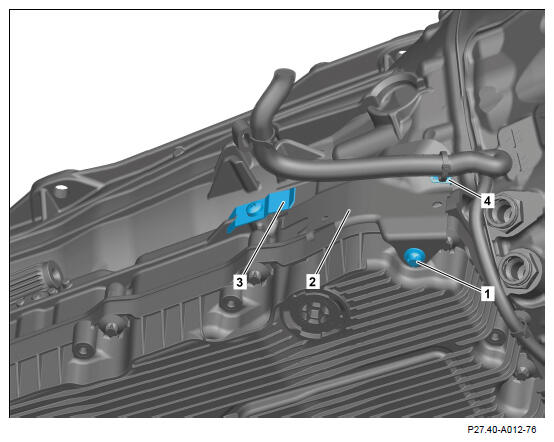

- Remove fastening clip (4) with cable tie from heat shield (2).
- Unscrew and remove screw (1) and remove heat shield (2) downward
.
Push heat shield (2) under leaf spring (3).
- Unscrew and remove screw from leaf spring (3) and remove leaf spring (3)
When replacing the transmission.
- Install in the reverse order.
