Remove/Install Coolant Expansion Reservoir - AR20.30-P-4949SC

Engine 176 in model 223

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and	AS20.00-Z-0001-01A
	poisoning from swallowing coolant.	release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install

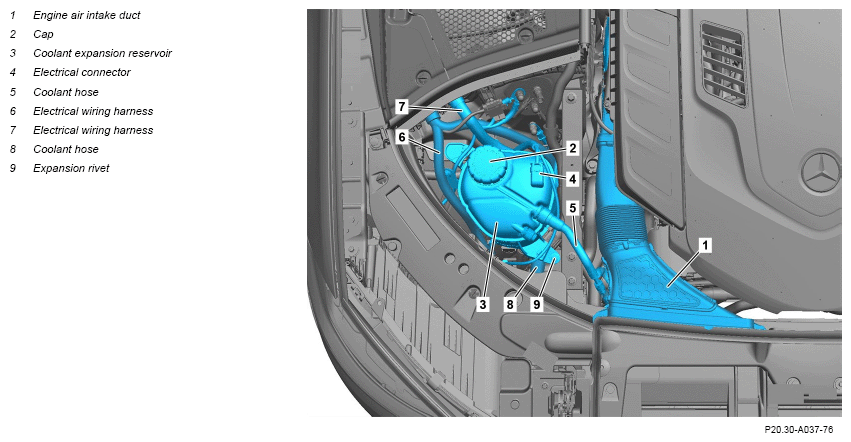

1	Remove engine air intake duct (1) upstream of right air filter.	Dismantling tool	Fig 2
2	Carefully open cap (2), release overpressure, and remove cap (2).
3	Suction off coolant from coolant expansion reservoir (3).	Hand pump	Fig 1
4	Release and disconnect electrical connector (4).
5	Remove coolant hose (5) from coolant expansion reservoir (3).	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
6	Remove electrical wiring harnesses (6, 7) from coolant expansion reservoir (3).	Dismantling tool	Fig 2
7	Remove coolant hose (8) from coolant expansion reservoir (3).
8	Remove expansion rivet (9).	Dismantling tool	Fig 2
9	Carefully pull coolant expansion reservoir (3) out of elastomer bearings until coolant hose (10) is accessible.
10	Release and disconnect coolant hose (10).	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
11	Remove coolant expansion reservoir (3).	Wet elastomer bearings on holder of coolant expansion reservoir (3) with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
	Check
12	Check elastomer bearings of coolant expansion reservoir (3) for damage.	If damage is present, ↓ replace respective elastomer bearing.

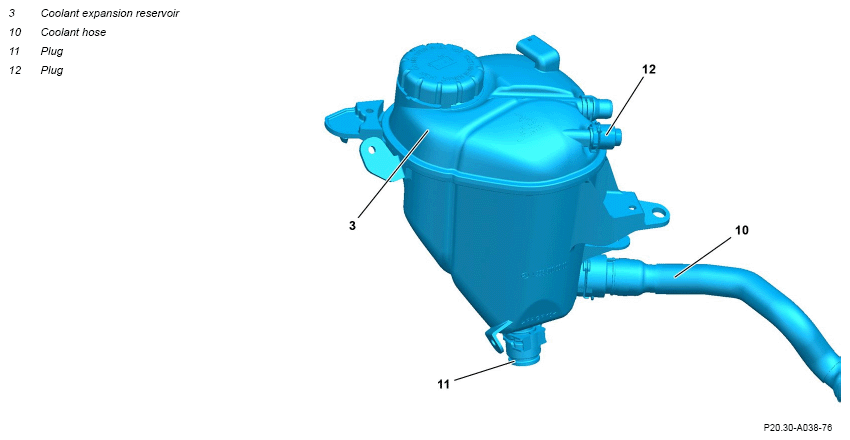

13	Remove plugs (11, 12) at coolant expansion reservoir (3).	If coolant expansion reservoir (3) is replaced.	AR20.20-P-7441-01RQ
14	Install in the reverse order.
	Concluding tasks
15	Check coolant level, correct if necessary.	Cooling system	*BF20.00-P-1001-02MA
16	Connect vehicle diagnosis system and switch on ignition.
			AD00.00-P-2000-06FR
17	Start bleeding routine of engine cooling system.	This involves actuating the coolant pumps to remove residual air from the engine cooling system. If the bleeding routine was not completed successfully: ↓
		Repeat bleeding routine of engine cooling system.
18	Switch off ignition and disconnect diagnostic
			AD00.00-P-2000-06FR
19	Check coolant level, correct if necessary.	Cooling system	*BF20.00-P-1001-02MA
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
20	Perform engine test run. While doing so, check engine for proper operation and leak tightness.

COOLING SYSTEM

Number	Designation				Model 223 with engine 176
BF20.00-P-1001-02MA	Cooling system	Workshop replacement amount	Main circuit	Liter	≈ 15, 2
		Workshop replacement amount	Low-temperature circuit	Liter	≈ 2, 3
		Antifreeze/water	to -37°C	%	50/50
			Fluids specifications		BB00.40-P-0310-01A
			Fluids specifications		BB00.40-P-0325-06A
			Fluids specifications		BB00.40-P-0326-06A
			as from -38°C	%	55/45

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
