Remove/Install Transmission Mount - AR22.10-P-0007SC

Engine 176 in model 223

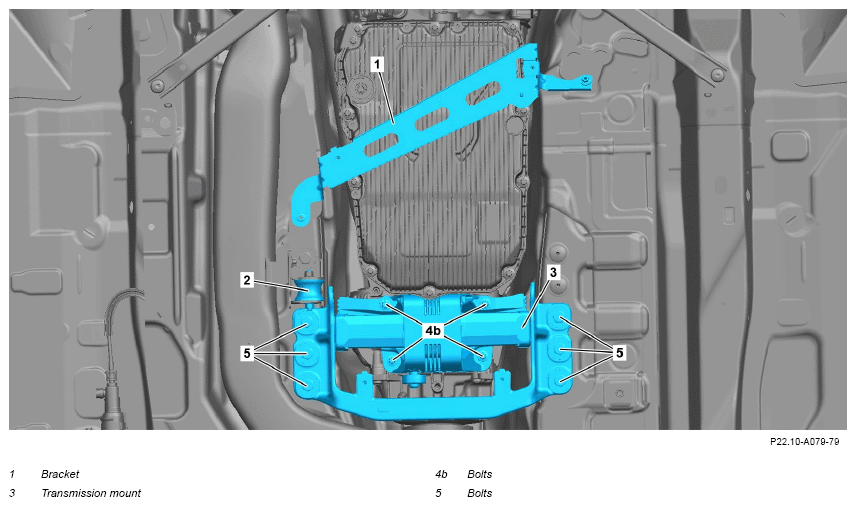

Fig 1: Transmission Mount Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove center and rear sections of lower engine compartment lining.		AR61.20-P-1105S
2	Remove bracket (1) of rear lower engine compartment lining.
3	Support the transmission.
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
4	Remove bolts (4b).	Engine 176 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw, Transmission mount to bracket/transmission	*BA22.10-P-1004-03S
5	Remove bolts (5) and remove transmission mount (3).	Engine 176 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw, Transmission carrier to Frame floor assembly	*BA22.10-P-1003-03S
6	Install in the reverse order.

ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)

Number	Designation			Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA22.10-P-1003-03S	Screw, Transmission carrier to Frame floor assembly	Stage 1	Nm	80
		Stage 2	Nm	-

ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)

Number	Designation				Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA22.10-P-1004-03S	Screw, Transmission mount to bracket/transmission	M9	Stage 1	Nm	-
			Stage 2	∠°	-
		M8		Nm	28
