Remove/Install Right Inerting System Line In Engine Compartment - AR86.10-P-0419S

Model 223 with engine 176

with code 2U8 (Alternative refrigerant)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

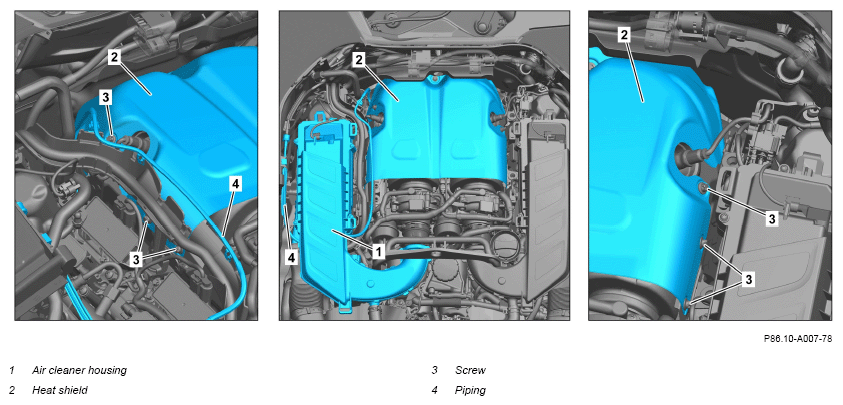

1	Remove right air filter housing (1).		AR09.10-P-1152SC
2	Remove screws (3).
3	Remove heat shield (2).
4	Remove screws (5).	Pipe for inerting to engine	*BA86.10-P-1002-03G

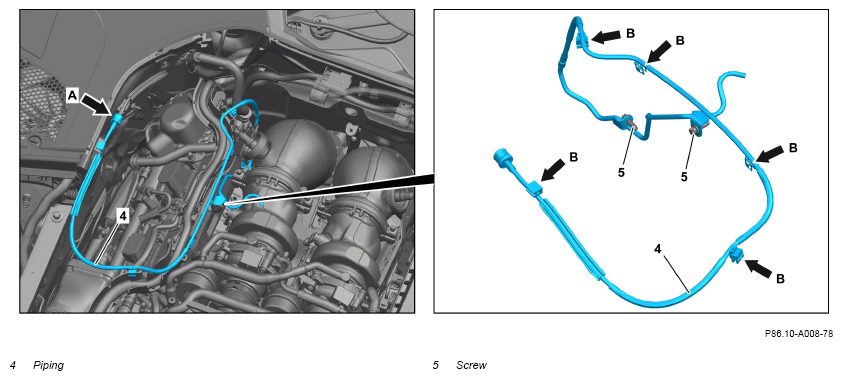

5	Release and disconnect piping (4), unclip, and remove.	Replace clamp on pipeline (4).
6	Install in the reverse order.

INERTING

Number	Designation					Model 223
BA86.10-P-1002-03G	Pipe for inerting to engine	M6	Screw		Nm	8
			Nut	Stage 1	Nm	8
				Stage 2	∠°	-
