Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - AR83.30-P-1760S

Model 223

Courtesy of MERCEDES-BENZ USA

	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
Notice	Procedure for a damaged or leaky air conditioning system		AH83.30-P-0004-01KOA
	Notes on handling refrigerant R134a		AH83.30-P-0003-01KOA
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Draining

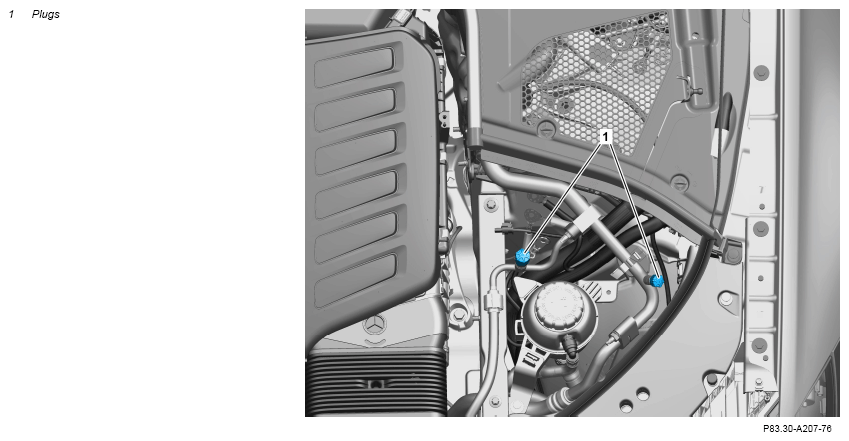

1	Remove plugs (1).
2	Connect air conditioning service unit filler connections to corresponding service connections.
	000 588 15 82 00 Air conditioning service unit R134a		WS83.00-P-0064B
	000 588 18 82 00 R1234yf air conditioning service unit	When operating the air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer.	WS83.00-P-0066B
3	Extract refrigerant.
4	Note down quantity of extracted refrigerant as well as compressor oil.
	Evacuate
5	Clean refrigerant and evacuate refrigerant circuit.
6	Conduct vacuum test using air conditioning service unit.
	Filling
7	Add new compressor oil to the refrigerant circuit according to the oil filling capacity noted during extraction.
	Compressor oils (specification 362.1)	Only use the approved compressor oil. If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period. Daimler AG reserves the right to perform reexaminations. Correct oil filling quantity in refrigerant circuit. An incorrectly measured oil filling capacity leads to damage to the refrigerant compressor. Depending on the repair case, correct oil filling capacity accordingly.	BB00.40-P-0362-01A
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	*BF83.55-P-1002-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity after replacement of condenser	*BF83.55-P-1003-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity after replacement of evaporator	*BF83.55-P-1004-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity after replacement of suction line	*BF83.55-P-1005-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity after replacement of pressure line	*BF83.55-P-1006-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity after replacement of refrigerant compressor	*BF83.55-P-1007-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity with detectable leakage	*BF83.55-P-1008-02D
		Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) Additional oil filling quantity after replacement of desiccant cartridge	*BF83.55-P-1009-02D
8	Fill air conditioning.	Air conditioning/automatic air conditioning Air conditioning/automatic air conditioning	*BF83.00-P-1001-01S
	Check
9	Conduct pressure test using air conditioning service unit.	If there is a pressure drop during the pressure test, ↓ Check air conditioning system for leaks.
			AR83.30-P-1761S
10	Remove filler connections.
11	Attach plugs (1).

AIR CONDITIONING AND AUTOMATIC AIR CONDITIONING

Number	Designation			Model 223 (except 223.068/168) except code 2U8 (Alternative refrigerant) except code 582 (Air conditioning, rear)	Model 223 (except 223.068/168) with code 582 (Air conditioning, rear) except code 2U8 (Alternative refrigerant)
BF83.00-P-1001-01S	Air conditioning/automatic air conditioning Air conditioning/automatic air conditioning	Filling capacity for refrigerant Filling capacity for refrigerant	g	700	790
		Specifications R134a		BB00.40-P-0361-00A	BB00.40-P-0361-00A
		Specifications R1234yf		-	-

AIR CONDITIONING AND AUTOMATIC AIR CONDITIONING

Number	Designation			Model 223.068/168 except code 2U8 (Alternative refrigerant) except code 582 (Air conditioning, rear)	Model 223.068/168 with code 582 (Air conditioning, rear) except code 2U8 (Alternative refrigerant)
BF83.00-P-1001-01S	Air conditioning/automatic air conditioning Air conditioning/automatic air conditioning	Filling capacity for refrigerant Filling capacity for refrigerant	g	730	810
		Specifications R134a		BB00.40-P-0361-00A	BB00.40-P-0361-00A
		Specifications R1234yf		-	-

AIR CONDITIONING AND AUTOMATIC AIR CONDITIONING

Number	Designation			Model 223 (except 223.068/168) with code 2U8 (Alternative refrigerant) except code 582 (Air conditioning, rear)	Model 223 (except 223.068/168) with code 2U8 (Alternative refrigerant) with code 582 (Air conditioning, rear)
BF83.00-P-1001-01S	Air conditioning/automatic air conditioning Air conditioning/automatic air conditioning	Filling capacity for refrigerant Filling capacity for refrigerant	g	670	750
		Specifications R134a		-	-
		Specifications R1234yf		BB00.40-P-0361-01A	BB00.40-P-0361-01A

AIR CONDITIONING AND AUTOMATIC AIR CONDITIONING

Number	Designation			Model 223.068/168 with code 2U8 (Alternative refrigerant) except code 582 (Air conditioning, rear)	Model 223.068/168 with code 2U8 (Alternative refrigerant) with code 582 (Air conditioning, rear)
BF83.00-P-1001-01S	Air conditioning/automatic air conditioning Air conditioning/automatic air conditioning	Filling capacity for refrigerant Filling capacity for refrigerant	g	700	780
		Specifications R134a		-	-
		Specifications R1234yf		BB00.40-P-0361-01A	BB00.40-P-0361-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1002-02D	Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	Compressor oil	cm3	40	40
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1003-02D	Additional oil filling quantity after replacement of condenser	Compressor oil	cm3	20	20
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1004-02D	Additional oil filling quantity after replacement of evaporator	Compressor oil	cm3	40	40
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1005-02D	Additional oil filling quantity after replacement of suction line	Compressor oil	cm3	20	20
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1006-02D	Additional oil filling quantity after replacement of pressure line	Compressor oil	cm3	20	20
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1007-02D	Additional oil filling quantity after replacement of refrigerant compressor	Compressor oil	cm3	20	20
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1008-02D	Additional oil filling quantity with detectable leakage	Compressor oil	cm3	20	20
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A

REFRIGERANT COMPRESSOR

Number	Designation			Model 223 with engine 176, 256 Model 223 with engine 656 except code B01 (48V technology)	Model 223 with engine 656 with code B01 (48V technology)
BF83.55-P-1009-02D	Additional oil filling quantity after replacement of desiccant cartridge	Compressor oil	cm3	20	20
		Specifications		BB00.40-P-0362-01A	BB00.40-P-0362-01A
