Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05SC
Engine 176 in model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
48 V ON-BOARD ELECTRICAL SYSTEM SUBHARNESS
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA15.18-P-1004-03D | Nut, 48 V subharness to refrigerant compressor/electric motor/firewall | Nm | 16 |
48 V ON-BOARD ELECTRICAL SYSTEM SUBHARNESS
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA15.18-P-1005-03D | Nut, 48 V subharness to body | Nm | 8 |

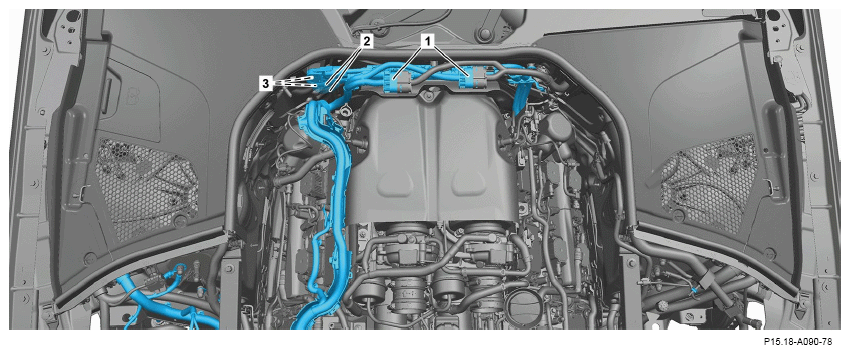

- Release and disconnect electrical connectors (1).
- Remove electrical wiring harness from cable duct (8) and fix in place on vehicle with suitable means.
- Open covers (2).
- Remove nuts (3)
.
- Remove electric lines of 48 V on-board electrical system from stud bolts.

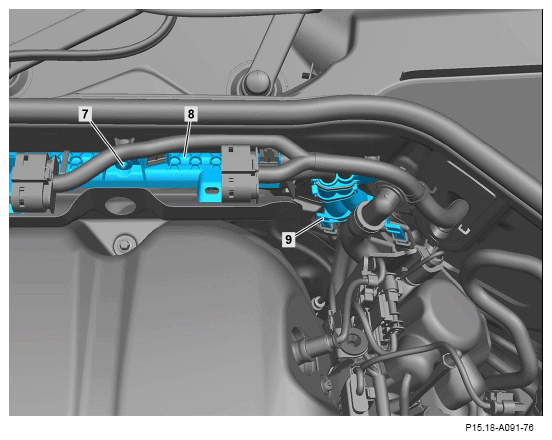

- Remove screw (7).
- Remove cable duct (8) and holder (9) from vehicle and fix in place on engine with suitable means.

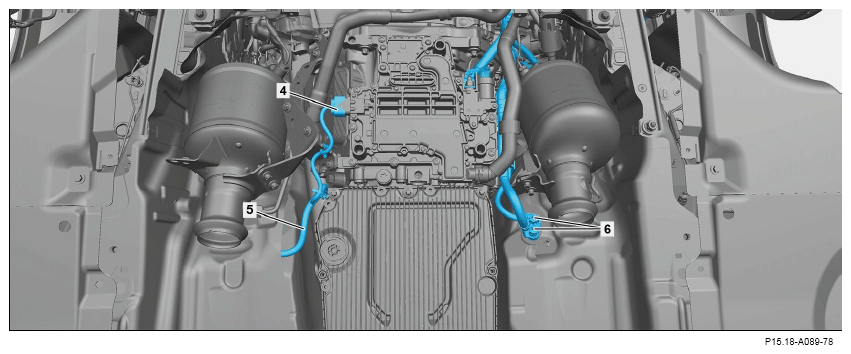

- Remove covers and remove nuts (6)
- Remove electric lines from stud bolts.
- Release and disconnect electrical connector (4).
- Detach electrical wiring harness (5) from transmission.
- Connect in reverse order.
