Remove/Install Front Axle Brake Caliper - AR42.10-P-0070S
Model 223
except code B06 (Silver brake calipers)
except code B07 (AMG - ceramic brake system)
except code U70 (red-painted brake callipers)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||

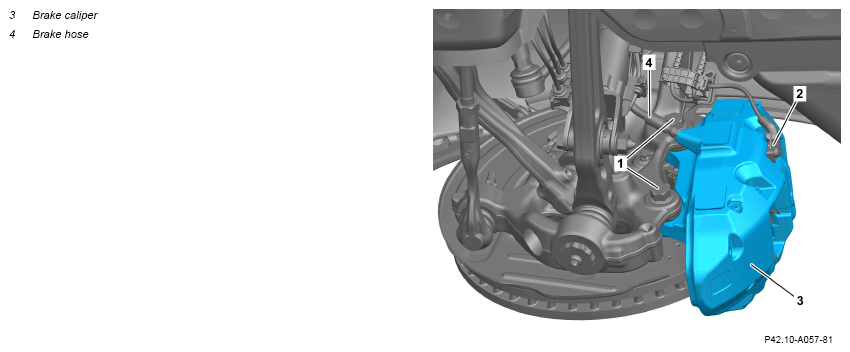

| 1 | Remove brake hose (4). | Model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) except code Z07 (B7 armoring on special protection version) |
|
| AR42.10-P-0026S | |||
| 2 | Remove brakepads and take off brake caliper (3). | Model 223 with code Z07 (B7 armoring on special protection version) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) |
AR42.10-P-1610SG |
| Model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) except code Z07 (B7 armoring on special protection version) |
AR42.10-P-1610S | ||
| Check | |||
| 3 | Check brake caliper (3) and dust boots of brake pistons for leak tightness and damage. | If there is a problem, ↓ replace brake caliper (3). |
|
| 4 | Check brake disks for wear and condition. | ||
| If there is a problem, ↓ Replace brake disks. |
AP42.10-P-4256A | ||
| AR42.10-P-0230S | |||
| Install | |||
| 5 | Install brakepads and brake caliper (3). | Model 223 with code Z07 (B7 armoring on special protection version) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) |
AR42.10-P-1610SG |
| Model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) except code Z07 (B7 armoring on special protection version) |
AR42.10-P-1610S | ||
| 6 | Install brake hose (4). | Model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) except code Z07 (B7 armoring on special protection version) |
|
| AR42.10-P-0026S | |||
| 7 | Bleed brake system. | AR42.10-P-0010S | |
| Check | |||
| 8 | Perform brake test on test stand. | ||
| AP42.00-P-4290BS |
