Retrofit Reversing Camera - AN54.65-S-0030EC

Model 447.6

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code XM0 (Facelift)

Model 447.6

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Model 447.7

With Code D57 (Full-width partition wall on C-pillar with window)

With Code D57 (Full width partition wall on C pillar with window)

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code V23 (Interior trim, premium version)

With Code W54 (2-wing rear-end door, 270 degrees)

With Code ZK4 (Mixto)

Except Code XM0 (Facelift)

Model 447.7

With Code D57 (Full-width partition wall on C-pillar with window)

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code V23 (Interior trim, premium version)

With Code W54 (2-wing rear-end door, 270 degrees)

With Code ZK4 (Mixto)

Except Code XM0 (Facelift)

Model 447.7

With Code D57 (Full-width partition wall on C-pillar with window)

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code V23 (Interior trim, premium version)

With Code W54 (2-wing rear-end door, 270 degrees)

With Code ZK4 (Mixto)

Except Code XM0 (Facelift)

Model 447.7

With Code D57 (Full-width partition wall on C-pillar with window)

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code V23 (Interior trim, premium version)

With Code W54 (2-wing rear-end door, 270 degrees)

With Code ZK4 (Mixto)

Except Code XM0 (Facelift)

Model 447.7

With Code D57 (Full-width partition wall on C-pillar with window)

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code V23 (Interior trim, premium version)

With Code W54 (2-wing rear-end door, 270 degrees)

With Code ZK4 (Mixto)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code W54 (2-wing rear-end door, 270 degrees)

Except Code V23 (Interior trim, premium version)

Except Code XM0 (Facelift)

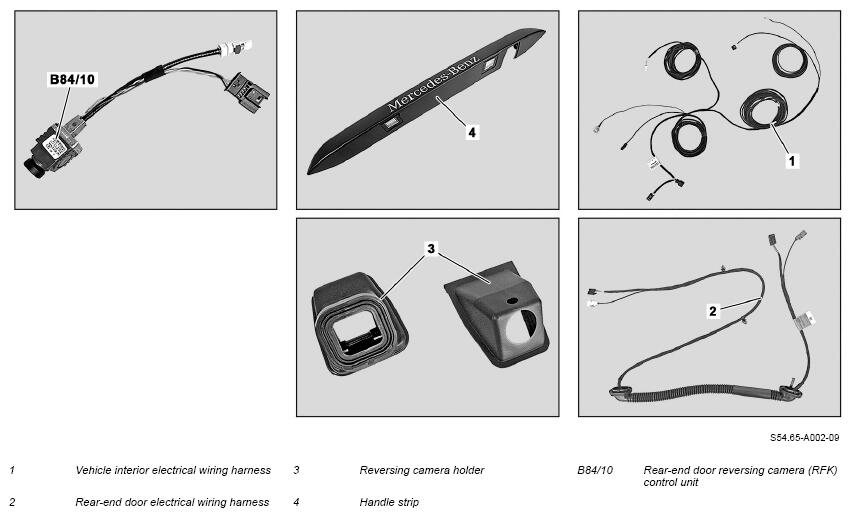

G16483869Courtesy of MERCEDES-BENZ USA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on carrying out repair work in the vehicle interior   AH68.00-D-0001-01KOS
REMOVING Remove
1 Detach ground line from on-board electrical system battery.
REFER TO TESTING & REPAIR     AR54.10-S-0003E
2 Remove license plate lamp holder.
REFER TO TESTING & REPAIR   IMPORTANTThe removed handle strip (4) is no longer  required. AR72.20-S-1010E
3 Remove rear bumper.
REFER TO TESTING & REPAIR     AR88.20-S-2200E
4 Remove rear headliner.
REFER TO TESTING & REPAIR   Model 447.7 with code D57 (Full-width partition wall at C-pillar with window) with code V23 (Interior panel, superior version) except code ZH6 (Marco Polo ACTIVITY) AR68.30-S-7608E
REFER TO TESTING & REPAIR   Model 447.6 with code VD2 (Standard headliner at B-D-pillar) Model 447.7 except code V23 (Interior panel, superior version) AR68.30-S-7618E
5 Remove right A-pillar trim.
REFER TO TESTING & REPAIR     AR68.30-S-4050E
6 Remove front headliner.
REFER TO TESTING & REPAIR   Model 447.6/7 with code SH9 (Window airbag for driver and front passenger) AR68.30-S-7607E
7 Remove right cover below instrument panel.
REFER TO TESTING & REPAIR   Model 447.6/7 with code LC7 (Front footwell lighting) AR68.10-S-1520E
8 Remove radio (Audio) (N87/2).
REFER TO TESTING & REPAIR   Model 447.6/7 with code EN7 (Audio 15) except AR82.60-S-7502E
    code XM0 (Facelift) except code XM7 (Facelift II) IMPORTANT Do not detach electrical connections.
INSTALLING Install
9 Retrofit electrical wiring harness to rear-end door (2). IMPORTANTCommercially available devices/tools
Hand-held drill
Stepped drill bit
Wet and dry vacuum cleaner		 AN54.65-S-0030-11EB
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
10 Retrofit vehicle interior electrical wiring harness (1).   AN54.65-S-0030-09EC
REFER TO BASIC KNOWLEDGE Assignment of right footwell firewall fuse and relay module Model 447.6 except code XM0 (Facelift) Model 447.7 except code XM0 (Facelift) GF54.15-S-1256-39TRA
    TORQUE SPECIFICATION M8 *BA00.10-Z-1003-01KOA
    SPECIAL TOOL Long wedge Fig 1
11 Install radio (audio) (N87/2).
REFER TO TESTING & REPAIR   Model 447.6/7 with code EN7 (Audio 15) except code XM0 (Facelift) except code XM7 (Facelift II) AR82.60-S-7502E
12 Install right cover below instrument panel.
REFER TO TESTING & REPAIR   Model 447.6/7 with code LC7 (Front footwell lighting) AR68.10-S-1520E
13 Install front headliner.
REFER TO TESTING & REPAIR   Model 447.6/7 with code SH9 (Window airbag for driver and front passenger) AR68.30-S-7607E
14 Install right A-pillar trim.
REFER TO TESTING & REPAIR     AR68.30-S-4050E
15 Install rear headliner.
REFER TO TESTING & REPAIR   Model 447.7 with code D57 (Full-width partition wall at C-pillar with window) with code V23 (Interior panel, superior version) except code ZH6 (Marco Polo ACTIVITY) AR68.30-S-7608E
REFER TO TESTING & REPAIR   Model 447.6 with code VD2 (Standard headliner at B-D-pillar) Model 447.7 except code V23 (Interior panel, superior version) AR68.30-S-7618E
16 Install rear bumper.
REFER TO TESTING & REPAIR     AR88.20-S-2200E
17 Retrofit reversing camera holder (3) on rear-end door reversing camera (RFK) (B84/10) control unit. IMPORTANT To do so, fasten two-piece reversing camera holder (3) with positive engagement onto rear-end door reversing camera (RFK) control unit (B84/10).
18 Retrofit rear-end door reversing camera (RFK) control unit (B84/10) into handle strip (4). IMPORTANT To do so, clip rear-end door reversing camera (RFK) control unit (B84/10) into handle strip (4) included in parts kit.
19 Install license plate lamp holder.
REFER TO TESTING & REPAIR   IMPORTANT To do so, install removed left rear-end door license plate lamp (E19/3) and right rear-end door license plate lamp (E19/4) into handle strip (4) included in parts kit. AR72.20-S-1010E
20 Attach ground line to on-board electrical system battery.
REFER TO TESTING & REPAIR     AR54.10-S-0003E
21 Add special equipment to Vehicle Documentation System (VeDoc). IMPORTANT Designation of corresponding special equipment: Code FR8 (Reversing camera).
22 Perform SCN coding on electronic ignition lock (EZS) control unit (N73).
REFER TO TESTING & REPAIR   IMPORTANT Under the "Control unit adaptations" menu item, follow the instructions for "SCN coding". AR54.21-S-0015E
    IMPORTANT Do not remove diagnostic system yet.
23 Perform SCN coding on radio (audio) (N87/2).
REFER TO TESTING & REPAIR   IMPORTANT Under the "Control unit adaptations" menu item, follow the instructions for "SCN coding"
IMPORTANT Do not remove diagnostic system yet.		 AR54.21-S-0015E
24 Perform commissioning on rear-end door reversing camera (RFK) control unit (B84/10).
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory
IMPORTANT		 IMPORTANT In the "Control unit adaptations" menu item, follow the "Commission previously-installed control unit" instructions AD00.00-S-2000-04E
25 Remove diagnostic system.
INSPECT Check
26 Perform function check of reversing camera.
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 8.8 10.9
BA00.10-Z-1003-01KOA M8 Galvanized Nm 23 32
Phosphated Nm 21 29
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 12.9
BA00.10-Z-1003-01KOA M8 Galvanized Nm 38
Phosphated Nm 36
Fig 1: Identifying Long Wedge (115 589 03 59 00)
G07070400Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
PARTS ORDERING NOTE

Part no. Designation Quantity
KG99 Reversing camera delivery package 1
