Retrofit Reversing Camera Wiring Harness In Rear-End Door - AN54.65-S-0030-11EB

Model 447.6/7

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Model 447.6/7

With Code W54 (2-wing rear-end door, 270 degrees)

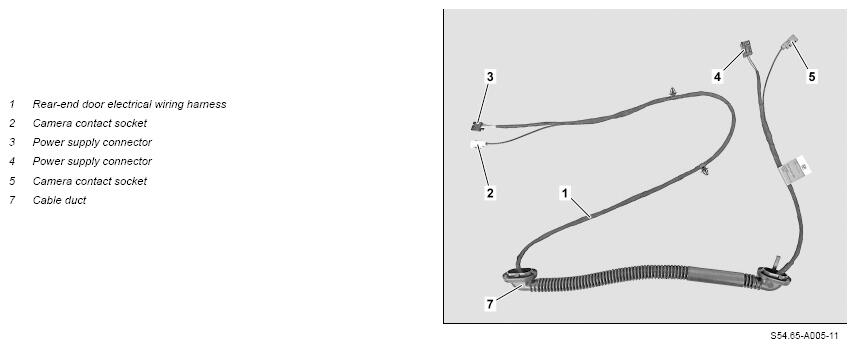

1. Remove cable duct (7) from rear-end door electrical wiring harness (1).

   The cable duct (7) is no longer required.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

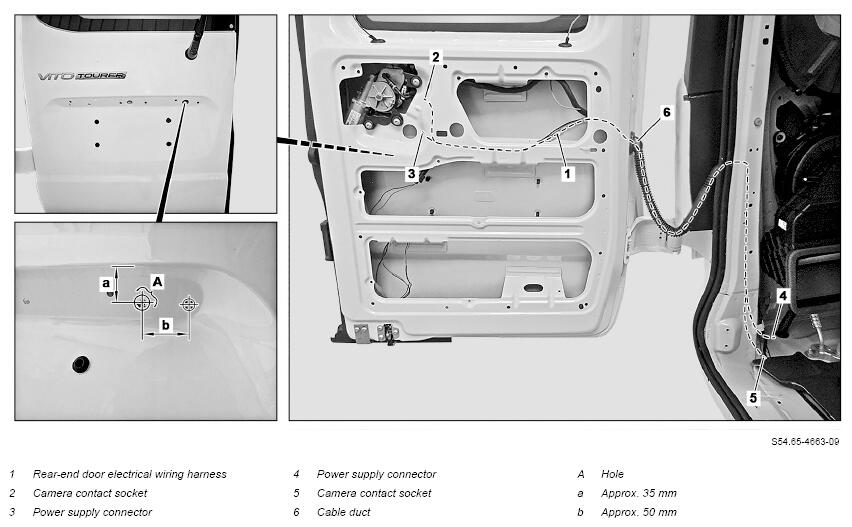

2. Mark hole (A) on rear-end door.
3. Drill hole (A) on rear-end door with ø 20 mm.
4. Commercially available devices/tools

   Hand drill

   Graduated drill

5. Deburr hole (A) in rear-end door on both sides.
6. Remove drilling chips.

   Commercially available devices/tools  Wet and dry vacuum cleaner

7. Coat inside of hole (A) in rear-end door with zinc dust paint.
8. Route rear-end door electrical wiring harness (1), as shown, from hole (A) inside cable duct (6) up to D-pillar on left.

   Do not kink the rear-end door electrical wiring harness (1) and ensure it is routed without chafing.

   This prevents damage.

9. Fasten rear-end door electrical wiring harness (1) in sections using cable ties to factory-installed electrical wiring harness.

   The camera contact socket (2) and the power supply plug connector (3) are only connected to the rear-end door reversing camera (RFK) control unit (B84/10) after the license plate lamp holder has been installed.

   The power supply plug connector (4) and camera contact socket (5) are only attached after the vehicle interior electrical wiring harness has been routed.
