Remove/Install Headliner In Load Compartment - AR68.30-S-7618E

Model 447.6/7

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove 1st row passenger bench seat	Model 447.7 with code U60 (Seats passenger compartm. 2seater bench 1st row) Model 447.7 with code U65 (Seats pass. comp. 3seat bench 1st row) Model 447.7 with code U71 (3-passenger bench seat, 1st row in rear with folding outer seat) Model 447.7 with code US1 (2-passenger bench seat, comfort, 1st rear row) Model 447.7 with code US4 (3-passenger comfort bench seat, 1st row, folding outer seat) MODEL 447.7 with CODE U60 (Passenger compartment seats, 2-passenger bench seat, 1st row) MODEL 447.7 U65 (Passenger compartment seats, 3-passenger bench seat, 1st row) MODEL 447.7 U71 (3-passenger bench seat, 1st row with folding outer seat)	AR91.21-S-4425E
		Model 447.7 with code US1 (2-passenger bench seat, comfort, 1st rear row) Model 447.7 with code US4 (3-passenger comfort bench seat, 1st row, folding outer seat)	AR91.21-S-4425EE

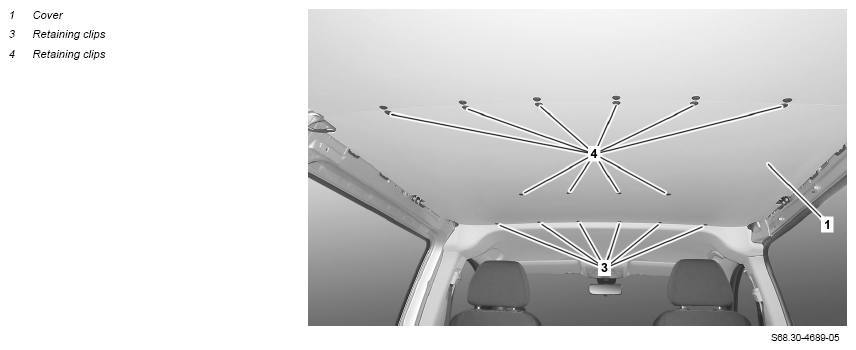

2	Remove retaining clips (3, 4)	Check retaining clips (3, 4). If retaining clips (3, 4) are damaged: ↓ Replace corresponding retaining clips (3, 4).

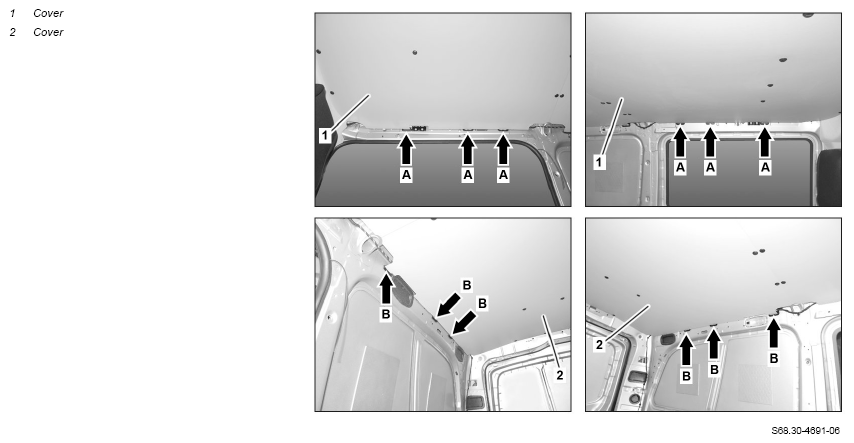

3	Detach paneling (1) at guides (arrows A) and remove	Ensure that paneling (1) is seated correctly in brackets (arrows A).

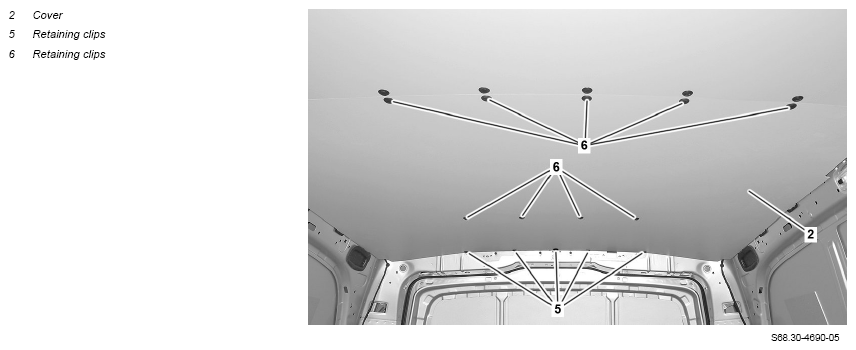

4	Remove retaining clips (5, 6)	Check retaining clips (5, 6). If retaining clips (5, 6) are damaged: ↓ Replace corresponding retaining clips (5, 6).
5	Detach paneling (2) at guides (arrows B) and remove	Ensure that paneling (2) is seated correctly in brackets (arrows B).
6	Install in the reverse order
