Retrofit Reversing Camera - AN54.65-S-0030EB

Model 447.7

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code V23 (Interior trim, premium version)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code V23 (Interior trim, premium version)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code V23 (Interior trim, premium version)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code V23 (Interior trim, premium version)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code XM0 (Facelift)

Model 447.7

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code V23 (Interior trim, premium version)

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove
1	Detach ground line from on-board electrical system battery.
			AR54.10-S-0003E
2	Remove license plate lamp holder.
		The removed handle strip (4) is no longer required.	AR72.20-S-1010E
3	Remove rear left side trim in rear passenger compartment.
			AR68.30-S-1206E
4.1	Remove vehicle tool kit mount.	Model 447.7 with code E28 (Additional battery for retrofit consumers) with code RR6 (Spare wheel with jack) Model 447.7 with code E28 (Additional battery for retrofit consumers) with code Y36 (Jack) Model 447.7 with code Q24 (NAFTA trailer crossmember, trailer load 5000Ibs) with code RR6 (Spare wheel with jack) Model 447.7 with code Q50 (Trailer coupling with removable ball head) with code RR6 (Spare wheel with jack) Model 447.7 with code Q50 (Trailer coupling with removable ball head) with code Y36 (Jack) Model 447.7 with code RR6 (Spare wheel with jack) with code SB6 (Swiveling comfort front passenger seat) Model 447.7 with code RR6 (Spare wheel with jack) with code ZG2 (Permanent all-wheel drive) Model 447.7 with code SB6 (Swiveling comfort front passenger seat) with code Y36 (Jack) Model 447.7 with code Y36 (Jack) with code ZG2 (Permanent all-wheel drive)
			AR68.30-S-5020E
4.2	Remove storage compartment in right rear passenger compartment.	Model 447.7 except code E28 (Additional battery for retrofit consumers) except code Q50 (Trailer coupling with removable ball head) except code SB6 (Swiveling comfort front passenger seat) except code ZG2 (Permanent all-wheel drive)
			AR68.00-S-0009E
4.3	Remove rear right side trim in rear passenger compartment.	Model 447.7 with code ZG2 (Permanent all-wheel drive) except code E28 (Additional battery for retrofit consumers) except code RR6 (Spare wheel with jack) except code SB6 (Swiveling comfort front passenger seat) except code Y36 (Jack)
			AR68.30-S-1206E
5	Remove rear-end center section cover.
		Model 447.7 with code V33 (Passenger compartment floor covering (carpet)) Model 447.7 with code V41 (Passenger compartment floor covering)	AR68.30-S-4785E
6	Remove rear bumper.
			AR88.20-S-2200E
7	Remove door sill panel from sliding door.
			AR68.30-S-1312E
8	Remove lower B-pillar trim at right.
			AR68.30-S-4700E
9	Remove door sill panel on front passenger side.
			AR68.30-S-4100E
10	Remove trim in right footwell.
			AR68.30-S-4030E
11	Remove right cover below instrument panel.
		Model 447.7 with code LC7 (Front footwell lighting)	AR68.10-S-1520E
12	Remove radio (Audio) (N87/2).
		Model 447.7 with code EN7 (Audio 15) except code XM0 (Facelift) except code XM7 (Facelift II) Do not detach electrical connections.	AR82.60-S-7502E
	Install
13	Retrofit electrical wiring harness to rear-end door (2).	Commercially available devices/tools  Hand-held drill Stepped drill bit Wet and dry vacuum cleaner	AN54.65-S-0030-11EB
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
14	Retrofit vehicle interior electrical wiring harness (1).		AN54.65-S-0030-09EB
	Assignment of right footwell firewall fuse and relay module	Model 447.7 except code XM0 (Facelift)	GF54.15-S-1256-39TRA
		M8	*BA00.10-Z-1003-01KOA
		Long wedge	Fig 1
15	Install radio (audio) (N87/2).
		Model 447.7 with code EN7 (Audio 15) except code XM0 (Facelift) except code XM7 (Facelift II)	AR82.60-S-7502E
16	Install right cover below instrument panel.
		Model 447.7 with code LC7 (Front footwell lighting)	AR68.10-S-1520E
17	Install trim in right footwell.
			AR68.30-S-4030E
18	Install front passenger side door sill panel.
			AR68.30-S-4100E
19	Install lower B-pillar trim at right.
			AR68.30-S-4700E
20	Install door sill panel on sliding door.
			AR68.30-S-1312E
21	Install rear bumper.
			AR88.20-S-2200E
22	Install rear-end center section cover.
		Model 447.7 with code V33 (Passenger compartment floor covering (carpet)) Model 447.7 with code V41 (Passenger compartment floor covering)	AR68.30-S-4785E
23.1	Install vehicle tool kit mount.	Model 447.7 with code E28 (Additional battery for retrofit consumers) with code RR6 (Spare wheel with jack) Model 447.7 with code E28 (Additional battery for retrofit consumers) with code Y36 (Jack) Model 447.7 with code Q24 (NAFTA trailer crossmember, trailer load 5000Ibs) with code RR6 (Spare wheel with jack) Model 447.7 with code Q50 (Trailer coupling with removable ball head) with code RR6 (Spare wheel with jack) Model 447.7 with code Q50 (Trailer coupling with removable ball head) with code Y36 (Jack) Model 447.7 with code RR6 (Spare wheel with jack) with code SB6 (Swiveling comfort front passenger seat) Model 447.7 with code RR6 (Spare wheel with jack) with code ZG2 (Permanent all-wheel drive) Model 447.7 with code SB6 (Swiveling comfort front passenger seat) with code Y36 (Jack) Model 447.7 with code Y36 (Jack) with code ZG2 (Permanent all-wheel drive)
			AR68.30-S-5020E
23.2	Remove storage compartment in right rear passenger compartment.	Model 447.7 except code E28 (Additional battery for retrofit consumers) except code Q50 (Trailer coupling with removable ball head) except code SB6 (Swiveling comfort front passenger seat) except code ZG2 (Permanent all-wheel drive)
			AR68.00-S-0009E
23.3	Install rear right side trim in rear passenger compartment.	Model 447.7 with code ZG2 (Permanent all-wheel drive) except code E28 (Additional battery for retrofit consumers) except code RR6 (Spare wheel with jack) except code SB6 (Swiveling comfort front passenger seat) except code Y36
			AR68.30-S-1206E
24	Install rear left side trim in rear passenger compartment.
			AR68.30-S-1206E
25	Retrofit reversing camera holder (3) on rear-end door reversing camera (RFK) (B84/10) control unit.	To do so, fasten two-piece reversing camera holder (3) with positive engagement onto rear-end door reversing camera (RFK) control unit (B84/10).
26	Retrofit rear-end door reversing camera (RFK) control unit (B84/10) into handle strip (4).	To do so, clip rear-end door reversing camera (RFK) control unit (B84/10) into handle strip (4) included in parts kit.
27	Install license plate lamp holder.
		To do so, install removed left rear-end door license plate lamp (E19/3) and right rear-end door license plate lamp (E19/4) into handle strip (4) included in parts kit.	AR72.20-S-1010E
28	Attach ground line to on-board electrical system battery.
			AR54.10-S-0003E
29	Add special equipment to Vehicle Documentation System (VeDoc).	Designation of corresponding special equipment: Code FR8 (Reversing camera).
30	Perform SCN coding on electronic ignition lock (EZS) control unit (N73).
		Under the "Control unit adaptations" menu item, follow the instructions for "SCN coding".	AR54.21-S-0015E
		Do not remove diagnostic system yet.
31	Perform SCN coding on radio (audio) (N87/2).
		Under the "Control unit adaptations" menu item, follow the instructions for "SCN coding". Do not remove diagnostic system yet.	AR54.21-S-0015E
32	Perform commissioning on rear-end door reversing camera (RFK) control unit (B84/10).
	Connect STAR DIAGNOSIS and read out fault memory	In the "Control unit adaptations" menu item, follow the "Commission previously-installed control unit" instructions	AD00.00-S-2000-04E
33	Remove diagnostic system.
	Check
34	Perform function check of reversing camera.

Number	Designation			8.8	10.9
BA00.10-Z-1003-01KOA	M8	Galvanized	Nm	23	32
		Phosphated	Nm	21	29

Number	Designation			12.9
BA00.10-Z-1003-01KOA	M8	Galvanized	Nm	38
		Phosphated	Nm	36

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

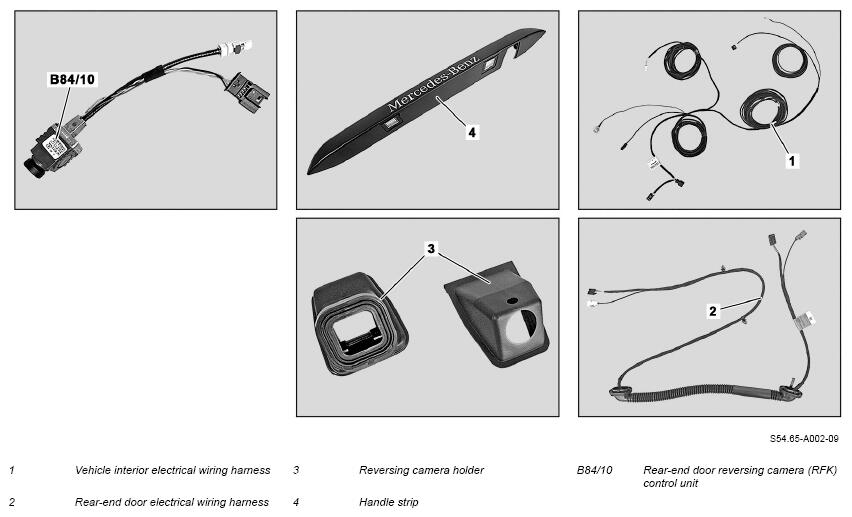

Part no.	Designation	Quantity
KG99	Reversing camera delivery package	1
