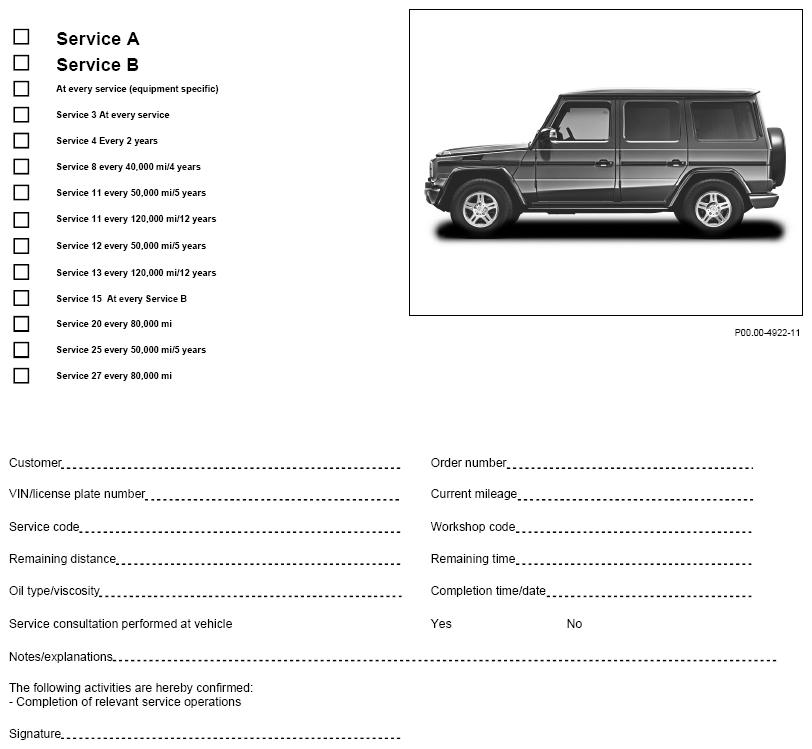

Overview For Service Sheet, USA - AP00.20-P-1240AK

Model 463.210

Model 463.260/261

Model 463.276/277

Model 463.349/350

Courtesy of MERCEDES-BENZ USA

A	B		Input condition not OK:	ⓧ
Completed
√	√
↓	↓			↓
□	□	Service reception  The reception report for service on the vehicle is available in completed form.		◦
			To be performed by the Service Advisor  (where market-specific conditions require). Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.		AP00.20-P-0009Z
□	□	Brake system  Perform brake test and enter result in table.	as of Model year 2019	◦	AP42.00-P-4290BA
□	□	Vehicle exterior  Check exterior lighting for proper operation.		◦	AP82.10-P-8252EW
	□	Check function of headlamp range adjustment.	Vehicles with dynamic LED headlamps or with the headlamp range adjuster on the exterior lights switch.	◦	AP82.10-P-8250EW
	□	Check and correct headlamp adjustment.	as of Model year 2019 For vehicles with dynamic LED headlamps, invoice adjustment of headlamps as additional operation.	◦	AP82.10-P-8260GA
□	□	Vehicle interior  Check windshield wipers, windshield washer system and headlamp cleaning system for proper operation.	as of Model year 2019	◦	AP82.30-P-8252GA
□	□	Check lamps in instrument cluster and interior lighting for proper operation.	as of Model year 2019	◦	AP54.30-P-5453G
□	□	Check first-aid kit (soft sided).	Enter expiration date here: Replace first aid bag, invoice as an additional operation.	◦	AP68.00-P-6850EW
	□	Replace activated charcoal particle filter.	as of Model year 2019		AP83.00-P-8350GA
□	□	Trunk  Check trunk lighting for proper operation.		◦
	□	Body  Lubricate door locks.	as of Model year 2019		AP72.00-P-7221GA
□	□	Engine compartment  Hood: Check latch and safety hook for ease of movement.	as of Model year 2019	◦	AP88.40-P-8851GA
	□	Clean water drain.	as of Model year 2019		AP82.35-P-8232G
□	□	Brake system: Check fluid level.	as of Model year 2019	◦	AP42.10-P-4210GA
□	□	Check air flap in engine compartment.	Engine 176	◦	AP20.00-P-2052GA
			Engine 177		AP20.00-P-2052D
□	□	Windshield washer system: Check/correct fluid level.	as of Model year 2019 When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8210GA
	□	Check low-temperature circuit coolant level.	Engine 176, 177	◦	AP20.30-P-2052F
□		Check all visible parts in upper area of engine compartment for damage and fluid loss.	as of Model year 2019	◦	AP00.20-P-0055GA
	□	Check all visible parts in engine compartment for damage and fluid loss.	as of Model year 2019	◦	AP00.20-P-0055GA
□	□	Replace dust filter.	as of Model year 2019		AP83.00-P-8381GX
	□	Check poly-V-belt in visible area for signs of wear.	Engine 264, 656	◦	AP13.22-P-1352EW
	□	Underside of vehicle  Check visible area of poly-V-belts for wear.	Engine 176, 177	◦	AP13.22-P-1352B
	□	Check all visible parts of vehicle underside for damage and fluid loss.	as of Model year 2019 The country-specific regulations for mobility and body shell complaints apply.	◦	AP00.20-P-0054GA
	□	Check condition of steering and tie rods.	as of Model year 2019	◦	AP46.00-P-4651GA
	□	Check condition of front axle and front axle joints.	as of Model year 2019	◦	AP33.10-P-3358GA
	□	Check condition of propeller shafts.		◦
	□	Check condition of rear axle and rear axle ball joints.	as of Model year 2019	◦	AP41.10-P-4154GA
	□	Check condition of suspension struts or shock absorbers and springs.	as of Model year 2019	◦	AP35.20-P-3552GA
			as of Model year 2019		AP32.25-P-3255GA
	□	Check tires for damage and crack formation, and enter result in table.	as of Model year 2019	◦	AP40.10-P-4051EW
□	□	Tires  Correct tire pressure and enter set tire pressure in table.		◦
□	□	Check/correct spare wheel tire pressure an enter set tire pressure in table.	as of Model year 2019 d	◦	AP40.15-P-4061A
□	□	Vehicle interior  At every service (equipment specific) Replace battery for KEYLESS-GO key.	as of Model year 2019 After consultation with customer.		AP40.15-P-4061A
□	□	External refueling  At every service (equipment specific) AdBlue® container: Top up fluid level.	After consultation with customer. With code (M020) BLUETEC		AP49.20-P-0100A
□	□	Engine compartment  Service 3 At every service Engine: Change oil and oil filter.
			Engine 176		AP18.00-P-0101GE
			Engine 177		AP18.00-P-0101GDD
			Engine 264		AP18.00-P-0101G
			Engine 656		AP18.00-P-0101OIG
□	□	Engine compartment  Service 4 Every 2 years  Brake system: Replace brake fluid.	as of Model year 2019		AP42.00-P-4280GA
□	□	Engine compartment  Service 8 every 40, 000 mi/4 years  Replace air filter element.
			Engine 176		AP09.10-P-0980I
			Engine 177		AP09.10-P-0980K
			Engine 264		AP09.10-P-0980EWO
			Engine 656		AP09.10-P-0980J
□	□	Underside of vehicle  Service 11 every 50, 000 mi/5 years  Replace fuel filter.	Engine 656		AP47.20-P-0780GXA
□	□	Underside of vehicle  Service 11 every 120, 000 mi/12 years  Replace fuel filter.	Engine 176, 177, 264		AP47.20-P-0780GB
□	□	Engine compartment  Service 12 every 50, 000 mi/5 years  Replace spark plugs.	Engine 176, 177		AP15.10-P-1580C
			Engine 264		AP15.10-P-1580MCU
□	□	Underside of vehicle  Service 13 every 120, 000 mi/12 years  Replace coolant in main circuit.	Engine 176, 177, 264, 656		AP20.00-P-2082GA
□	□	Replace low-temperature circuit coolant.	Engine 176, 177		AP20.00-P-2083C
	□	Vehicle exterior  Service 15 At every Service B  Trailer hitch: Check condition and operation	With code Q55 (Trailer coupling with ball head) or with code Q59 (Trailer coupling, removable)	◦	AP31.11-P-3152GA
□	□	Underside of vehicle  Service 20 every 80, 000 mi  Automatic transmission: Change oil and oil filter.	Transmission 725.0		AP27.00-P-2702GA
□	□	Underside of vehicle  Service 25 every 50, 000 mi/5 years  Front axle differential: Change oil.	as of Model year 2019		AP33.00-P-3301GA
□	□	Rear axle differential: Change oil.	as of Model year 2019		AP35.00-P-3501GA
□	□	Underside of vehicle  Service 27 every 80, 000 mi  Transfer case: Change oil.	Transmission 725.0		AP28.00-P-2801GA
