Check Engine Compartment Air Flap - AP20.00-P-2052D
Engine 177 in model 167, 213, 217, 222, 253, 290, 463
Shown on engine 177.9 in model 213.0
Shown on engine cover for engine 177.9 in model 213.0
Shown on model 213.0
Shown on engine 177.9 in model 463.276
Fig 1: Engine Compartment Air Flap Components Location - Engine 177 In Model 463 (Shown On Engine 177.9 In Model 463.276)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Clean | |||
| 1 | Clean area around air flap housing (3). | ||
| Check | |||

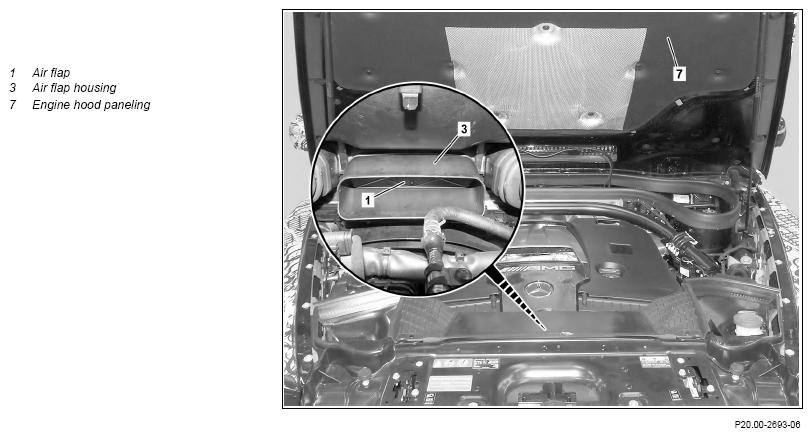

| 2 | Check air flap (i) for proper operation by opening and closing. | The air flap (1) must move freely. The engine compartment can otherwise be damaged. If problems occur, ↓ rectify the problems. |
|

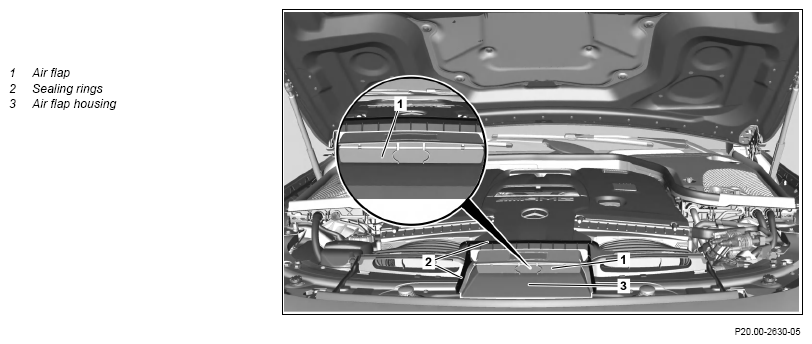

| 3 | Check seals (2) for damage, deformation and correct seating. | Engine 177 in model 167, 213, 217, 222, 253, 290 If problems occur, ↓ rectify the problems. |
|
| 4 | Check air flap housing (3) for damage, deformation and correct seating. | If problems occur, ↓ rectify the problems. |
|

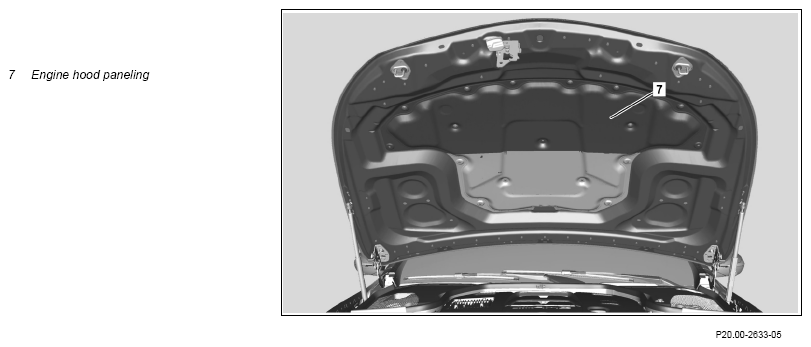

| 5 | Check hood trim (7) for damage, deformation and correct seating. | The engine hood paneling (7) must not be deformed, damaged or be incorrectly installed. The engine compartment can otherwise be damaged. If problems occur, ↓ rectify the problems. |
|
| Remove | |||
| 6 | Remove engine cover. | Engine 177 in model 167, 213, 217, 222, 253, 290, 463 | |
| Engine 177 in model 213 | AR01.10-P-2405MNE | ||
| Engine 177 in model 167, 290 | AP01.10-P-2405-01E | ||
| Engine 177 in model 463 as of model year 2019 |
AR01.10-P-2405XGC | ||
| Clean | |||

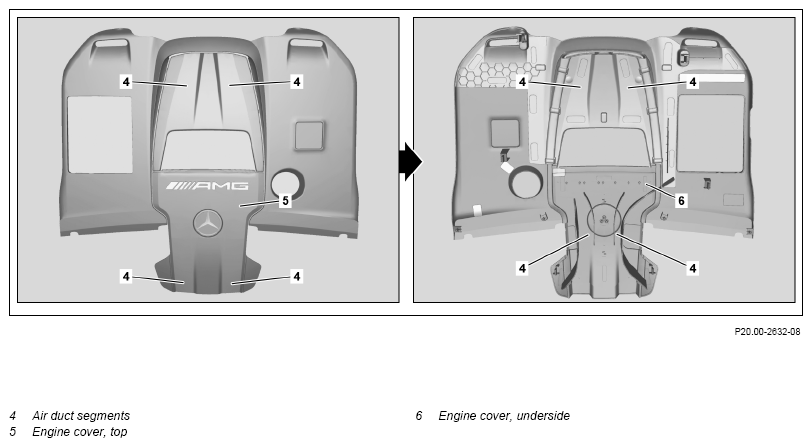

| 7 | Clean area around air duct segments (4) on upper side of engine cover (5) and lower side of engine cover (6). | ||
| Check | |||
| 8 | Check air duct segments (4) on upper side of engine cover (5) and lower side of engine cover (6) for damage. | Air duct segments (4) may not be deformed or damaged. The engine compartment can otherwise be damaged. If problems occur, ↓ rectify the problems. |
|
| Install | |||
| 9 | Install engine cover. | Engine 177 in model 167, 213, 217, 222, 253, 290, 463 | |
| Engine 177 in model 213 | AR01.10-P-2405MNE | ||
| Engine 177 in model 167, 290 | AP01.10-P-2405-01E | ||
| Engine 177 in model 463 as of model year 2019 |
AR01.10-P-2405XGC |
