Lubricate Door Locks - AP72.00-P-7221GA
Model 463
as of model year 2019

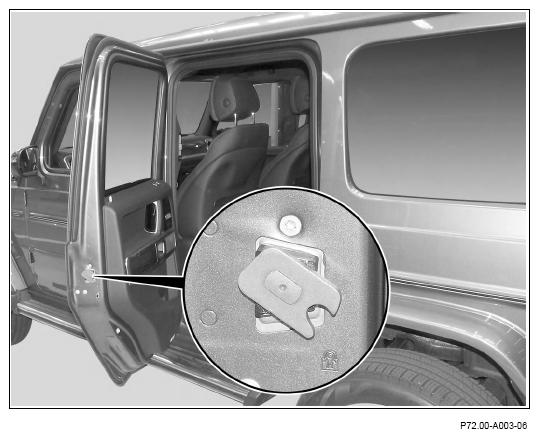

Shown on model 463.276, rear door
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of explosion from pressurized spray cans | Protect cans from direct sunlight and temperatures above 50°C | AS00.00-Z-0015-01A | |
| Clean | |||
| 1 | Clean all door locks. | ||
| Lubricate | |||
| 2 | Lubricate all door locks. | Special lubricant, spray | *BR00.45-Z-1077-06A |
| Clean | |||
| 3 | Clean area around all door locks. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1077-06A | Special lubricant, spray | A 000 989 35 60 |
