Front Axle - Oil Change - AP33.00-P-3301GA
Model 463
as of model year 2019
Shown on model 463.349
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Remove | |||
| 1 | Remove center engine compartment lining. | ||
| AR61.20-P-1105XG | |||
| Clean | |||

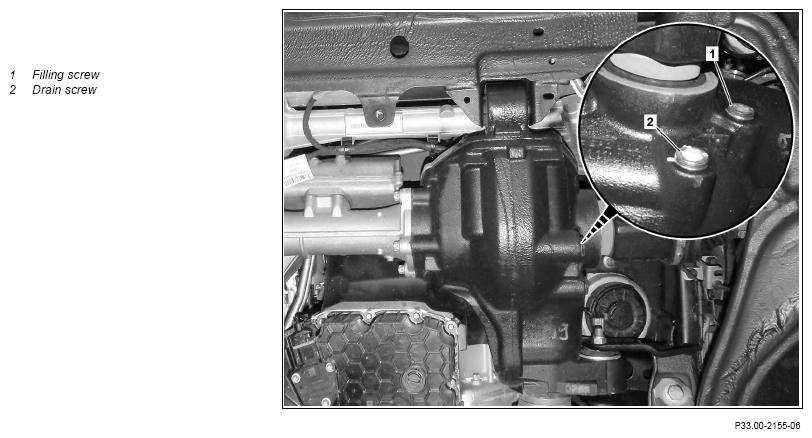

| 2 | Clean area surrounding filling screw (1) and drain screw (2). | ||
| Remove | |||
| 3 | Remove filling screw (1). | ||
| Drain off | |||
| 4 | Remove drain screw (2) and drain oil from front axle differential. | ||
| Clean | |||
| 5 | Clean drain bore in front axle differential. | Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A |
| Install | |||
| 6 | Apply a drop of sealant to start of lower thread of the new drain screw (2), and then immediately tighten new drain screw (2). | Otherwise, this may lead to leakage and consequential damage. Sealant, Omnifit 100H (50 g) |
*BR00.45-Z-1061-01A |
as of model year 2019 Oil filler screw/drain screw to front axle transmission |
*BA33.30-P-1006-03C | ||
| Pour in | |||
| 7 | Add defined oil filling capacity. | *BF33.30-P-1001-01A | |
| Clean | |||
| 8 | Clean filler bore in front axle differential. | Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A |
| Install | |||
| 9 | Apply a drop of sealant to start of lower thread of the new filling screw (1), and then immediately tighten new filling screw (1). | Otherwise, this may lead to leakage and consequential damage. Sealant, Omnifit 100H (50 g) |
*BR00.45-Z-1061-01A |
as of model year 2019 Oil filler screw/drain screw to front axle transmission |
*BA33.30-P-1006-03C | ||
| 10 | Install center engine compartment lining. | ||
| AR61.20-P-1105XG |
FRONT AXLE GEAR
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA33.30-P-1006-03C | Oil filler screw/drain screw to front axle transmission | M24 | Nm | 90 |
DIFFERENTIAL
| Number | Designation | Model 463.260/261/276/277/349 as of model year 2019 | ||
|---|---|---|---|---|
| BF33.30-P-1001-01A | Hypoid gear oil | Filling capacity | Liter | 1, 1 |
| Specification | BB00.40-P-0235A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
