Check All Visible Parts Of Vehicle Underside For Damage And Fluid Loss - AP00.20-P-0054GA

Model 463

as of Model year 2019

G13654748Courtesy of MERCEDES-BENZ USA

Shown on Model 463.349

WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
  Notes on evaluating leakages   AH00.00-N-0011-01A
REMOVING Remove

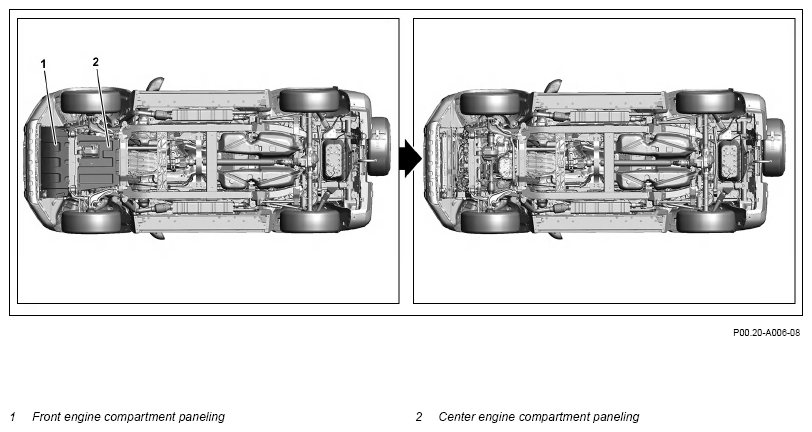

1 Remove front engine compartment lining (1) and center engine compartment lining (2).
REFER TO TESTING & REPAIR     AR61.20-P-1105XG
INSPECT Check
2 Check visible systems, powertrain components, lines, hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion. IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
IMPORTANT Brake system,
Spring elements,
Shock absorber,
Suspension lines and sensors,
Steering,
Front axle,
Front axle shafts with boots,
Front axle transmission,
Engine and mounted major assemblies,
Cooling system,
Heater and A/C system,
Body reinforcements,
Automatic transmission,
Transfer case,
Exhaust system,
Exhaust aftertreatment,
Actuator motors of exhaust gas flaps,
Heat shields,
Rear axle,
Rear axle shafts with boots,
Rear axle differential,
Fuel system.
If problems occur,
↓
rectify the problems.
IMPORTANT After obtaining special order.
3 Check visible systems, components, lines and hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion. Equipment-dependent.
IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
IMPORTANT Inerting system,
Stationary heater,
If problems occur,
↓
rectify the problems.
IMPORTANT After obtaining special order.
4 Check underfloor and visible component parts on underfloor for damage, routing, mounting and corrosion. IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
IMPORTANT Wheel well trim
Underfloor paneling,
Underfloor.
If problems occur,
↓
rectify the problems.
IMPORTANT After obtaining special order.
5 Check visible body panels for corrosion and deformation. IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
IMPORTANT Wheel well body panels,
Front axle carrier,
Rear axle carrier,
Chassis steering arms,
Underfloor body panels,
Body reinforcements.
If problems occur,
↓
rectify the problems.
IMPORTANT After obtaining special order.
6 Check underfloor paneling for damage from driving over obstacles or from bottoming damage. IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
If it is suspected that there is damage from driving over obstacles or bottoming.
↓
Check steering for mechanical damages.
If the steering is mechanically damaged,
↓
Replace steering for safety reasons.
IMPORTANT After obtaining special order.
INSTALLING Install
7 Install front engine compartment lining (1) and center engine compartment lining (2).
REFER TO TESTING & REPAIR     AR61.20-P-1105XG
