Replace Main Circuit Coolant - AP20.00-P-2082GA
Engine 176 in model 463
as of model year 2019
Engine 177, 264, 656 in model 463
Shown on engine 656 in model 463.349
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Check | |||

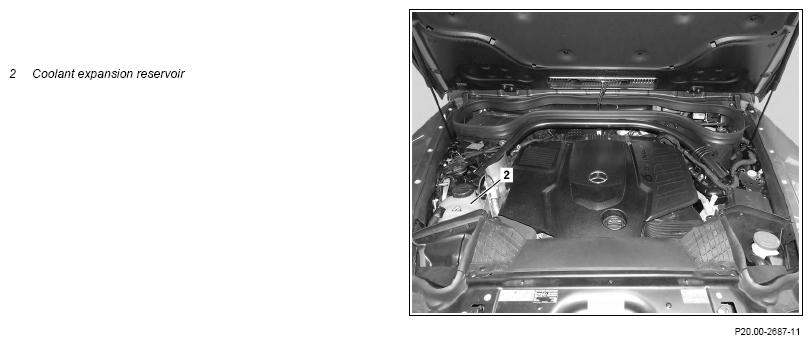

| 1 | Check coolant level in coolant expansion reservoir (2). | AP20.30-P-2050GG | |
| Drain off | |||
| 2 | Drain off coolant. | Engine 176 in model 463 as of model year 2019 Engine 177, 264, 656 in model 463 |
|
| Engine 176 in model 463 as of model year 2019 |
AR20.00-P-1142XGA | ||
| Engine 177 in model 463 as of model year 2019 |
AR20.00-P-1142XGC | ||
| Engine 264 in model 463 | AR20.00-P-1142MRO | ||
| Pour in | |||
| 3 | Pour in new coolant. | Engine 176 in model 463 as of model year 2019 Engine 177, 264, 656 in model 463 |
|
| Engine 176 in model 463 as of model year 2019 |
AR20.00-P-1142XGA | ||
| Engine 177 in model 463 as of model year 2019 |
AR20.00-P-1142XGC | ||
| Engine 264 in model 463 | AR20.00-P-1142MRO | ||
| Coolant specifications | BB00.40-P-0310-01A |
