Rear Axle - Oil Change - AP35.00-P-3501GA

Model 463

as of model year 2019

Shown on model 463.349

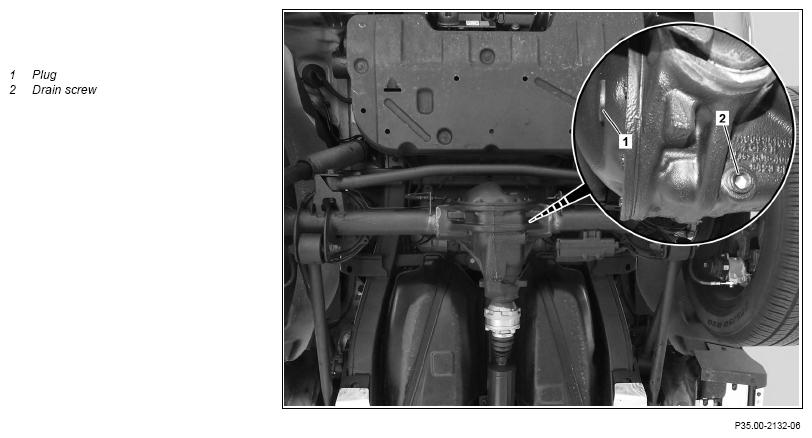

Fig 1: Rear Axle Differential Oil Drain Plug And Filling Plug Components Location - Model 463 As Of Model Year 2019 (Shown On Model 463.349)

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Preparatory activity
1	Lift vehicle with lifting platform.
			AR00.60-P-1006A
	Clean
2	Clean area around stop plug (1) and drain screw (2).
	Remove
3	Remove stop plug (1).
	Drain off
4	Remove drain screw (2) and drain oil from rear axle differential.	Dispose of old drain screw (2). Otherwise, this may lead to fluid loss and consequential damage.
	Clean
5	Clean drain bore in rear axle differential.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
6	Screw drain screw (2) tight on rear axle differential.	Replace drain screw (2) each time it is removed. Otherwise, this may lead to fluid loss and consequential damage.
	Model 463 as of model year 2019 Drain screw at rear axle housing		*BA35.30-P-1001-02A
	Pour in
7	Add defined oil filling capacity.	Model 463.260/261/276/277/349 as of model year 2019 Hypoid gear oil	*BF35.10-P-1001-01A
	Clean
8	Clean filler bore in rear axle differential.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
9	Install new stop plug.	Replace stop plug (1) after each removal. Otherwise, this may lead to fluid loss and consequential damage.
	Finishing activity
10	Lower vehicle with vehicle lift.
			AR00.60-P-1006A

REAR AXLE DRIVE

Number	Designation			Model 463 as of model year 2019
BA35.30-P-1001-02A	Drain screw at rear axle housing	Stage 1	Nm	60
BA35.30-P-1001-02A	Drain screw at rear axle housing	Stage 2	∠°	90

REAR AXLE

Number	Designation			Model 463.260/261/276/27 7/349
BF35.10-P-1001-01A	Hypoid gear oil	Filling capacity	Liter	1, 8
BF35.10-P-1001-01A	Hypoid gear oil	-		BB00.40-P-0235A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
