Check Engine Compartment Air Flap - AP20.00-P-2052GA
Engine 176 in model 463
as of model year 2019

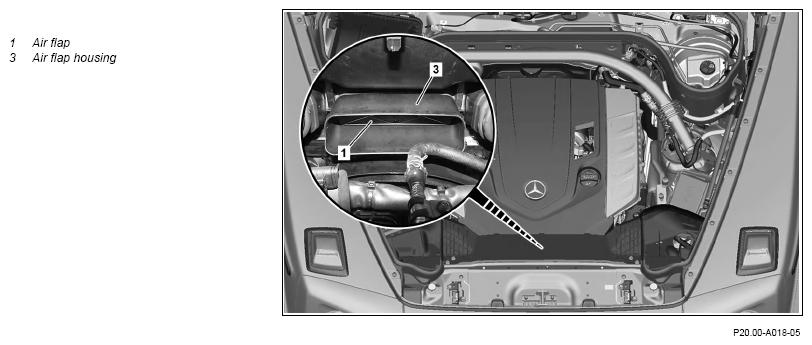

Fig 1: Engine Compartment Air Flap Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove | |||
| 1 |
Remove engine cover. | AR01.10-P-2405XGA | |
| Clean | |||
| 2 | Clean area around air flap housing (3). | ||
| Check | |||
| 3 | Check air flap (1) for proper operation by opening and closing. | If problems are determined, ↓ rectify the problems. |
|
| 4 | Check air flap housing (3) for damage, deformation and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| 5 | Check hood trim for damage, deformation and correct seating. | If problems are determined, ↓ rectify the problems. |
|
| Clean | |||

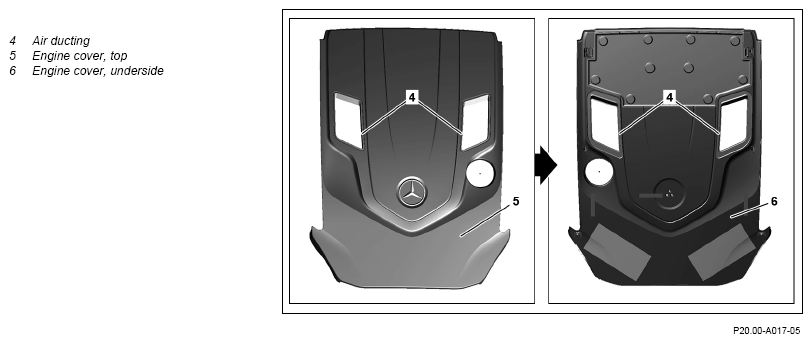

| 6 | Clean area around air duct segments (4) on upper side of engine cover (5) and lower side of engine cover (6). | ||
| Check | |||
| 7 | Check air duct segments (4) on upper side of engine cover (5) and lower side of engine cover (6) for damage. | If problems are determined, ↓ rectify the problems. |
|
| Install | |||
| 8 | Install engine cover. | ||
| AR01.10-P-2405XGA |
