Exterior Trim Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

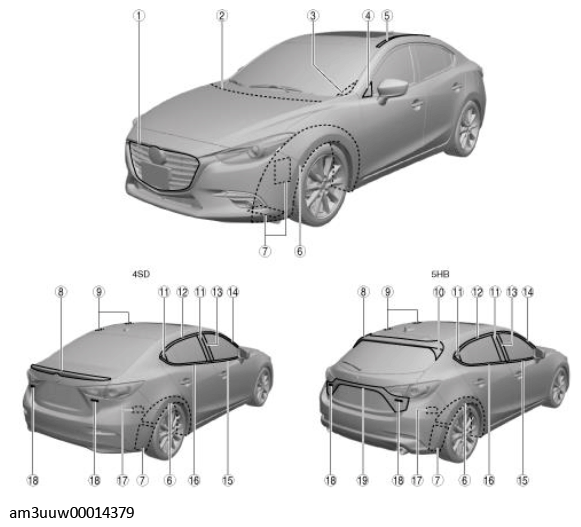

Fig 1: Exterior Trim Component Location (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION .) (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .)
2	Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
3	Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
4	Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
5	Roof molding (See ROOF MOLDING REMOVAL ) (See ROOF MOLDING INSTALLATION .)
6	Mudguard (See MUDGUARD REMOVAL/INSTALLATION .)
7	Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
8	Rear spoiler (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
9	Roof carrier bracket (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION .)
10	Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
11	Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
12	Rear sash molding (See REAR SASH MOLDING REMOVAL .) (See REAR SASH MOLDING INSTALLATION .)
13	Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)
14	Front sash molding (See FRONT SASH MOLDING REMOVAL .) (See FRONT SASH MOLDING INSTALLATION .)
15	Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
16	Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
17	Extractor chamber (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .)
18	Ornament (See ORNAMENT INSTALLATION .)
19	Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)

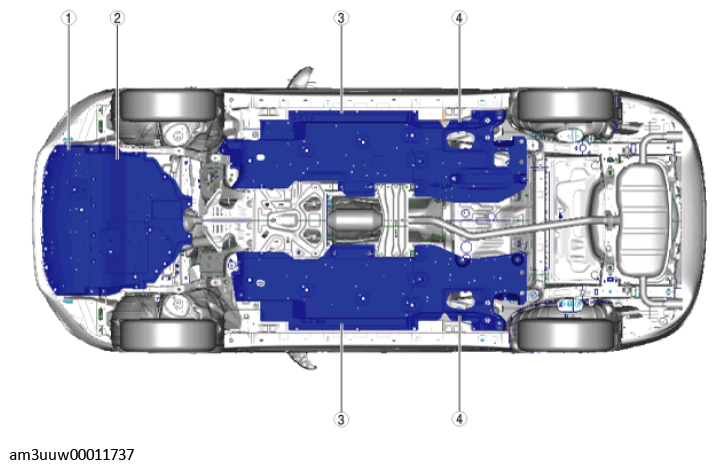

Fig 2: Exterior Trim Component Location (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front under cover No. 1 (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
2	Front under cover No. 2 (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
3	Floor under cover No. 2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
4	Floor under cover No. 1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
