Roof Carrier Bracket Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:

    Sedan (4SD)

    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    11. Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    12. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    13. Upper panel (See UPPER PANEL REMOVAL .)
    14. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    15. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    16. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    17. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    18. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    19. CD player (With CD player) (See CD PLAYER REMOVAL .)
    20. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    21. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    22. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    23. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    24. Set the selector lever component aside. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    25. Set the shift lever component aside. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    26. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
    27. Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

    Hatchback (5HB)

    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    11. Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    12. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    13. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    14. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    15. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    16. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    17. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    18. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    19. Upper panel (See UPPER PANEL REMOVAL .)
    20. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    21. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    22. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    23. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    24. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    25. CD player (With CD player) (See CD PLAYER REMOVAL .)
    26. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    27. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    28. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    29. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    30. Set the selector lever component aside. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    31. Set the shift lever component aside. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    32. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
    33. Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

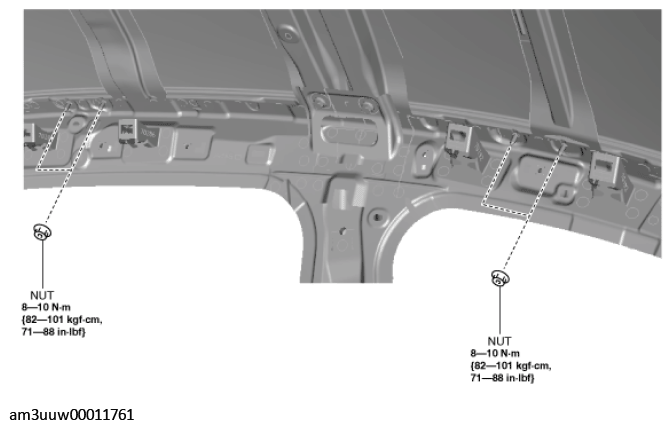

  3. Remove the nuts shown in the figure.
    Fig 1: Removing Nuts From Roof Carrier Bracket
    G11448950Courtesy of MAZDA MOTORS CORP.
  4. Remove the roof carrier brackets.
  5. Install in the reverse order of removal.

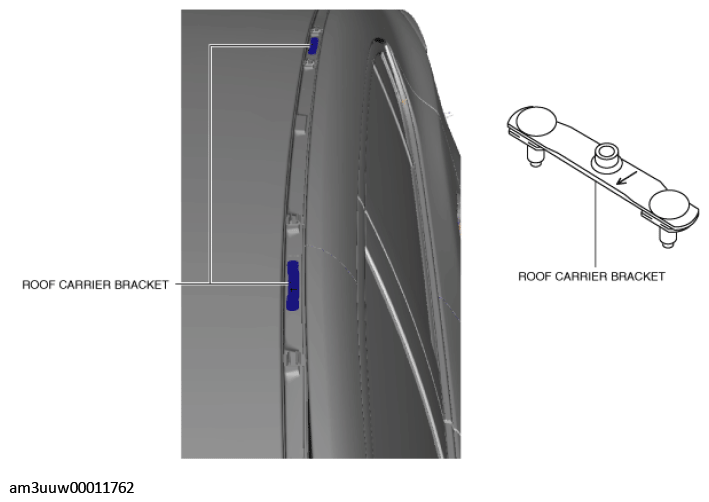

    NOTE:
    • Install the roof carrier brackets so that the arrow on it faces inward.
    Fig 2: Installing Roof Carrier Brackets
    G11448951Courtesy of MAZDA MOTORS CORP.
