Sail Garnish Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the front door glass.
Insert a remover tool, move it in the direction of the arrow shown in the figure, and remove the clip.

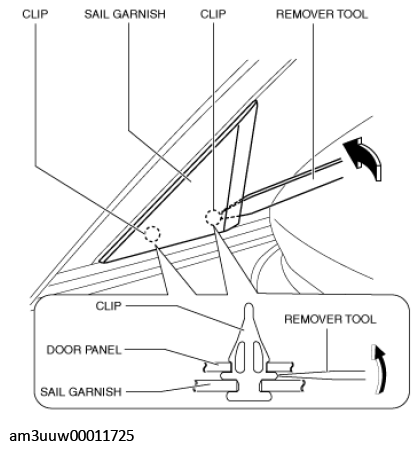

Fig 1: Inserting Remover Tool Between Door Panel And Sail Garnish
Courtesy of MAZDA MOTORS CORP.
Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the clips, and remove the sail garnish.

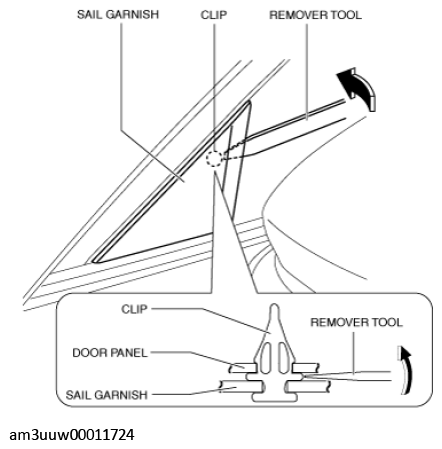

Fig 2: Removing Sail Garnish Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
