Rear Sash Molding Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

NOTE:

Double-sided adhesive tape has already been attached to the new rear sash molding.

Carefully remove the adhesive remaining on the body using a razor blade.
Remove any grease or dirt from the adhesion surface of the body.
Peel off the backing of the double-sided adhesive tape.
Hook the tab to the body in the position where the clip aligns with the sash hole.

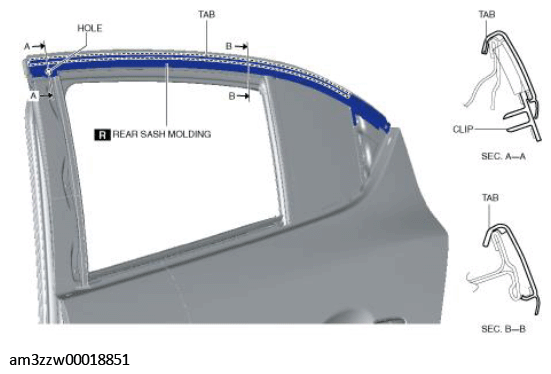

Fig 1: Locating Sash Hole On Rear Sash Molding
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not press the rear sash molding in any place other than the rubber areas.
Press the rear sash molding in the direction of the arrow and install the clip to the body.

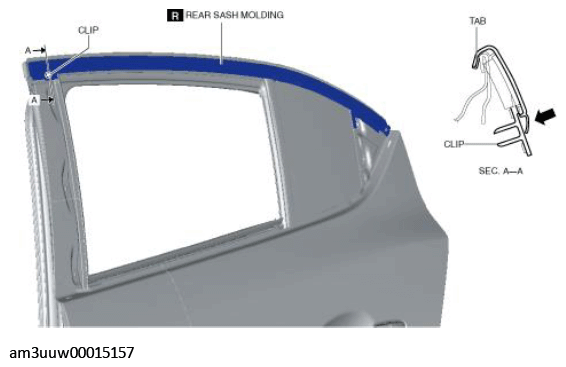

Fig 2: Pressing Rear Sash Molding
Courtesy of MAZDA MOTORS CORP.
Press the rear sash molding from the vehicle front in the direction of the arrow and install the tab.

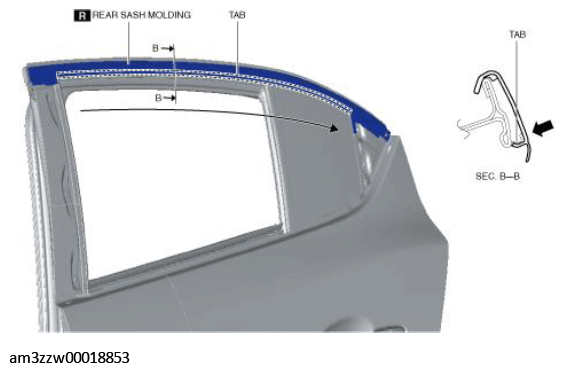

Fig 3: Pressing Rear Sash Molding From Vehicle Front
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After installing the rear sash molding, verify that the tabs are connected properly to the body.
Install the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
Install the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
