FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Remove the bolts and fasteners shown in the figure.

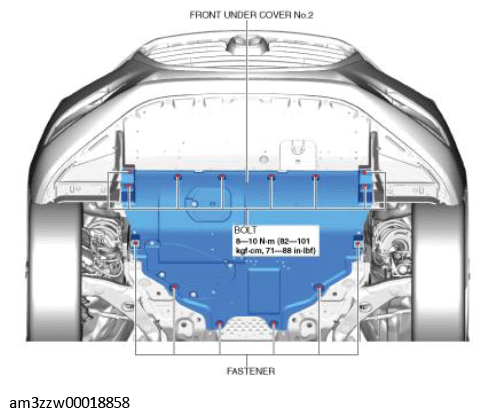

Fig 1: Locating Front Under Cover No. 2 Bolts And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the front under cover No. 2.
Install in the reverse order of removal.
