Front Fender Molding Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

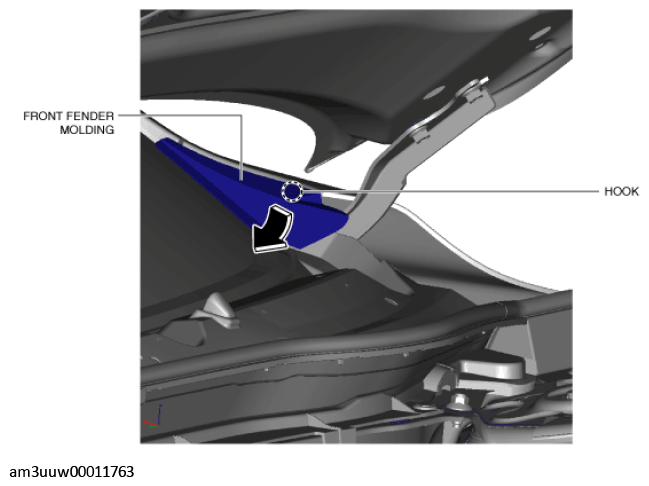

Pull the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.

Fig 1: Pulling Front Fender Molding
Courtesy of MAZDA MOTORS CORP.

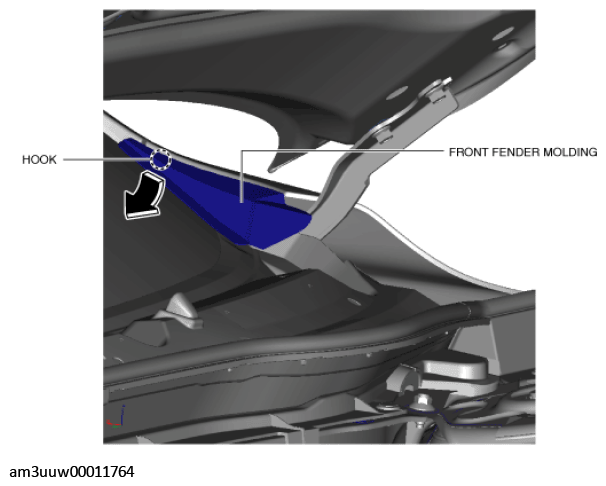

Move the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.

Fig 2: Moving Front Fender Molding
Courtesy of MAZDA MOTORS CORP.

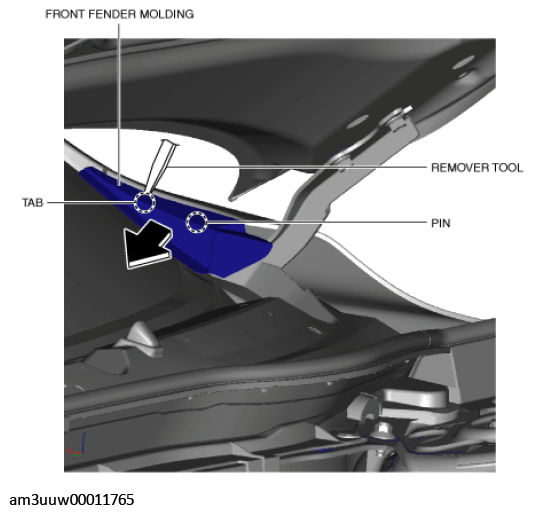

Remove the front fender molding while pulling it in the direction of the arrow shown in the figure.

Fig 3: Pulling Front Fender Molding Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
