Radiator Grille Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
3. Front turn light short cord (See FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION .)
Remove the fasteners.

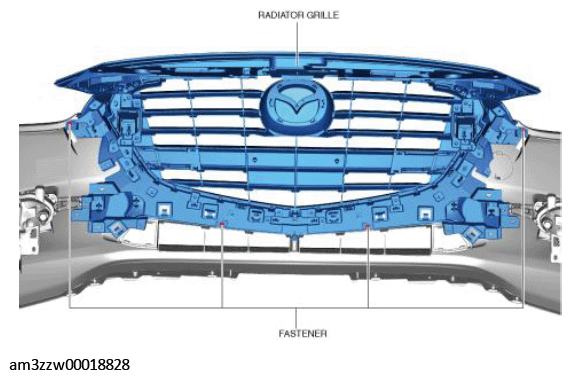

Fig 1: Radiator Grille Fasteners Location
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

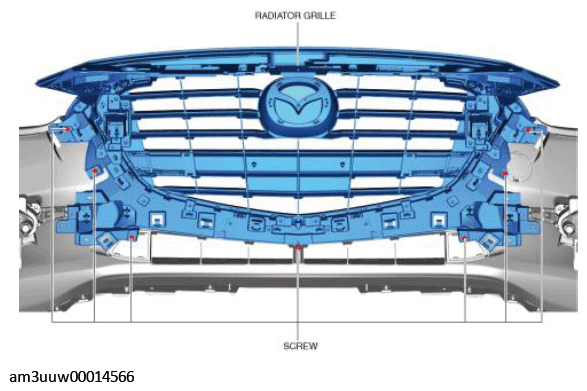

Fig 2: Locating Radiator Grille Screw
Courtesy of MAZDA MOTORS CORP.
Remove the radiator grille.
Install in the reverse order of removal.
