Front Sash Molding Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

NOTE:

Double-sided adhesive tape has already been attached to the new front sash molding.

Carefully remove the adhesive remaining on the body using a razor blade.
Remove any grease or dirt from the adhesion surface of the body.
Peel off the backing of the double-sided adhesive tape.
Hook the tabs to the body in the position where the clip aligns with the sash hole.

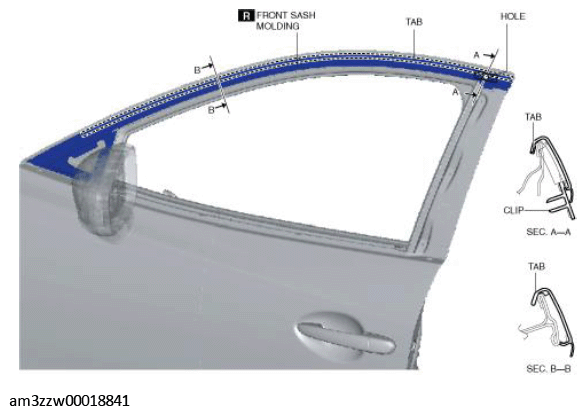

Fig 1: Locating Front Sash Molding Tab
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not press the front sash molding in any place other than the rubber areas.
Press the front sash molding in the direction of the arrow and install the clip to the body.

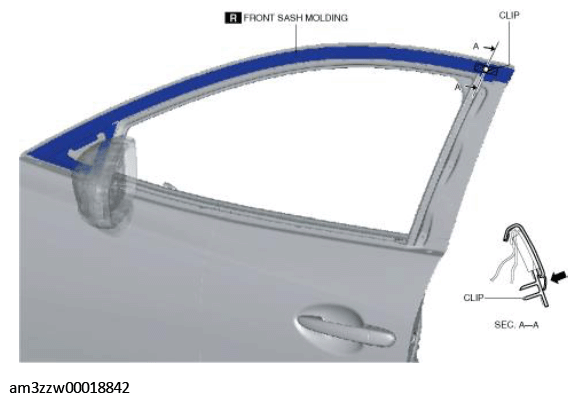

Fig 2: Pressing Front Sash Molding
Courtesy of MAZDA MOTORS CORP.
Press the front sash molding from the vehicle rear in the direction of the arrow and install the tab.

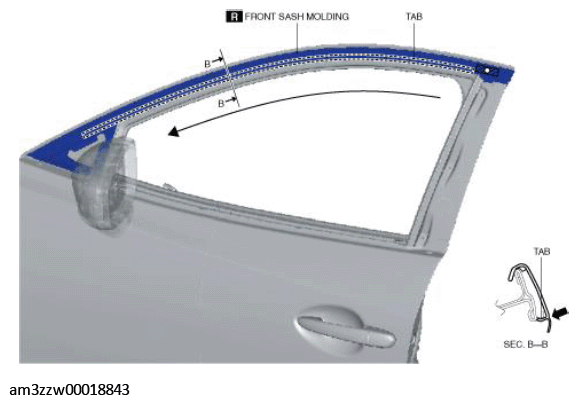

Fig 3: Pressing Front Sash Molding From Vehicle Rear
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After installing the front sash molding, verify that the tabs are connected properly to the body.
Install the following parts:
1. Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)
2. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
3. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
