Ornament Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the installation work for the ornament is performed without cleaning and degreasing the ornament installation surface, the ornament could fall off after installation. Before installing the ornament, clean and degrease the ornament and the ornament installation area.
  1. Degrease the adhesion area of the ornament.
  2. Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F} using a hot air drier.

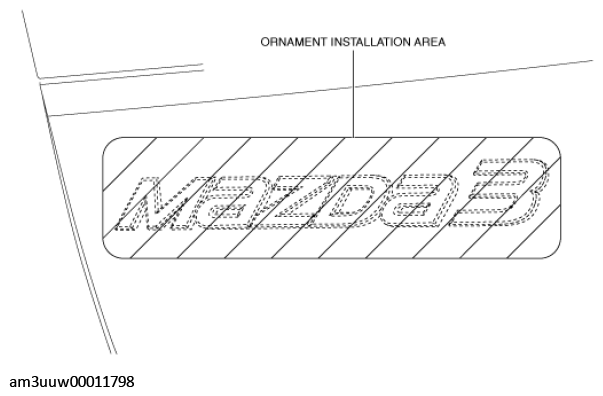

    Fig 1: Ornament Installation Area Location
    G11448900Courtesy of MAZDA MOTORS CORP.
  3. Install the ornament to the position shown in the figure.

    Sedan (4SD)

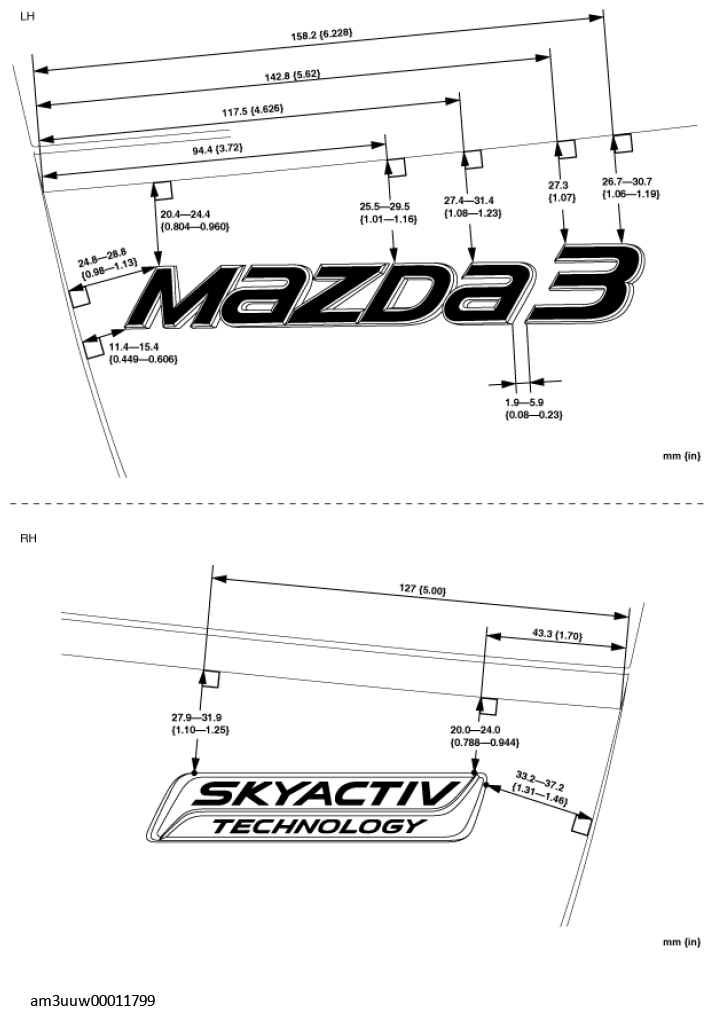

    Fig 2: Ornament Installation Area Location
    G11448901Courtesy of MAZDA MOTORS CORP.

    Hatchback (5HB)

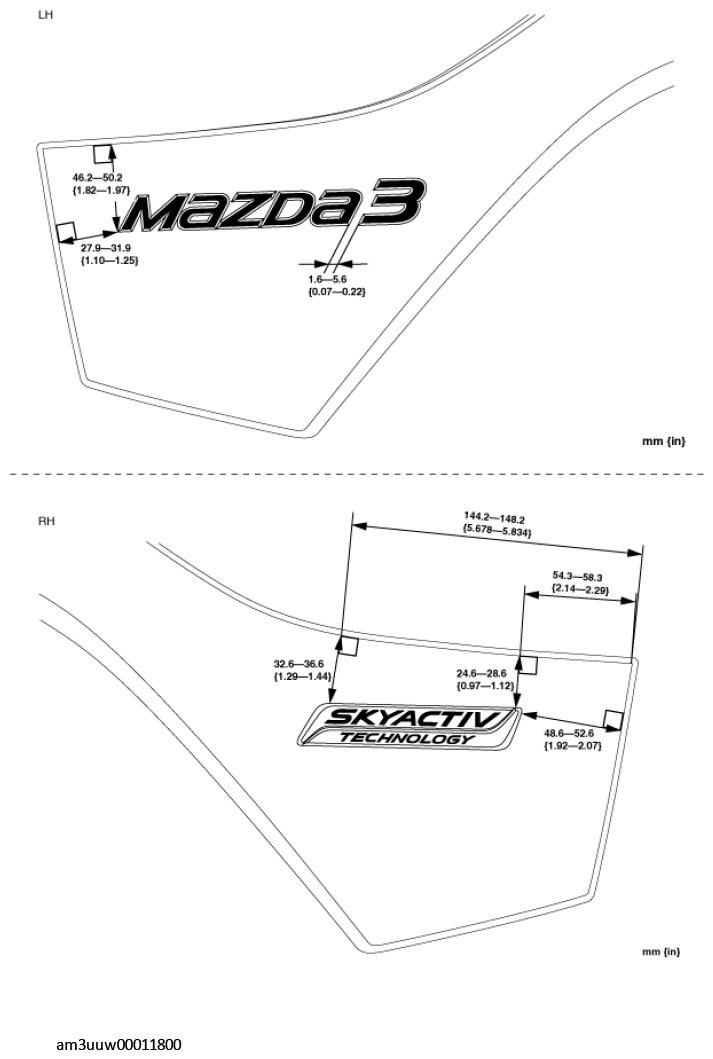

    Fig 3: Installing Ornament With Specific Dimensions (2 Of 2)
    G11448902Courtesy of MAZDA MOTORS CORP.
  4. Press the ornament to adhere the double-sided adhesive tape to the ornament installation area.
