FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

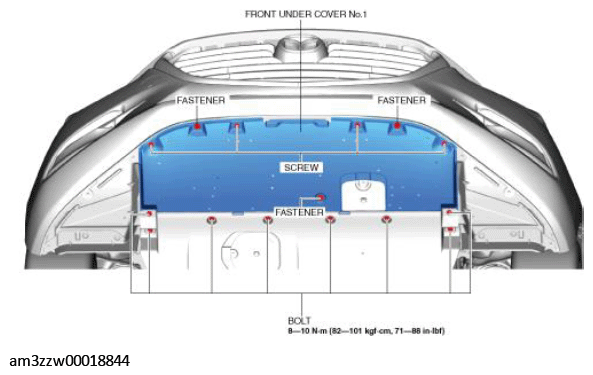

Remove the bolts, screws and fasteners shown in the figure.

Fig 1: Locating Screws, Bolts And Fasteners
Courtesy of MAZDA MOTORS CORP.

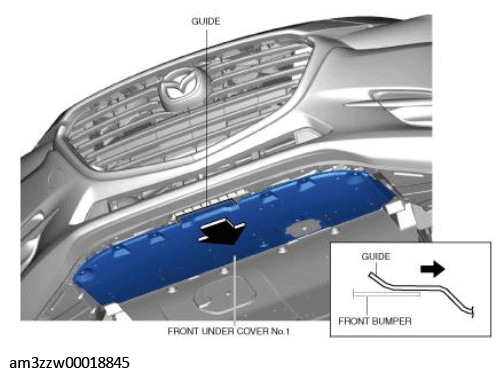

Remove the front under cover No. 1 in the direction of the arrow shown in the figure while detaching the guide.

Fig 2: Front Under Cover No. 1 Location
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
