Roof Molding Removal

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Insert a remover tool into the position shown in the figure.

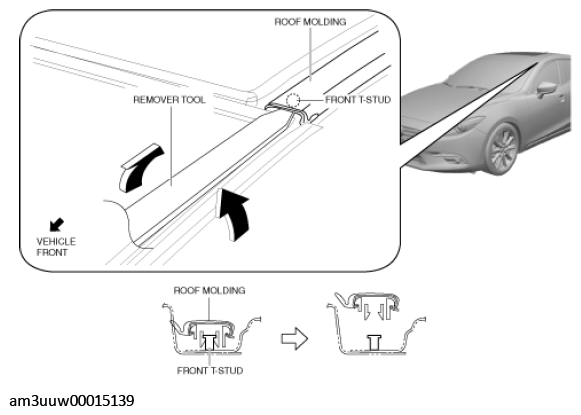

Fig 1: Placing Remover Tool On Roof Molding
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrows shown in the figure and detach the front T-stud from the roof molding.
Rotate the roof molding in the direction of arrows shown in the figure and remove it starting from the clips at the front of the vehicle.

Fig 2: Rotating Roof Molding
Courtesy of MAZDA MOTORS CORP.
Insert a remover tool in the position shown in the figure.

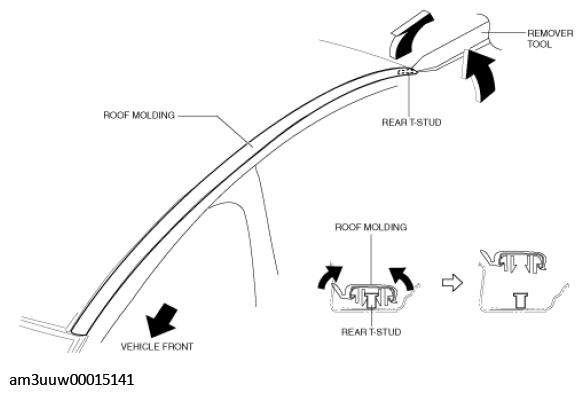

Fig 3: Locating Rear T-Stud On Roof Molding
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrows shown in the figure, detach the rear T-stud from the roof molding, and remove the roof molding.
