Side Spoiler Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Remove the rear spoiler. (See REAR SPOILER REMOVAL .)

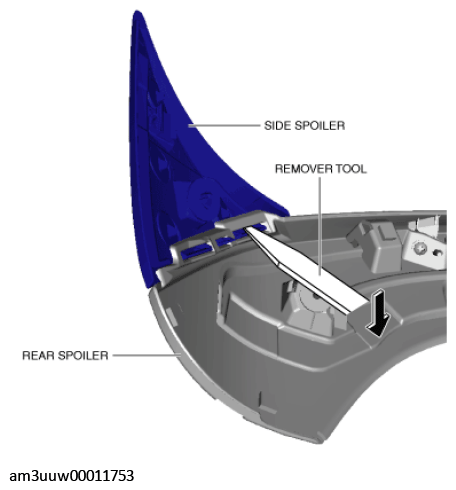

- Insert a remover tool into the position shown in the figure, move it in the direction of the arrow shown in the figure, and remove the side spoiler from the rear spoiler.
- Install in the reverse order of removal.
