Removal [10/2018 - 08/2021]: Procedure

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts and screws relevant to installing and removing the instrument panel are shown along with their alphabetic code in the table below.

    GTY800037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)

    Refer to CUSTOMIZE PARAMETERS [10/2018 - ]

  3. REMOVE STEERING WHEEL SWITCH HOUSING

    Refer to REMOVAL [10/2018 - 07/2022]

  4. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 20 [10/2018 - 10/2020] Refer to PROCEDURE - Step 20 [10/2020 - 07/2022]

  6. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 22 [10/2018 - 10/2020] Refer to PROCEDURE - Step 22 [10/2020 - 07/2022]

  8. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  9. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Disconnect the front door opening trim weatherstrip LH from the area shown in the illustration.
      GTY819410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INSTRUMENT SIDE PANEL LH
    1. Using a molding remover A, disengage the clips and guides to remove the instrument side panel LH as shown in the illustration.
      GTY832150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  11. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disengage the claw and guides to disconnect the hood lock control lever sub-assembly as shown in the illustration.
      GTY804440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE LOWER INSTRUMENT COVER
    1. Disengage the claws and hook to remove the lower instrument cover as shown in the illustration.
      GTY808741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Remove the screw<D>.
      GTY816972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the bolt<G>.
    3. Disengage the clips to remove the lower instrument panel finish panel sub-assembly as shown in the illustration.
    4. Disconnect the 2 connectors.
      GTY811005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a clip remover, disengage the wire harness clamp.
  14. REMOVE SPARE SWITCH HOLE COVER (w/o Combination Switch)
    1. Disengage the claws to remove the spare switch hole cover.
      GTY835134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/ Combination Switch)

    Refer to PROCEDURE - Step 5

  16. REMOVE FUEL LID OPENER SWITCH

    Refer to PROCEDURE - Step 6

  17. REMOVE FRONT LOWER PANEL BRACKET
    1. Remove the screw<D>.
      GTY811008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the front lower panel bracket.
  18. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 16

  19. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  20. REMOVE COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)

    Refer to PROCEDURE - Step 2

  21. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    1. Using a molding remover A, disengage the clips, claws and guides to remove the No. 1 defroster nozzle garnish as shown in the illustration.
      GTY784086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
    2. Disconnect the connector.
      GTY817780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

    Refer to PROCEDURE - Step 3

  23. REMOVE METER HOOD SUB-ASSEMBLY
    1. Disengage the clips and guides to remove the meter hood sub-assembly as shown in the illustration.
      GTY807798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector.
      GTY811006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE COMBINATION SWITCH ASSEMBLY (SATELLITE SWITCH SET)

    Refer to PROCEDURE - Step 2

  25. REMOVE VSC OFF SWITCH

    Refer to PROCEDURE - Step 2

  26. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 screws<D>.
      GTY811007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clips and claws to remove the instrument cluster finish panel sub-assembly.
  27. REMOVE INSTRUMENT CLUSTER FINISH PANEL CUSHION
    1. Disengage the claws and guides to remove the instrument cluster panel cushion.
      GTY819634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 6

  29. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Disengage the clips to remove the No. 1 instrument panel register assembly as shown in the illustration.
      GTY826875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the 2 connectors.
      GTY811012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE TRIP SWITCH

    Refer to PROCEDURE - Step 2

  31. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 screws<C>.
      GTY785207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips to remove the center cluster finish panel sub-assembly as shown in the illustration.
    3. Disconnect the 4 connectors.
      GTY811010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a clip remover, disengage the wire harness clamp.
  32. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 7

  33. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 2

  34. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 13 [10/2018 - 10/2019] Refer to PROCEDURE - Step 13 [10/2019 - 07/2022]

  35. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL
    1. for 10.3 Inch Display:
      1. Disengage the clips to remove the upper instrument cluster finish panel as shown in the illustration.
        GTY795380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    2. for 7 Inch Display:
      1. Disengage the clips to remove the upper instrument cluster finish panel as shown in the illustration.
        GTY822873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
  36. REMOVE UPPER INSTRUMENT CENTER CLUSTER FINISH PANEL
    1. Disengage the clips and guides to remove the upper instrument center cluster finish panel as shown in the illustration.
      GTY777529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  37. REMOVE MULTI-DISPLAY

    Refer to PROCEDURE - Step 5

  38. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH
    1. Pull up the front pillar garnish assembly LH to disengage the front pillar garnish clip and clip as shown in the illustration.
      GTY784348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull up
    2. Push the release lever and separate the front pillar garnish clip from the vehicle body as shown in the illustration.
      GTY794982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      NOTE:

      If the front pillar garnish clip has significant damage, replace it with a new one.

    3. When the front pillar garnish clip cannot be removed using your fingers:
      GTY826959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lift in this Direction
      1. While pressing the part shown in the illustration with your finger, move the front pillar garnish clip in the direction indicated by the arrow shown in the illustration.
      2. While pulling the front pillar garnish clip in the direction indicated by the arrow, push the part shown in the illustration with the end of a screwdriver and remove the front pillar garnish clip.
        GTY800010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
        NOTE:

        If the front pillar garnish clip has significant damage, replace it with a new one.

    4. Disengage the guides to remove the front pillar garnish assembly LH as shown in the illustration.
      GTY830201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Protect the curtain shield airbag assembly.
      GTY806646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Cover
      Adhesive Tape
      1. Completely cover the curtain shield airbag assembly with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish assembly LH is removed.

  39. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  40. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Disengage the clips, claws and guides to remove the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
      GTY835541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  41. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedure as for the No. 1 instrument panel speaker panel sub-assembly side.

  42. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

    HINT:

    Use the same procedure for both front No. 2 speaker assemblies.

    Refer to PROCEDURE - Step 4

  43. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
    1. Using a molding remover A, disengage the clips and claws to remove the No. 1 speaker opening cover assembly as shown in the illustration.
      GTY805187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  44. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (w/ Front Center Speaker)

    Refer to PROCEDURE - Step 6

  45. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

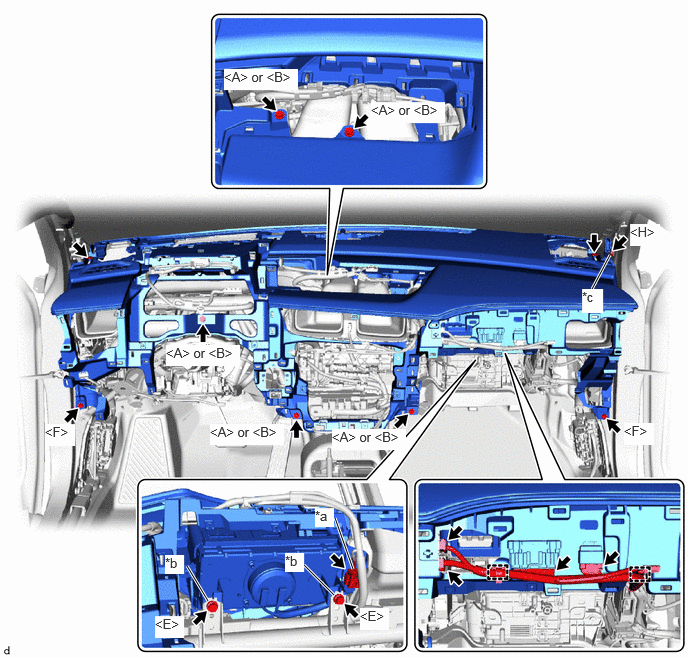

    1. Remove the 2 clips.
      GTY826218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider *b Airbag Bolt
      *c Ground Bolt - -
    2. Remove the 2 bolts<E>, 2 bolts<F> and bolt<H> as shown in the illustration.
    3. Remove the 5 screws<A> or <B> as shown in the illustration.
    4. Disconnect the 4 connectors.
    5. Using a clip remover, disengage the wire harness clamps.
    6. Slide the slider to disconnect the airbag connector.
    7. Disengage the guides to remove the instrument panel safety pad assembly as shown in the illustration.
      GTY836924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
