Home >> Lexus >> 2020 >> UX 200 Luxury >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) (2 Of 2) >> Roof Headlining >> Removal [10/2018 - 10/2020] >> Procedure

Removal [10/2018 - 10/2020]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE TONNEAU COVER ASSEMBLY
    1. Disengage the hooks to remove the tonneau cover assembly.
      GTY784484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE DECK BOARD ASSEMBLY (w/ Deck Floor Box)
    1. Disengage the hooks to remove the deck board assembly as shown in the illustration.
      GTY782066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Gasoline Model *B for HV Model
      Remove in this Direction - -
  5. REMOVE DECK BOARD ASSEMBLY (w/o Deck Floor Box)
    1. Disengage the hooks to remove the deck board assembly as shown in the illustration.
      GTY815618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Woofer *B w/ Woofer
      Remove in this Direction - -
  6. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  7. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY (w/ Deck Floor Box)
    1. Pull up the webbing to disengage the hook and guides to remove the No. 3 deck board sub-assembly as shown in the illustration.
      GTY774984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Woofer *B w/ Woofer
      *a Webbing *b Hook
      *c Guide - -
      Remove in this Direction (1) Remove in this Direction (2)
  8. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY (w/ Deck Floor Box)
    1. for Gasoline Model:
      GTY796179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Webbing
      *b Hook
      *c Guide
      Remove in this Direction (1)
      Remove in this Direction (2)
      1. Pull up the webbing to disengage the hook and guides to remove the No. 2 deck board sub-assembly as shown in the illustration.
    2. for HV Model:
      GTY790055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Webbing
      *b Hook
      Remove in this Direction
      1. Pull up the webbing and disengage the hook as shown in the illustration.
      2. Disengage the clip and guide to remove the No. 2 deck board sub-assembly as shown in the illustration.
        GTY834537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction (1)
        Remove in this Direction (2)
  9. REMOVE NO. 1 DECK BOARD (w/ Deck Floor Box)
    1. Disengage the clips to remove the No. 1 deck board as shown in the illustration.
      GTY828866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE DECK BOARD SUB-ASSEMBLY (w/ Deck Floor Box)
    1. Disengage the clips to remove the deck board sub-assembly as shown in the illustration.
      GTY779696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE REAR DECK FLOOR BOX (w/ Deck Floor Box)
    1. for Gasoline Model:

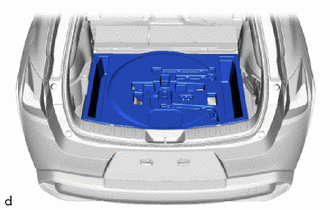

      GTY784473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear deck floor box.
    2. for HV Model 2WD:

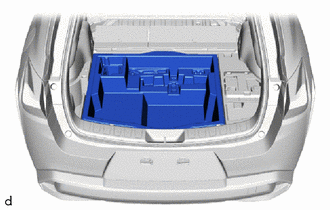

      GTY792012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear deck floor box.
    3. for AWD:

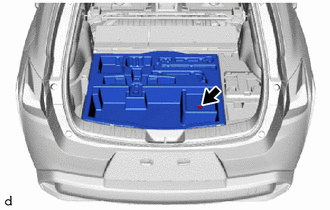

      GTY784475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip.
      2. Remove the rear deck floor box.
  12. REMOVE DECK FLOOR BOX LH (w/ Deck Floor Box)
    1. w/o Woofer:
      GTY784476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip.
      2. Disengage the clips and guide to remove the deck floor box LH as shown in the illustration.
        GTY814501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    2. GTY783921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      w/ Woofer:

      1. Disengage the clips to remove the deck floor box LH as shown in the illustration.
  13. REMOVE LUGGAGE COMPARTMENT TRIM BOX (for HV Model)
    1. Disengage the clips and guides to remove the luggage compartment trim box as shown in the illustration.

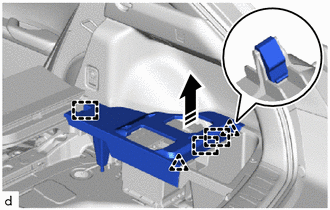

      GTY809563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE DECK FLOOR BOX RH (w/ Deck Floor Box)
    1. for Gasoline Model:
      GTY784564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip.
      2. Disengage the clips and guide to remove the deck floor box RH as shown in the illustration.
        GTY822531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    2. for HV Model:
      GTY784565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip.
      2. Disengage the clip and guide to remove the deck floor box RH as shown in the illustration.
        GTY829429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
  15. REMOVE DECK SIDE TRIM BOX LH (w/o Deck Floor Box)
    1. Remove the deck side trim box LH.
      GTY832022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Woofer *B w/ Woofer
  16. REMOVE DECK SIDE TRIM BOX RH (w/o Deck Floor Box)
    1. Remove the deck side trim box RH.
      GTY829325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE LUGGAGE ROOM REAR COVER (for AWD)

    Refer to PROCEDURE - Step 5

  18. REMOVE FRONT DECK FLOOR BOX (w/ Deck Floor Box)
    1. Remove the 2 bolts and front deck floor box.
      GTY784570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT DECK FLOOR BOX (w/o Deck Floor Box)
    1. Disengage the clips and guides to remove the front deck floor box as shown in the illustration.
      GTY778770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the claws and guides to remove the front door scuff plate LH as shown in the illustration.
      GTY966267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A *B for Type B
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  21. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip.
      GTY807777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the clips to remove the cowl side trim sub-assembly LH as shown in the illustration.
  23. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  25. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  26. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 38

  27. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  28. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the claws and guides to remove the rear door scuff plate LH as shown in the illustration.
      GTY781771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Gasoline Model *B for HV Model
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  29. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  30. REMOVE REAR UNDER SIDE COVER LH (for HV Model)
    1. Remove the 2 clips.
      GTY775611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips, claw and guide to remove the rear under side cover LH as shown in the illustration.
  31. REMOVE REAR UNDER SIDE COVER RH (for HV Model)

    HINT:

    Use the same procedure as for the LH side.

  32. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  33. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE REAR PILLAR COVER LH
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws and guides to remove the rear pillar cover LH as shown in the illustration.
      GTY796217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
  35. REMOVE REAR PILLAR COVER RH

    HINT:

    Use the same procedure as for the LH side.

  36. REMOVE REAR SEAT SIDE GARNISH LH
    1. Remove the 2 bolts.
      GTY784549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clips, guides and claw to remove the rear seat side garnish LH with rear seat airbag assembly as shown in the illustration.
      GTY804409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    3. Disengage the clamp.
      GTY808298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    4. Using a screwdriver with its tip wrapped in protective tape, pull out the locking button to release the lock to disconnect the airbag connector as shown in the illustration.
  37. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  38. REMOVE LAP BELT OUTER ANCHOR COVER

    Refer to PROCEDURE - Step 9

    HINT:

    Use the same procedures for the opposite side.

  39. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  40. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  41. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the claws and clips to remove the center pillar lower garnish LH as shown in the illustration.
      GTY824855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  42. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  43. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH
    1. Remove the 2 clips.
      GTY818186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the clip and guides to remove the center pillar garnish assembly LH as shown in the illustration.
    3. Pass the floor anchor of the front seat outer belt assembly LH through the center pillar garnish assembly LH to remove the center pillar garnish assembly LH.
    4. When reusing the center pillar garnish assembly LH:
      1. Remove the clip from the center pillar garnish assembly LH.
  44. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  45. REMOVE DECK TRIM REAR COVER
    1. Disengage the claws, clips and guides to remove the deck trim rear cover as shown in the illustration.
      GTY792956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Deck Floor Box *B w/ Deck Floor Box
      Place Hands Here Remove in this Direction
  46. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

    HINT:

    Use the same procedures for the opposite side.

  47. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    HINT:

    Use the same procedures for the opposite side.

    1. Remove the bolt and disengage the hook to remove the luggage hold belt striker assembly.
      GTY829344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE ROPE HOOK ASSEMBLY

    HINT:

    Use the same procedures for the opposite side.

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claws to open the cover.
      GTY780420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Remove the bolt and rope hook assembly.
  49. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Rotate the No. 2 deck side trim hook by 90° as shown in the illustration.
      GTY805712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert a screwdriver with its tip wrapped in protective tape and press until a "click" sound is heard to disengage the claws of the No. 2 deck side trim hook as shown in the illustration.
      GTY813124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b Protective Tape
      *c Press Point *d Claw of No. 2 Deck Side Trim Hook
    3. Remove the screw.
      GTY805223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Disengage the clips and claws to remove the deck trim side panel assembly LH as shown in the illustration.
    5. Disconnect the connector.
  50. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    1. Rotate the No. 1 deck side trim hook by 90°.
    2. Insert a screwdriver with its tip wrapped in protective tape and press until a "click" sound is heard to disengage the claws of the No. 1 deck side trim hook.
    3. Remove the screw.
    4. Disengage the clips and claws to remove the deck trim side panel assembly RH.
  51. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  52. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  53. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the claws and guides to remove the belt guide as shown in the illustration.
      GTY838483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips to remove the roof side inner garnish assembly LH as shown in the illustration.
      GTY821656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Pass the floor anchor of the rear seat outer belt assembly LH through the roof side inner garnish assembly LH and remove the roof side inner garnish assembly LH.
    4. When reusing the roof side inner garnish assembly LH:
      1. Remove the 6 clips from the roof side inner garnish assembly LH.
  54. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  55. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  56. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1

  57. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2

  58. REMOVE VANITY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

    HINT:

    Use the same procedures for the opposite side.

  59. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  60. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  61. REMOVE VISOR BRACKET COVER

    Refer to PROCEDURE - Step 1

    HINT:

    Use the same procedures for the opposite side.

  62. REMOVE VISOR ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  63. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  64. REMOVE VISOR HOLDER

    HINT:

    Use the same procedures for the opposite side.

    1. Turn the visor holder clockwise approximately 45° and pull it out as shown in the illustration.
      GTY814516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction
      Remove in this Direction
    2. Disengage the claws to remove the base as shown in the illustration.
      GTY783868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  65. REMOVE ASSIST GRIP COVER

    HINT:

    Use the same procedure for all assist grip assemblies.

    1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
      • SST: 09813-00010
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

      GTY777629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
    2. Pull SST as shown in the illustration to disengage the claw.
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

      GTY795164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction
    3. Remove the assist grip cover.

      HINT:

      Use the same procedures for the opposite side.

  66. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedures for the opposite side.

    1. Disengage the clips to remove the assist grip sub-assembly as shown in the illustration.
      GTY833829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the 2 clips from the vehicle body.
      GTY800891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE REAR ASSIST GRIP ASSEMBLY LH

    HINT:

    Use the same procedure as for the assist grip sub-assembly.

  68. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the assist grip sub-assembly.

  69. REMOVE ROOF HEADLINING SERVICE HOLE COVER

    HINT:

    Use the same procedures for the opposite side.

    1. Disengage the claws to remove the roof headlining service hole cover as shown in the illustration.
      GTY818721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  70. REMOVE ROOF HEADLINING ASSEMBLY
    1. for Front Pillar LH Side:
      GTY832903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect each connector.
      2. Using a clip remover, disengage the clamps.
    2. for Front Pillar RH Side:
      GTY800890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect each connector.
      2. Using a clip remover, disengage the clamps.
    3. for Rear Pillar RH Side:
      GTY800888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect each connector.
      2. Using a clip remover, disengage the clamp.
    4. for Windshield Glass Side:
      GTY789255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ EC Mirror
      *B w/ Rain Sensor
      1. Disconnect each connector.
    5. w/o Sliding Roof:
      1. Disengage the clips to remove the roof headlining assembly as shown in the illustration.
        GTY807955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction - -
    6. w/ Sliding Roof:
      1. Disconnect the connector.
        GTY801030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clips, fasteners and guide to remove the roof headlining assembly as shown in the illustration.
        GTY787565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Guide *b Fastener
        Remove in this Direction (1) Remove in this Direction (2)
    7. Turn the roof headlining assembly diagonally and bend slightly to remove it from the back door.
      NOTE:
      • Make sure that wrinkles do not form in the roof headlining assembly during removal.
      • Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.
      • Do not damage the roof headlining assembly or vehicle interior.
      GTY780425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
scientia non olet · About LEMON Manuals
