Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE TRIP SWITCH

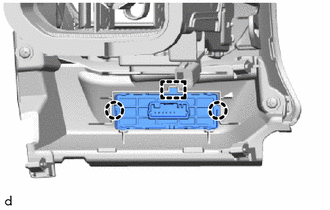

    1. Disengage the claws and guide to remove the trip switch.
      GTY812353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
