Removal [10/2019 - 07/2022]: Procedure

  1. PRECAUTION
    NOTE:
    • After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

      Refer to INITIALIZATION [10/2018 - 07/2022]

    • When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur.

      Refer to PRECAUTION [10/2019 - 07/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2018 - 07/2022]

  3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 6

  5. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE LOWER INSTRUMENT CENTER COVER

    Refer to PROCEDURE - Step 14

  9. REMOVE LOWER INSTRUMENT PANEL FINISH CENTER PANEL

    Refer to PROCEDURE - Step 15

  10. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH

    Refer to PROCEDURE - Step 21 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 07/2022]

  11. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 23 [08/2021 - 07/2022]

  12. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 31 [08/2021 - 07/2022]

  13. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

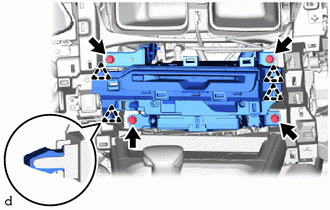

    1. Remove the 4 bolts.
      GTY803888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the radio receiver assembly with bracket toward the rear of the vehicle to disengage the clips.

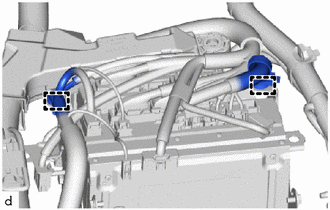

    3. Disengage the clamps.
      GTY803887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector and remove the radio receiver assembly with bracket.
  14. REMOVE TELEPHONE ECU WIRE (w/ Roof Antenna)

    Refer to PROCEDURE - Step 3

  15. REMOVE NO. 1 NAVIGATION WIRE (w/ Navigation System)

    Refer to PROCEDURE - Step 4

  16. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Roof Antenna)

    Refer to PROCEDURE - Step 4

  17. REMOVE NO. 1 RADIO BRACKET (w/o Navigation System)

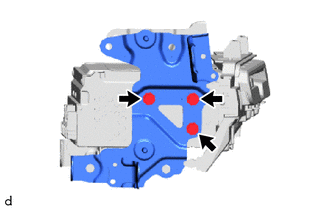

    1. Remove the 3 bolts and No. 1 radio bracket from the radio receiver assembly.
      GTY825413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 RADIO BRACKET (w/ Navigation System)

    Refer to PROCEDURE - Step 6

  19. REMOVE NO. 2 RADIO BRACKET (w/o Navigation System)

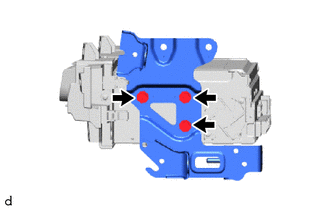

    1. Remove the 3 bolts and No. 2 radio bracket from the radio receiver assembly.
      GTY825412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 2 RADIO BRACKET (w/ Navigation System)

    Refer to PROCEDURE - Step 7
