Removal [10/2018 - ]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [10/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 07/2022] , or refer to REMOVAL [07/2022 - ]

  2. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

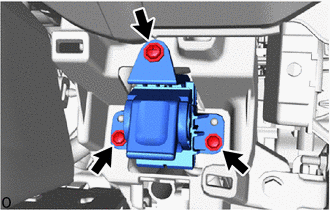

    1. Remove the 3 screws.
      GTY821908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the electric parking brake switch assembly.
