Removal [10/2018 - 07/2022]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 07/2022]

  2. REMOVE INSTRUMENT SIDE PANEL RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 10 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 07/2022]

  3. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  4. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH

    Refer to PROCEDURE - Step 21 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - 07/2022]

  5. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 23 [08/2021 - 07/2022]

  6. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 31 [08/2021 - 07/2022]

  7. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

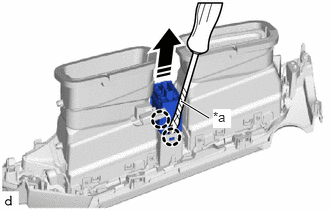

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove hazard warning signal switch assembly as shown in the illustration.
      GTY832740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
